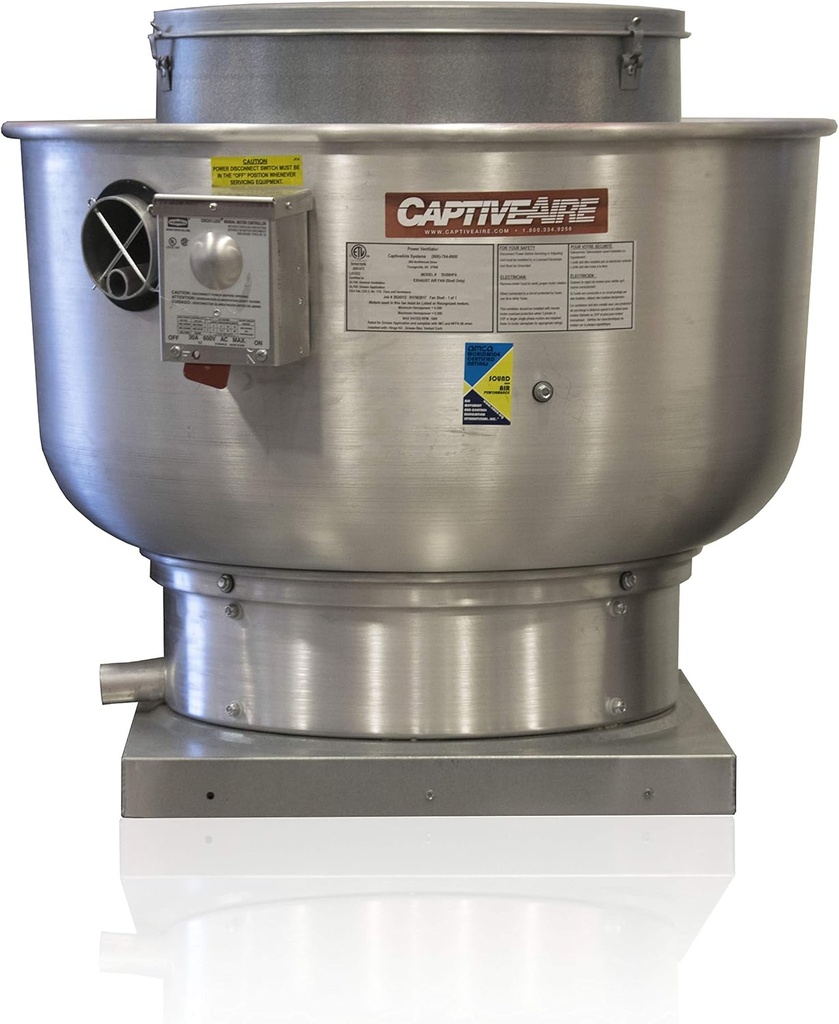

CAPTIVE-AIRE Restaurant Canopy Hood Grease Rated Exhaust Fan- Direct Drive Centrifugal Upblast Exhaust Fan- 28" Fan Base, 208 Volt Three Phase Motor 3000 CFM (DU180HFA)

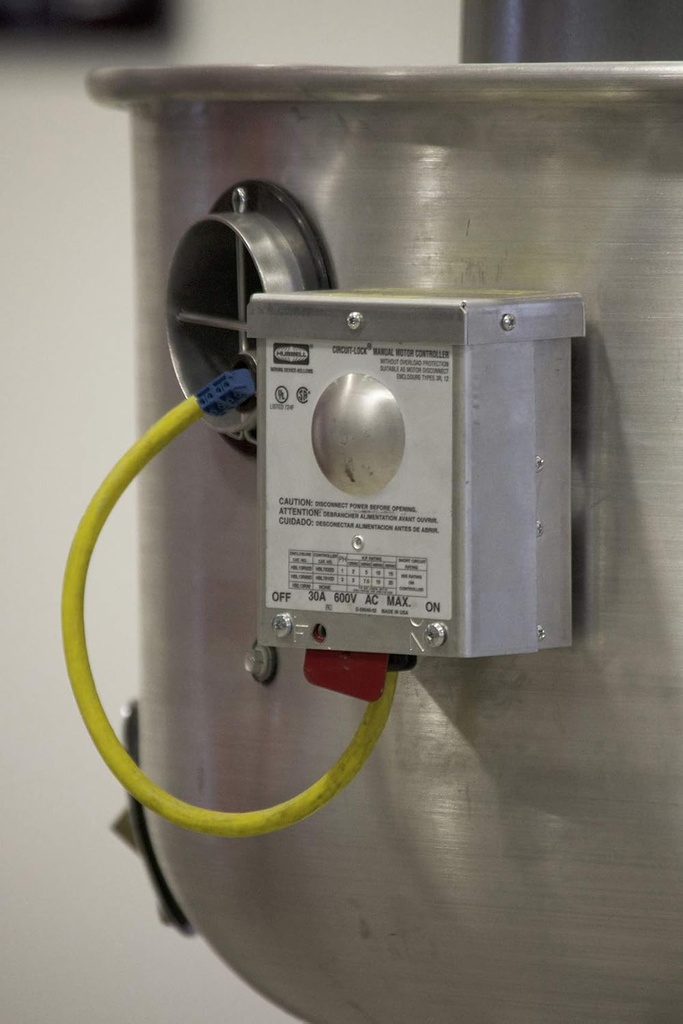

High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control (three phase), disconnect switch and 18-3/4" wheel.
Exhaust Fan handles 3000 CFM @ -1.000" wc ESP, Fan runs at 1183 RPM
28" x 28" Fan Base Dimension/ 181 LBs/ 3000 CFM/ 1.5 HP 208 volt Three Phase Motor.
Rated for restaurant grease and general ventilation applications. UL705, UL762, & ULC-S645 Rated. Included with the exhaust fan is a restaurant duty grease cup, down spout, and a hinge kit for exhaust fan roof curbs.
Includes Variable Frequency Drive (VFD) – Factory mounted, wired and programmed. Benefits of Direct Drive Fans with VFD include – Fan speed control for balancing, soft start for increased motor life, reduced maintenance and failure potential due to elimination of belts, pulleys and bearings.
As all fans are custom built, no returns or exchanges are accepted.
