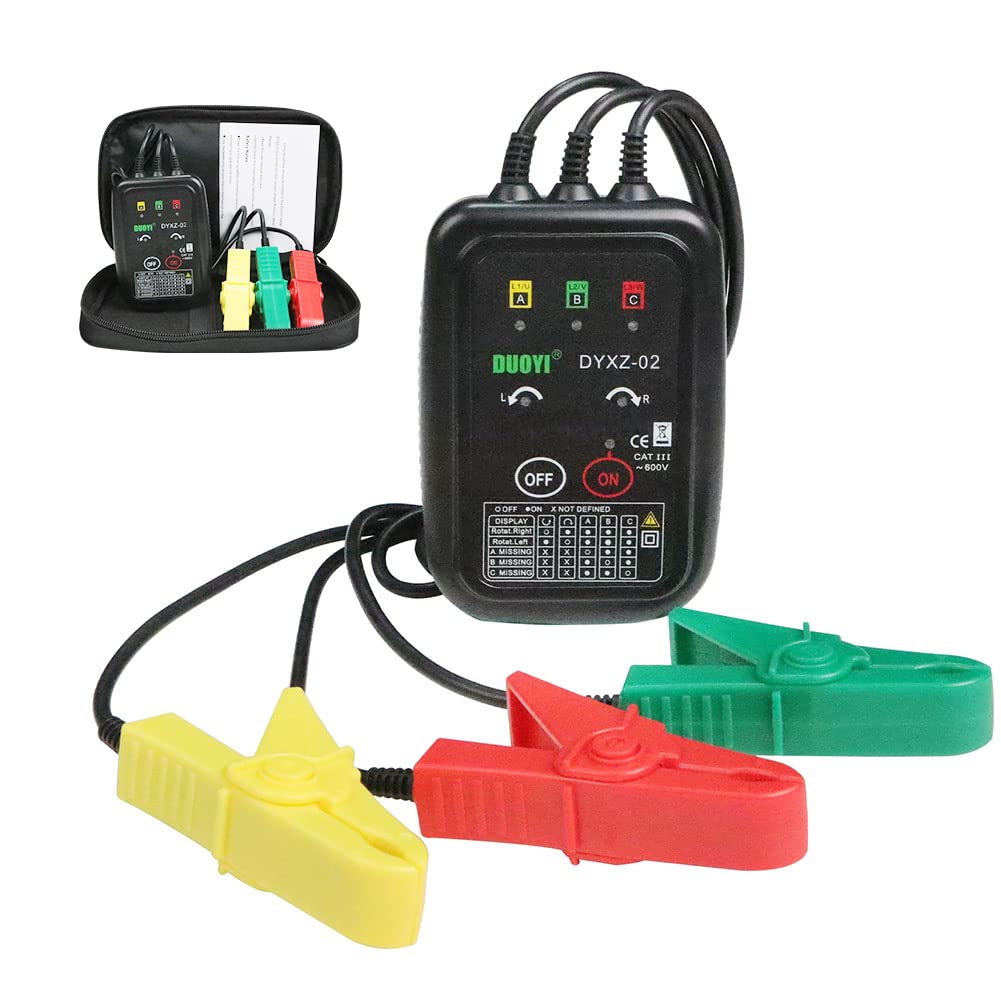

Phase Rotation Meter 3 Phase Sequence & Motor Rotation Tester
- 【Multifunctional Non-Contact Phase Sequence Detector】The 3 phase tester is designed to detect the three-phase sequence in motor installation and maintenance, which is fast, simple and accurate. It has multi-functions such as phase sequence inspection, phaseloss judgment, short circuit search, voltage detection, live wire inspection, motor steering detection, etc. It is small in size and light in weight, and is a good helper for easy motor detection.
- 【Non-Contact Inductive Measurement】The 3 phase rotation tester is different from the traditional phase sequence detection method,it adopts a clamp-shaped non-contact inductive measurement,and no need to open the wire, just clamp the three super-induction and high-insulation clamps on the insulation sheath of the three-phase live wire to detect the phase sequence,avoiding contact with the high-voltage bare live wire, which greatly improves the personal safety of the operator.
- 【Phase Sequence/Phaseloss Detection】The non-contact phase sequence detector can detect the phase sequence status (positive phase sequence/negative phase sequence) of the three-phase power supply and judge the phaseloss. When the A, B and C phase indicators are all on, the R indicator light is on to indicate positive phase, the L indicator light is on for negative phase, and when any of the three phases is missing, the corresponding indicator light is not on.
- 【Live Wire Inspection & Line Maintenance】The non-contact phase meter can detect whether the wire is live, clamp any one of the three-color induction clamps to the wire to be detected, if the wire under test is energized (in the live wire voltage setting Within the range of AC70~600V), the corresponding A, B, C phase indicator lights will be on. On the contrary, if the tested wire is lack of power, the A, B, and C phase indicator lights will not be on.
- 【Motor Steering Detection & Short Circuit Search】The motor rotation indicator can detect the steering of the motor. Just place the meter on the motor and parallel to the motor rotation axis to test the steering of the motor. In addition, the phase meter can also judge whether there is a fault in the line, and quickly find the location of the disconnection, thus helping you to repair the line quickly and easily.
- 【Auto Shutdown Protection & Equipped With Easy-To-Carry Carrying Bag】When the non-contact phase sequence detector is in idle state,the instrument will automatically shut down (automatically shut down after 5 minutes of no operation) to save power for you and prolong the life of the battery. In addition,the phase sequence detector is equipped with a high-quality black handbag,which can be put into the handbag after use,which is convenient for carrying and storage.
| Compatible Devices | Motors, Three-phase electrical systems, generators, and other heavy-duty electrical equipment |
| Manufacturer | DUOYI |
| Brand | DUOYI |
| UPC | 661706276757 |
| Number of Items | 1 |
| Included Components | No |
| Power Source | Battery Powered |
| Colour | Black |
| Style | XZ-01 |
| Item Weight | 16 Ounces |
| Number of Packs | 1 |
| Part Number | Phase Meter-0102 |
| Model | Phase Meter-0102 |
| Measurement Type | Voltmeter |
| Style Name | XZ-01 |
| Item Highlight | Carrying Bag, Non Contact Voltage Tester Short Detection 70V~600V AC Live Wire Inspection, with 23.62inch Cable Length |
| Product Type | Multi Testers |
| Minimum Operating Voltage | 70 volts_of_alternating_current |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
Estimate delivery times: 12-26 days (International).
3-6 days (Domestic)
3-6 days (Domestic)
Guaranteed Safe Checkout
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
Confidence-backed purchases with 30-day return support.
Free return pickup available
We’ll handle returns from your doorstep at no extra cost.
USD |
BRSW2AIPCQMQAYLJ |
Category |
Electrical , Testers , Multi Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.The DUOYI Phase Rotation Meter is a versatile tool designed to simplify the inspection and maintenance of three-phase electrical systems. This non-contact tester offers a safer and more efficient way to diagnose motor issues and ensure proper wiring configurations.
Key Highlights
- Fast & Accurate Sequence Detection: Quickly identifies the three-phase sequence for efficient motor installation and troubleshooting.
- Non-Contact Measurement: Measures phase sequence without needing to open wires, enhancing safety.
- Multiple Functionality: Performs phase loss judgment, short circuit search, voltage detection, and motor steering detection.
- Compact & Portable: Lightweight design (16 ounces) with a 23.62-inch cable for easy transport and use.
- Live Wire Inspection: Detects live wires safely, minimizing contact with high-voltage components.
Useful Facts
- Brand: DUOYI
- Power: Battery Powered
- Style: XZ-01
- Colour: Black
- Voltage Range: Operates on 70 volts AC and above.
- Compatible Systems: Suitable for three-phase electrical systems, motors, generators, and heavy-duty electrical equipment.
Good Fit For
- Electricians
- Maintenance Technicians
- DIY Electrical Enthusiasts
- Anyone working with three-phase electrical systems.
