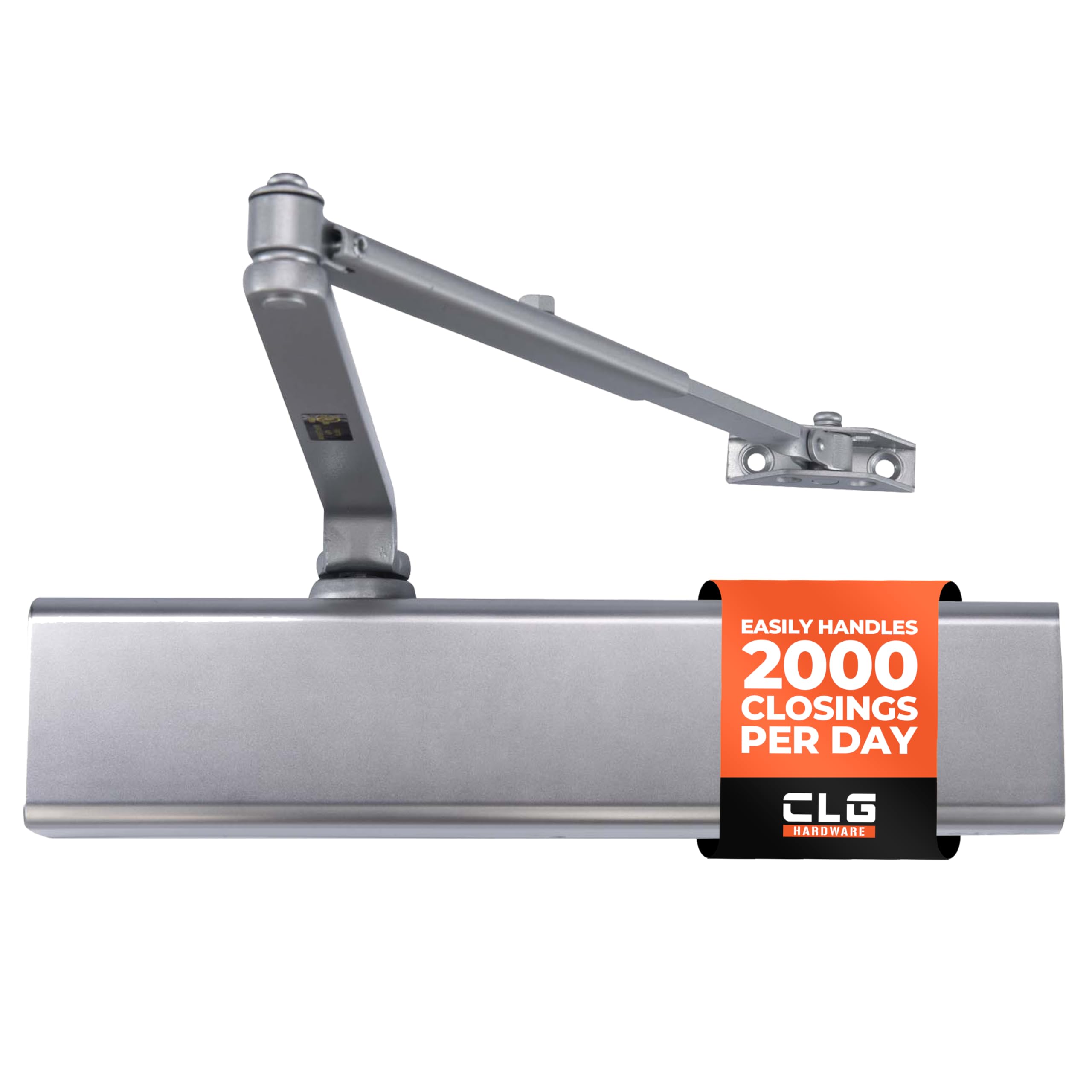

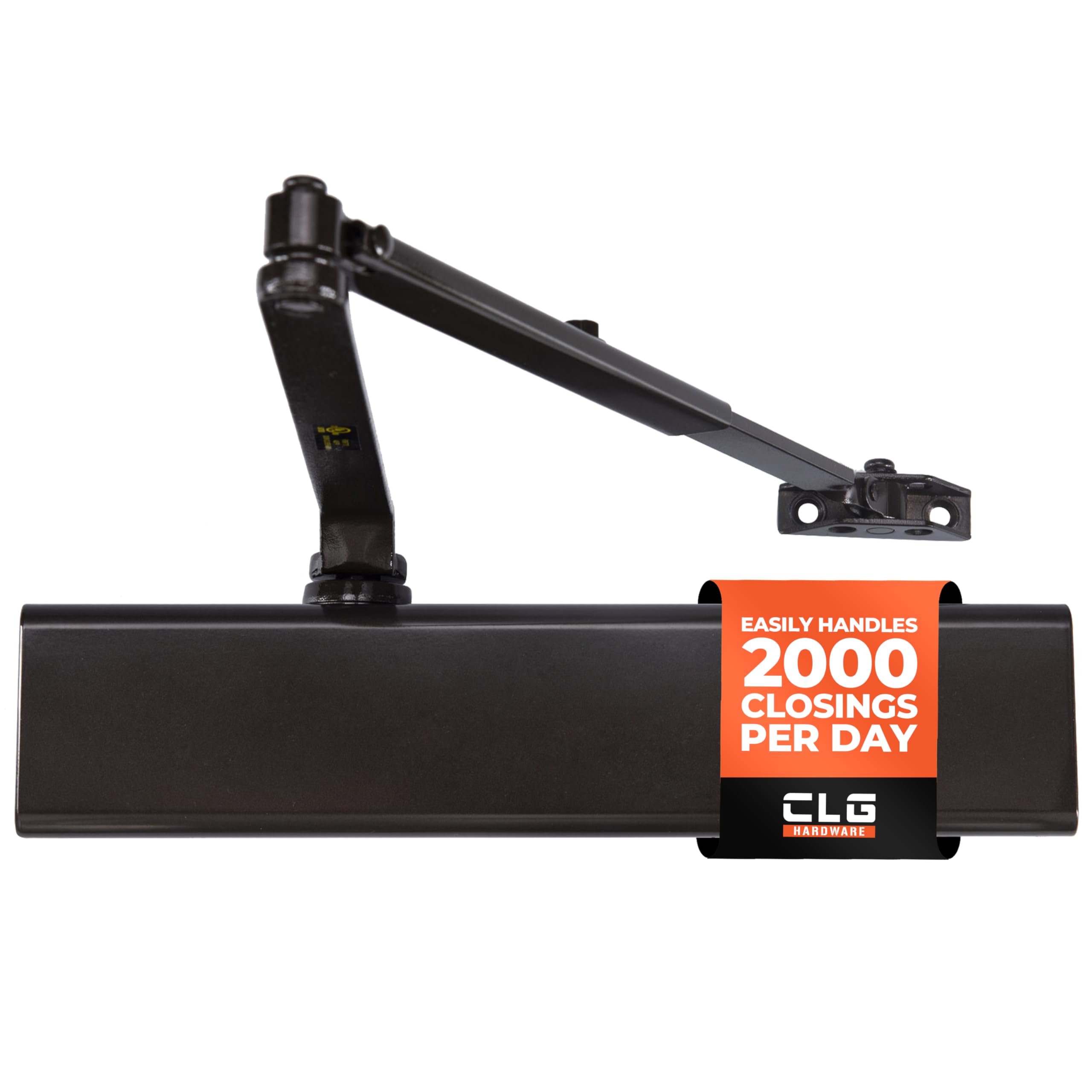

CLG HARDWARE Heavy Duty Commercial Automatic Door Closer w/- Closing Delay
- PREMIUM COMMERCIAL-GRADE PERFORMANCE: Made with a powder-coated cast aluminum body, wrought steel arm, and heat-treated piston, this commercial door closer ensures durability, reliability, and corrosion resistance for doors in high-traffic areas (up to 2,000 openings per day); suitable for commercial entrances, school corridor doors, offices, and restrooms
- THREE MOUNTING OPTIONS: This non-handed auto door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions are included for hassle-free installation

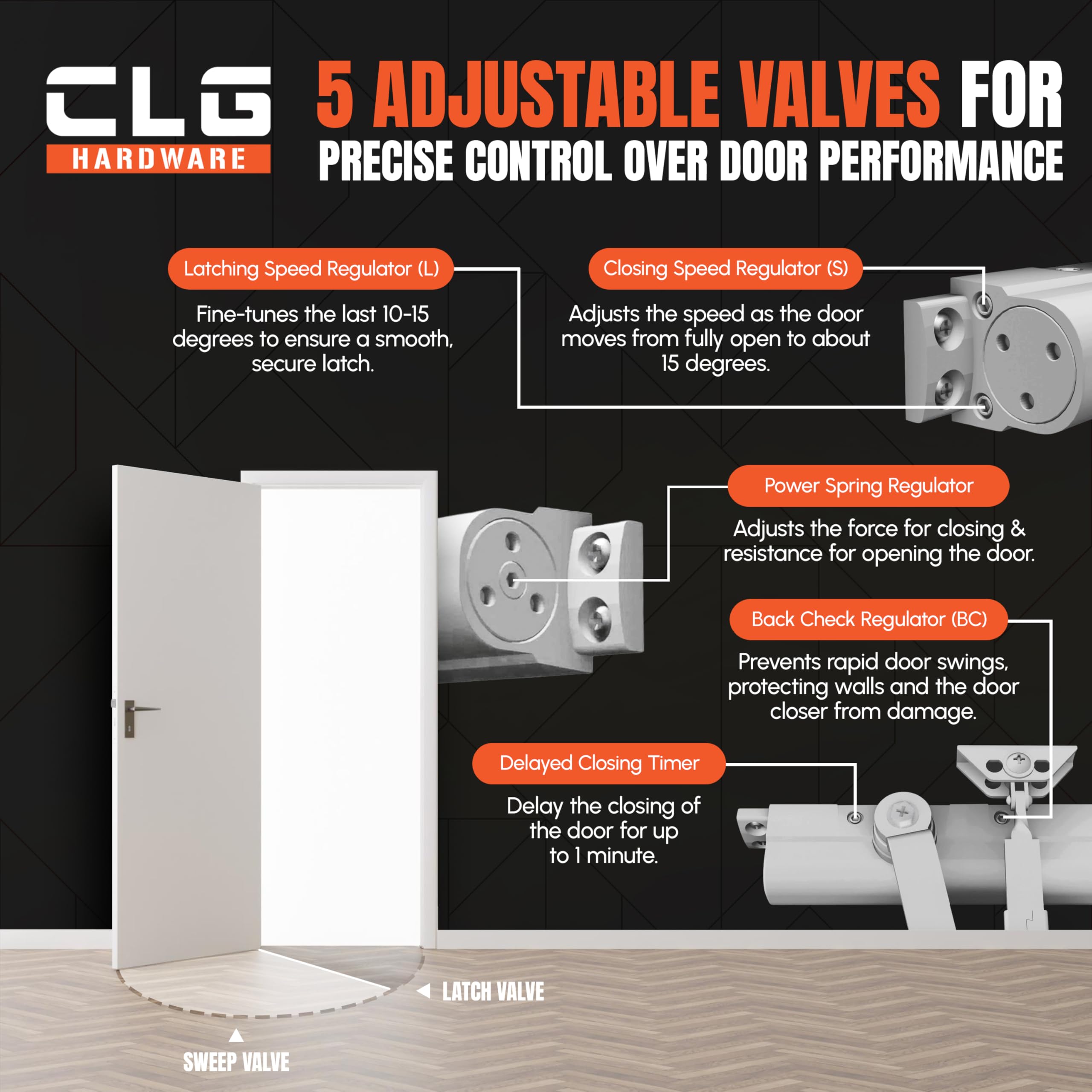

- 5 ADJUSTMENT VALVES FOR COMPLETE CONTROL: This hydraulic door closer features 5 adjustment valves to control the closing speed, latching speed, backcheck, spring force, and a delayed closing timer; fine-tune for smooth, quiet, and secure closing
- CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 2 million cycles), ensuring safety and reliability; the DC8016 door closer is trusted by contractors, property managers, and builders
- USA SUPPLIED & SUPPORTED: Our commercial door closers are supplied by a USA-based company, providing reliable year-round support
- SPECIFICATIONS: This door closer weighs 7.4 lbs (3.36 kg) and is for doors weighing up to 330 lbs (150 kg) and 60” (1500 mm) wide; it’s dimensions are 2 7/8" (73 mm) high, 13 1/16" (332 mm) wide and 2 1/8" (73 mm) deep; its screw/bolt pattern is 12" wide (center to center) and 1 7/8" high (center to center); the spring force is adjustable from Setting # 1 (2 pounds of closing force) through to Setting # 6 (14 pounds of closing force)
| Exterior Finish | Bronze, Aluminum |
| Specification Met | Ul, Ansi, Ada |
| Recommended Uses For Product | Offices, Restaurants, Factories, Schools, aluminum storefronts, heavy traffic entrances and doorways, and other public spaces |
| Manufacturer | Clg Hardware |
| Unit Count | 1 Count |
| Item dimensions L x W x H | 13"L x 13.06"W x 2.87"H |
| Brand | Clg Hardware |
| UPC | 195893243860 |
| Number of Items | 1 |

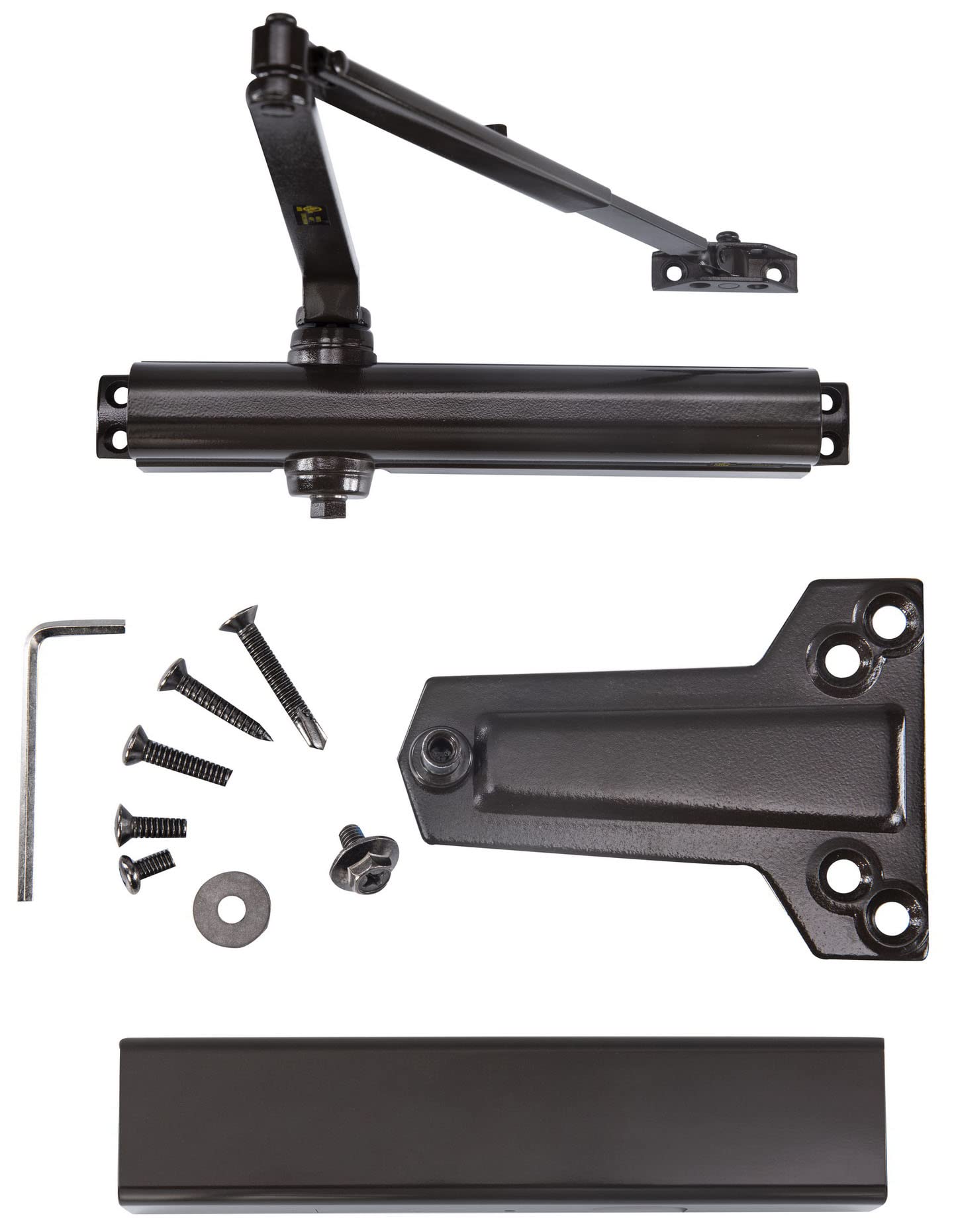

| Included Components | Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations |
| Product Dimensions | 13"L x 13.06"W x 2.87"H |
| Material | Aluminum |
| Colour | Dark Bronze |
| Size | Heavy Duty |
| Installation Type | Screw-In |
| Item Weight | 6 Pounds |
| Number of Packs | 1 |
| Manufacturer Part Number | CLG-CLG8016-BC-DA-DURO |
| Material Type | Aluminum |
| Model Number | DC8016 |
| Item Highlight | Contractors Choice, Adjustable Speed & Force, 3 Mounting Options, Delayed Action Timer, 3 Hour Fire Rated (DC8016 Bronze) |
| Product Type | Door Closers |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSW2AYFAEMAAC3V |
Category |
Commercial Door Products , Commercial Door Hardware , Door Closers |
Tags |
Estimated shipping
Select a product to estimate shipping.The Heavy Solution
The DC8016 Heavy Duty Commercial Door Closer is a testament to exceptional craftsmanship and engineering expertise. Built using only the finest materials, this door closer surpasses industry standards in terms of durability and strength, making it the ideal choice for high-traffic areas such as hospitals, schools, and government buildings. In addition to its unparalleled functionality, the DC8016 boasts a sleek and modern design that seamlessly complements any architectural style, elevating the aesthetic appeal of your building. Its minimalistic profile adds a touch of elegance to any doorway while blending in seamlessly with the surrounding environment.

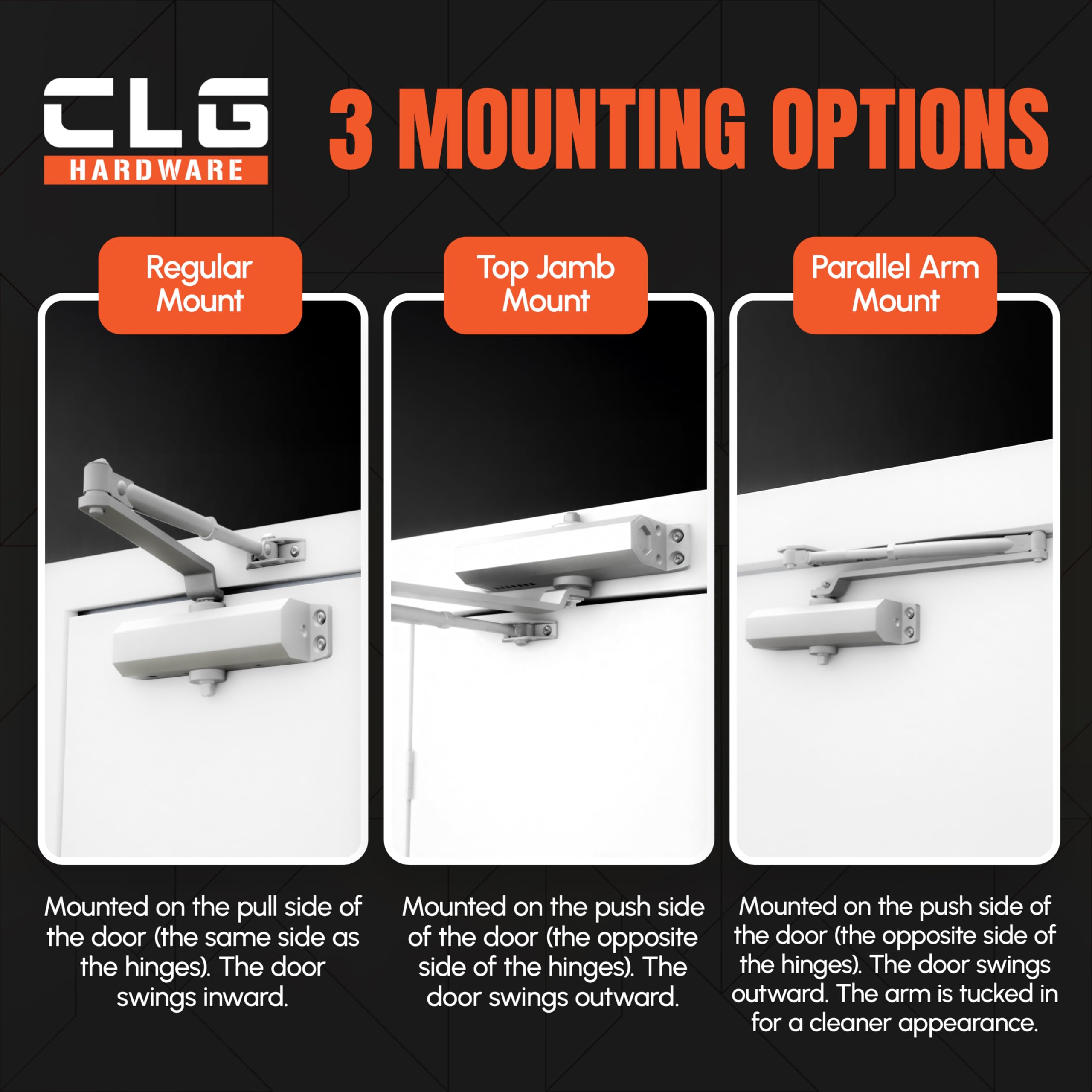

Regular Mounting
The regular mounting is designed to provide superior security and functionality to any commercial doorway. The regular arm mounting option allows for the closer to be installed on the pull side of the opening, with the closer body mounted to the top of the door and the closer arm attached to the face of the frame head. To ensure a proper installation, the top rail of the door must be wide enough to accommodate the closer body. However, if your door's top rail isn't wide enough, don't worry! We've got you covered with a mounting plate that will provide a secure and reliable installation.
Top Jamb Mounting
When the top rail of your door is narrow and the closer needs to be installed on the push side of the opening, the top jamb mounting option is the ideal choice. With the closer body mounted to the face of the frame head and the arm attached to the face of the door, this mounting option provides a sleek and modern appearance, making it more aesthetically pleasing than other mounting options that require a mounting plate.
Parallel Mounting
When mounted on the push side of the opening, the parallel arm door closer provides superior security and functionality. The parallel arm door closer is the suitable choice when aesthetics are a concern. When the door is closed, the parallel closer arm folds, making it less noticeable and adding an extra touch of elegance to any commercial space. Additionally, parallel arms travel in such a way to allow built-in closer arm stops to be added, providing you with more control at the opening. This mounting option is recommended for narrow top rails.
CLG Hardware
We not only strive to be the best and most reliable door closer on the market, but we also have proven to be aesthetically pleasing by giving our products a designer look that comes highly recommended by Designers and Architects across the United States.
We boast on high-quality construction and expert craftsmanship that gives architects, property managers, builders, contractors and other professionals piece of mind when they select the CLG HARDWARE family of closers.
Upgrading Security
Installation is a breeze with the included mounting hardware and instructions, and the DC8016 can be installed on either left or right-handed doors. Its compact size also means it won't take up too much space, allowing for maximum functionality in even the tightest of spaces. From its sturdy construction to its contemporary design, every aspect of the DC8016 has been meticulously engineered to deliver maximum performance, longevity, and aesthetic appeal.
The Door Closers are UL-certified with a three-hour fire rating, providing unparalleled protection in the event of a fire emergency.
The DC8016 is certified with the ANSI / BHMA A156.4 certification, making it an ANSI Grade 1 commercial door hardware that has undergone 2 million cycles of testing.
Our door closer also complies with ADA accessible design standards, ensuring that all users can easily and safely access your commercial space.
The Adjustable Backcheck ensures that your door doesn't swing too fast or hit nearby objects, while the Delayed Action feature lets you set the closing speed to match the pace of your foot traffic.
