Treedix IR Break Beam Sensor 5MM LEDs Counting Module Split Through-Beam Photoelectric Switch
- High sensitivity, with fast and stable response speed
- Faster than a PIR sensor for better control over where you want to detect motion
- Output mode: NPN normally open, response time: 2ms
- The sensor can be powered by a voltage of DC 3 ~5 V. It can be used with Arduino for some simple motion detection, speed detection, timing, etc. in smart robot competitions.
- Applicable models: relay, K60, PLC, 51 microcontroller, STM32, arduino, etc.
| Specific Uses For Product | Time, Speed |
| Manufacturer | Treedix |
| Current Rating | 20 milliamps |
| Brand | Treedix |
| UPC | 741754905868 |
| Number of Items | 1 |
| Output Type | NPN |
| Included Components | sensor |
| Sensing Distance | 1 meters |
| Measuring Range | 1 Meter |
| Upper Temperature Rating | 60 °C |
| Material | Copper |
| Style | Modern |
| Mounting Type | Flange Mount |
| Response Time | 2 Milliseconds |
| Part Number | TRX5-0296 |
| Model | F5 |
| Material Type | Copper |
| Style Name | Modern |
| Product Type | Photoelectric Sensors |
| Maximum Supply Voltage | 5 volts_of_direct_current |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSW2BD6OUJWAGTP |
Category |
Industrial Electrical , Sensors , Photoelectric Sensors |
Tags |
Estimated shipping
Select a product to estimate shipping.
Specification:
Type: F5 with 2.54 terminal infrared through-beam sensor

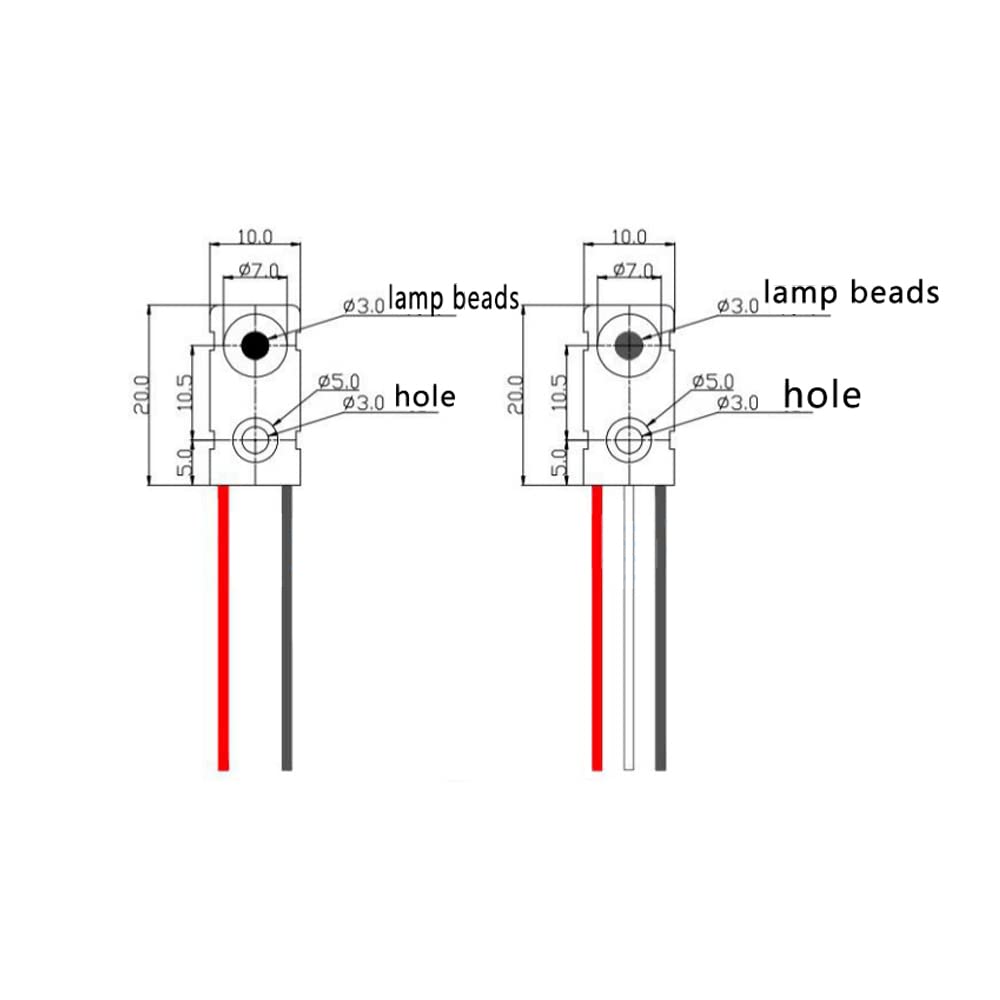

Dimensions: 20*10*9mm
Lamp: 5MM 850 launch
Light hole: 5MM
Launch tube power: 20 mA
Detection distance: 1M
Line length: 30cm
Lighting method: DC light
Launch angle: straight
Receiving angle: <10 degrees
Detection method: through-beam type
Working voltage: DC5V
Working current: 20A
Response time: 2ms
Transmitter/Receiver LED Angle
Working temperature:-25°C-60°C

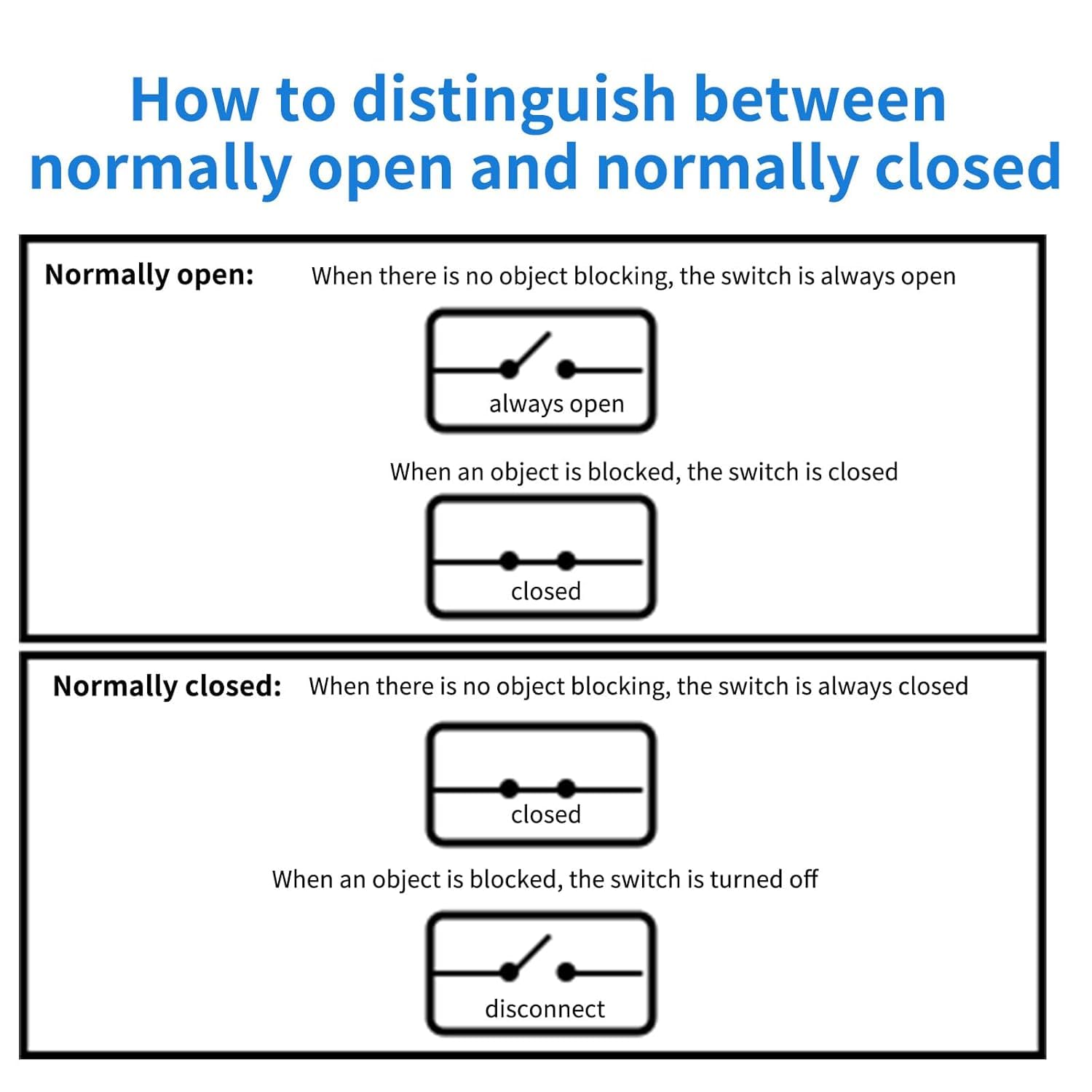

Output mode: NPN normally open

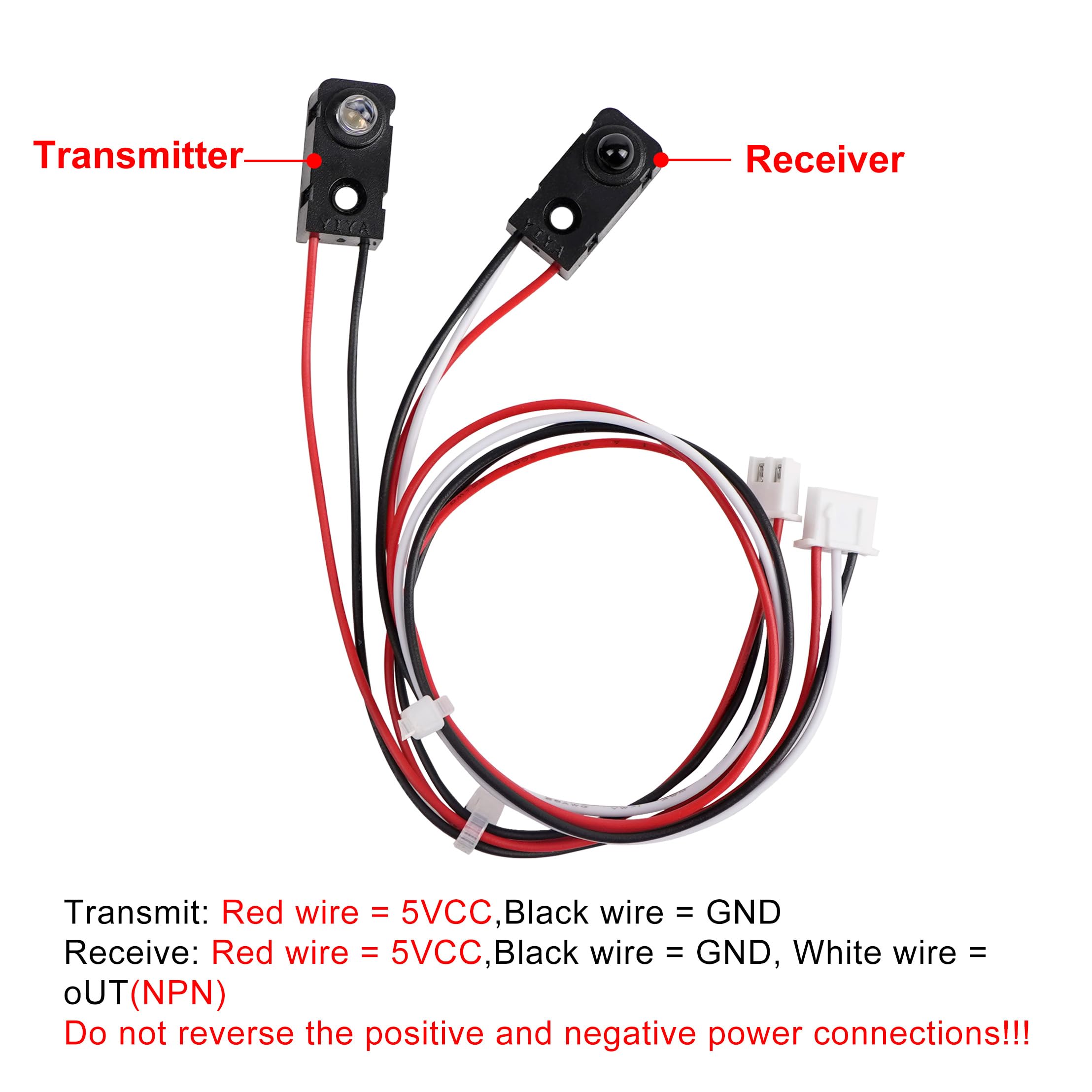

Transmit: red wire=5VCC black wire=GND
Receive: red wire = 5VCC black wire = GND white wire = OUT (NPN)
Note: Do not reverse the positive and negative poles of the power supply
The package includes:
1X IR Break Beam Sensor(1m)-Receiver
1X IR Break Beam Sensor (1m)-Transmitter
