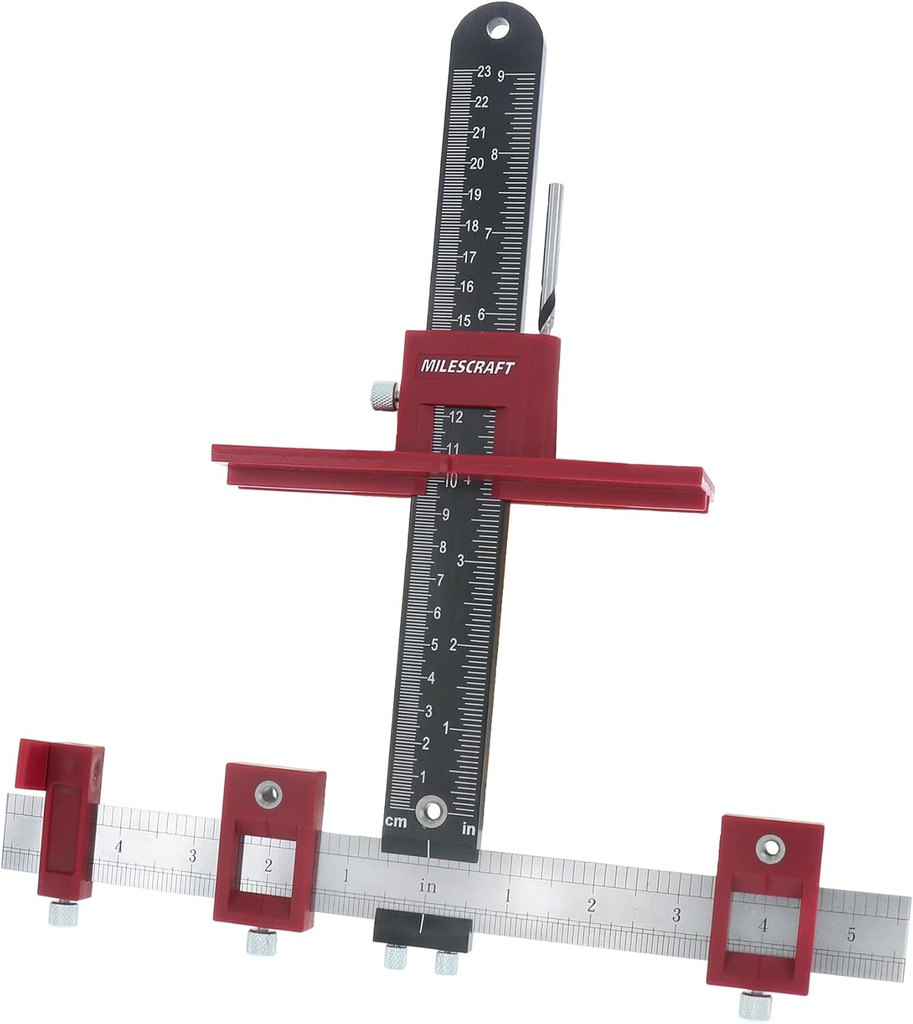

Milescraft 1340 Cabinet Hardware Jig – Adjustable Drill Guide to Quickly Install Cabinet/Drawer Handles, Knobs and Pulls. Cabinet Hardware Template, Wood Drilling Guide Jig, Drawer Pull Jig
6 sold in last 24 hours
- Adjustable sliding stops lock in place to align the drill guide and repeat drilling on multiple pieces
- Reversible design allows you to transfer drilling guide jig from left door to right with a simple flip, keeping hardware position locked in
- Three steel 5mm (3/16”) bushings create accurate, straight holes and are designed to last
- Centering notches align cabinet template to center marks for perfect placement when installing drawer knobs

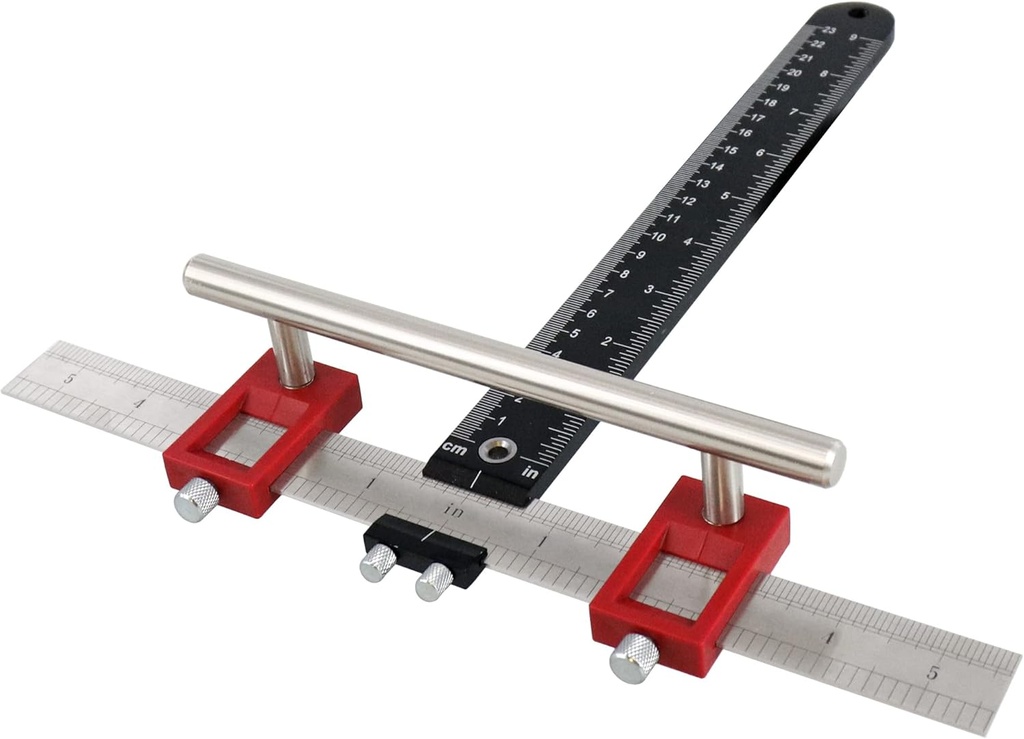

- Install pulls and handles from 1-1/4” to 10” long
Tags |

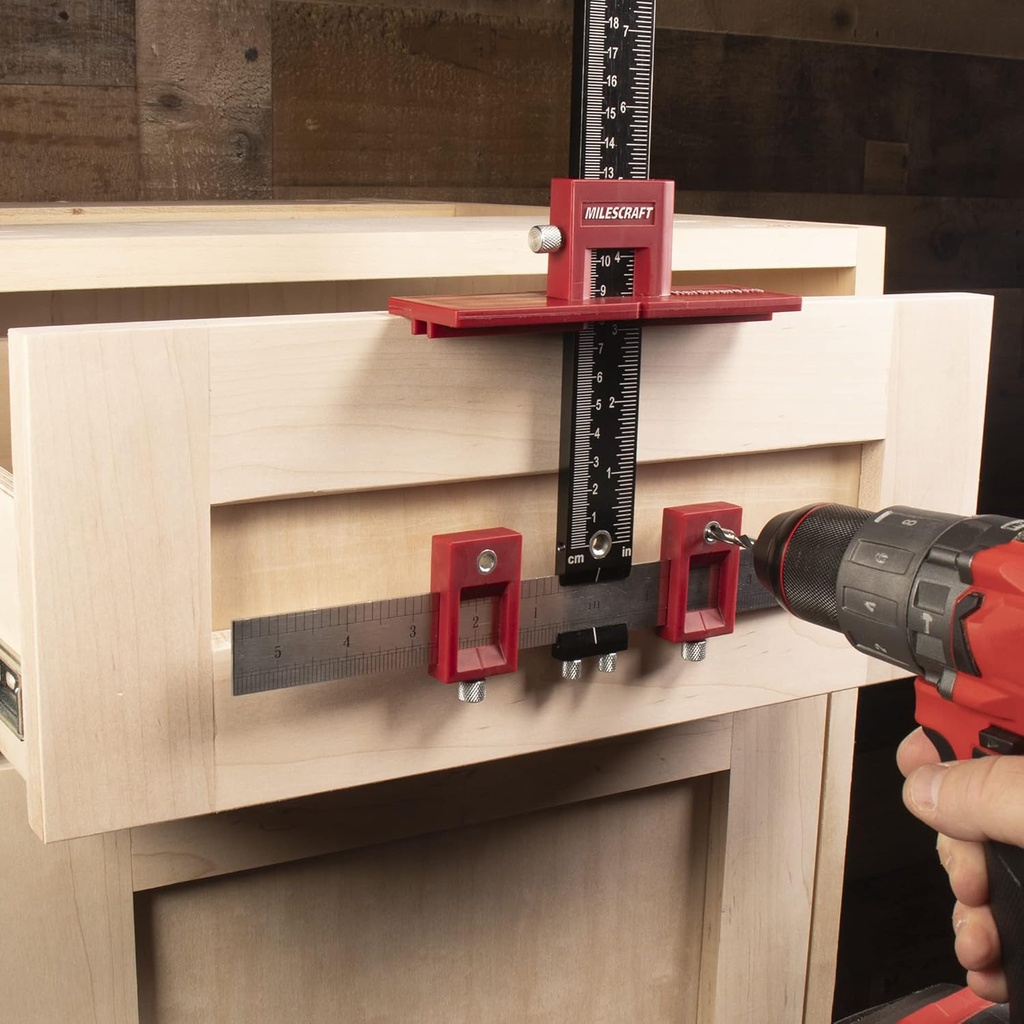

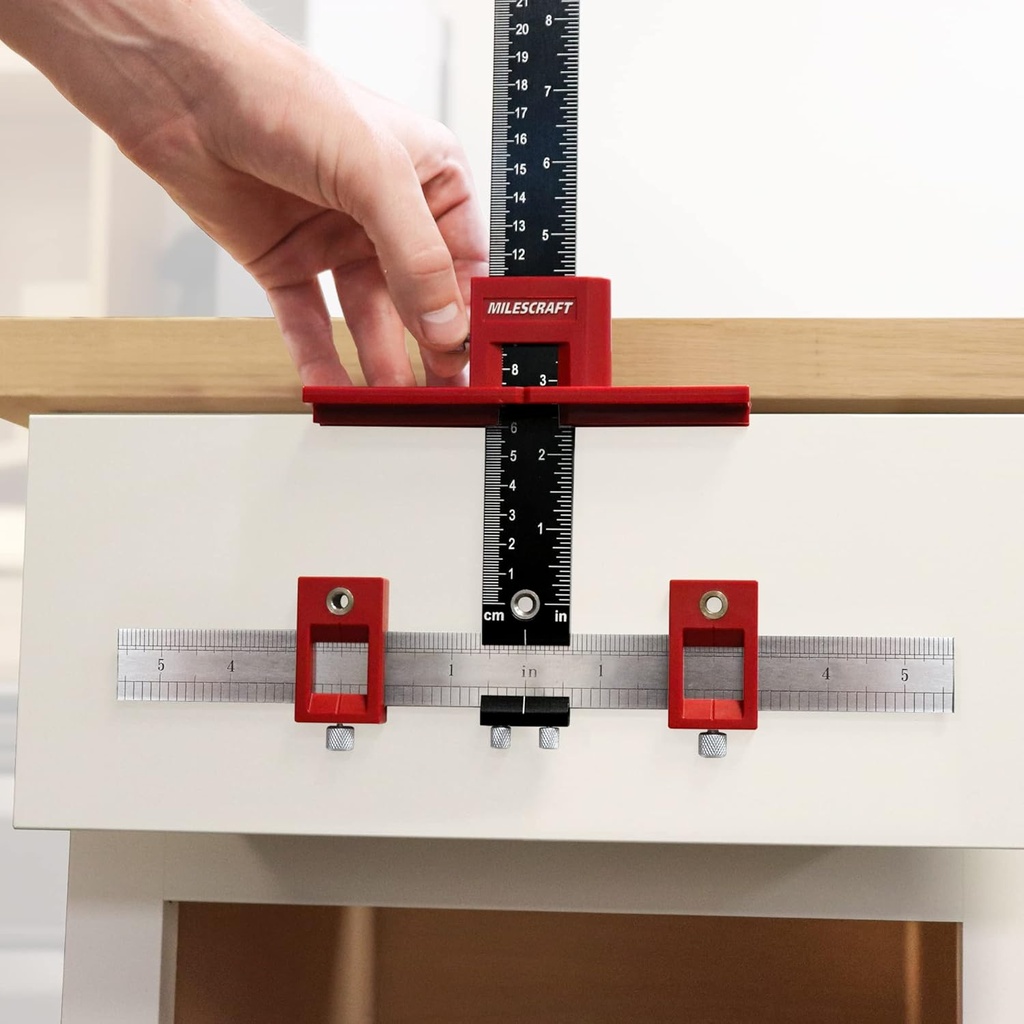

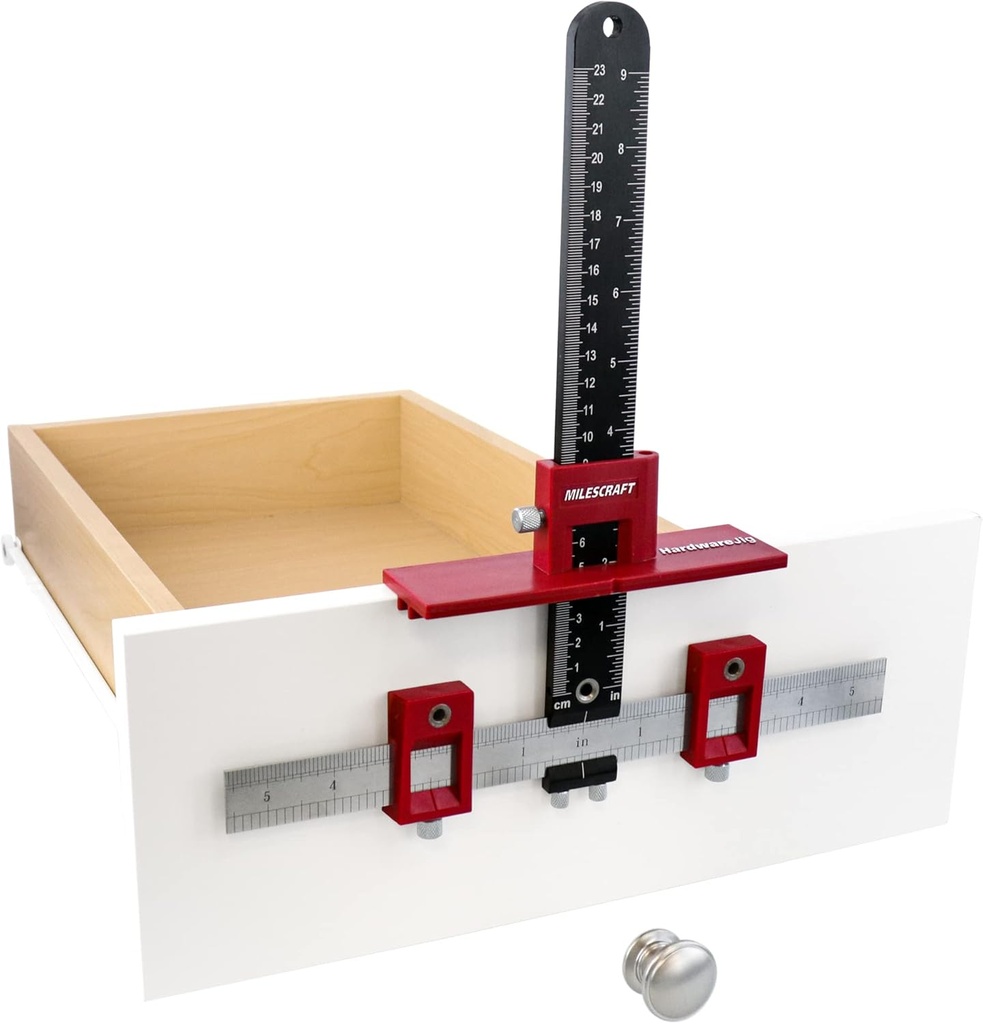

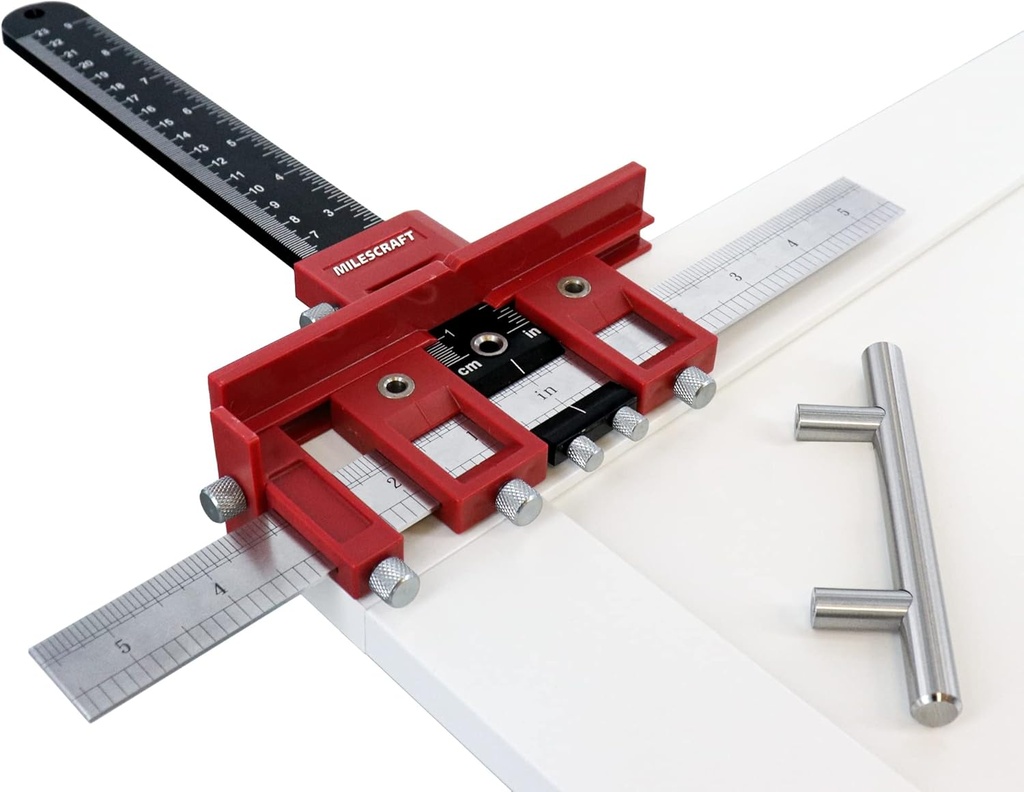

The Milescraft 1340 HardwareJig makes it easy to install cabinet and drawer handles, knobs & pulls. You can lock sliding stops in place to align jig and repeat drilling on multiple drawers or cabinet doors. The reversible design will allow you to transfer jig from left to right door while the hardware will stay locked in. Three 5mm( 3/16in.) bushings will create accurate, straight holes in your door. You can install pulls and handles from 1-1/4in to 10in. long. The jig includes 5mm drill bit. The black vertical ruler has both dimensions included- Metric and Imperial. The silver horizontal rules can be reversed to show metric dimensions on the back and imperial on the front. The black ruler has a hole on the top so you can store your jig by hanging it in your wood or tool shop.
Technical Details
| Color | Multi Color |
|---|---|
| Material | Metal |
| Brand | Milescraft |
| Item dimensions L x W x H | 13.43 x 4.29 x 1.93 inches |
| Item Weight | 1 pounds |
| Included Components | 2 Adjustable Drill Guides, 5mm drill bit, Edge Alignment Stop, HardwareJig, Vertical and Horizontal Metal Rulers |
| Number of Pieces | 1 |
| Folded Size | 15x5x2 inches |
| UPC | 737888134007 |
| Global Trade Identification Number | 00737888134007 |
| Manufacturer | Milescraft |
| Part Number | Milescraft - 1340 |
| Product Dimensions | 13.43 x 4.29 x 1.93 inches |
| Item model number | 1340 |
| Power Source | Hand Powered |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | 3 year |
| Main Specification | |
|---|---|
| Item dimensions L x W x H | 13.43 X 4.29 X 1.93 Inches |
| Brand | Milescraft |
| Color | Multi Color |
| Material | Metal |
| Technical Details | |
| Item Weight | 1 Pounds |
| Others | |
| Product Type | Multitool |
