JQDML 12V Mini Linear Actuator 2 Inch Stroke, 42lbs/188N, IP54 Waterproof

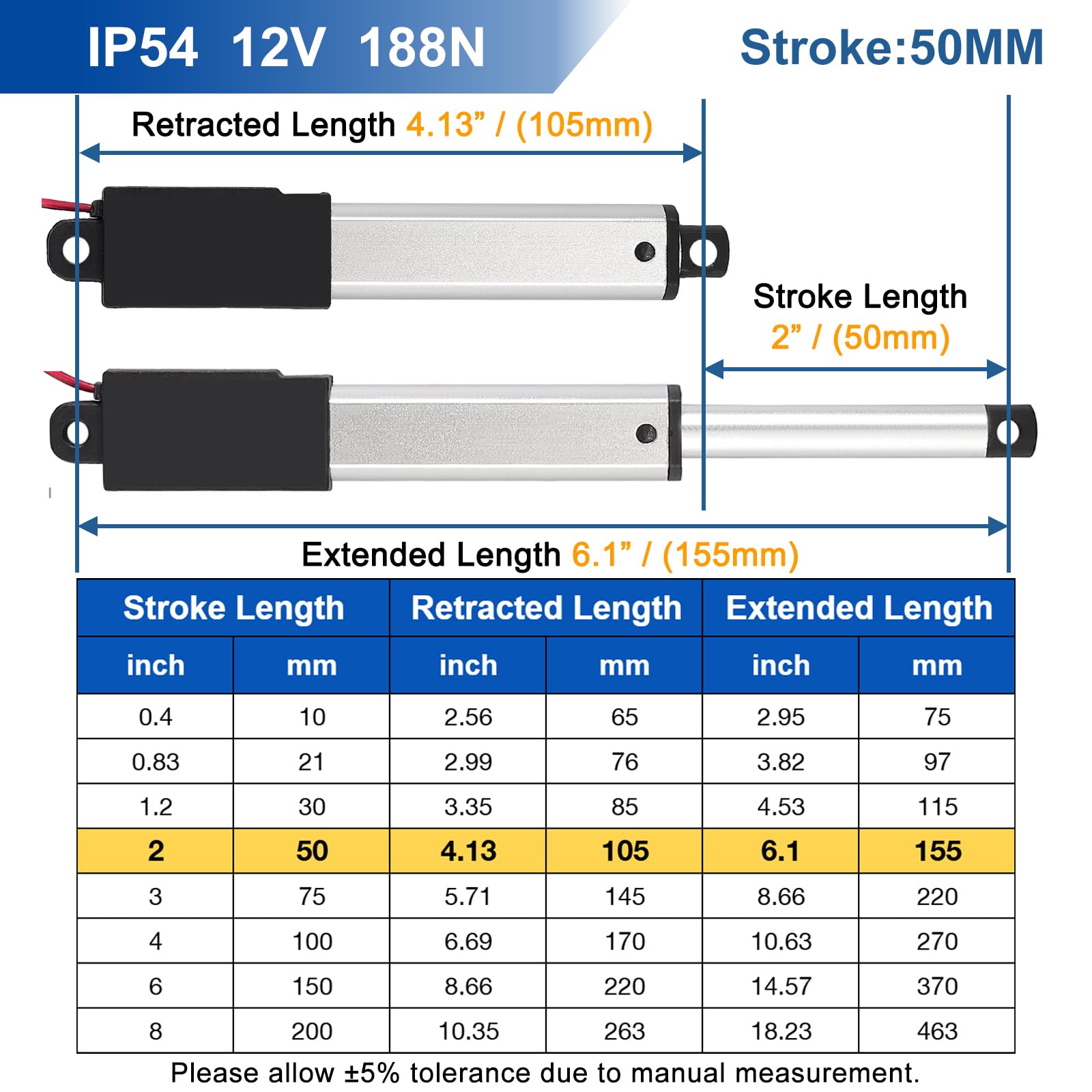

- Specification:Voltage: 12V DC; Stroke Length: 2"(50mm),Retracted length:4.13"(105mm), Extended Length:6.1"(155mm); No load speed: 0.2"/sec (5mm/s), Protection Class: IP54, Maximum Load:42lbs(188N), Load Current: 0.3A,No Load Current:0.1A, Item Weight (actuator+bracket):0.11lbs.
- Durable & Robust Material:Constructed with an aluminum alloy telescopic rod and housing, this actuator features reliable rust resistance. Powder metallurgy metal gears boost enhanced durability for long-term use.
- Reliable Operation & Easy Installation:Built-in limit switch can automatically stop the motor when it reaches both ends to ensure safe and stable operation. Its strong self-locking function allows it to stay in any position, preventing motor burnout and load slippage. The linear actuator includes mounting brackets for quick and easy assembly.

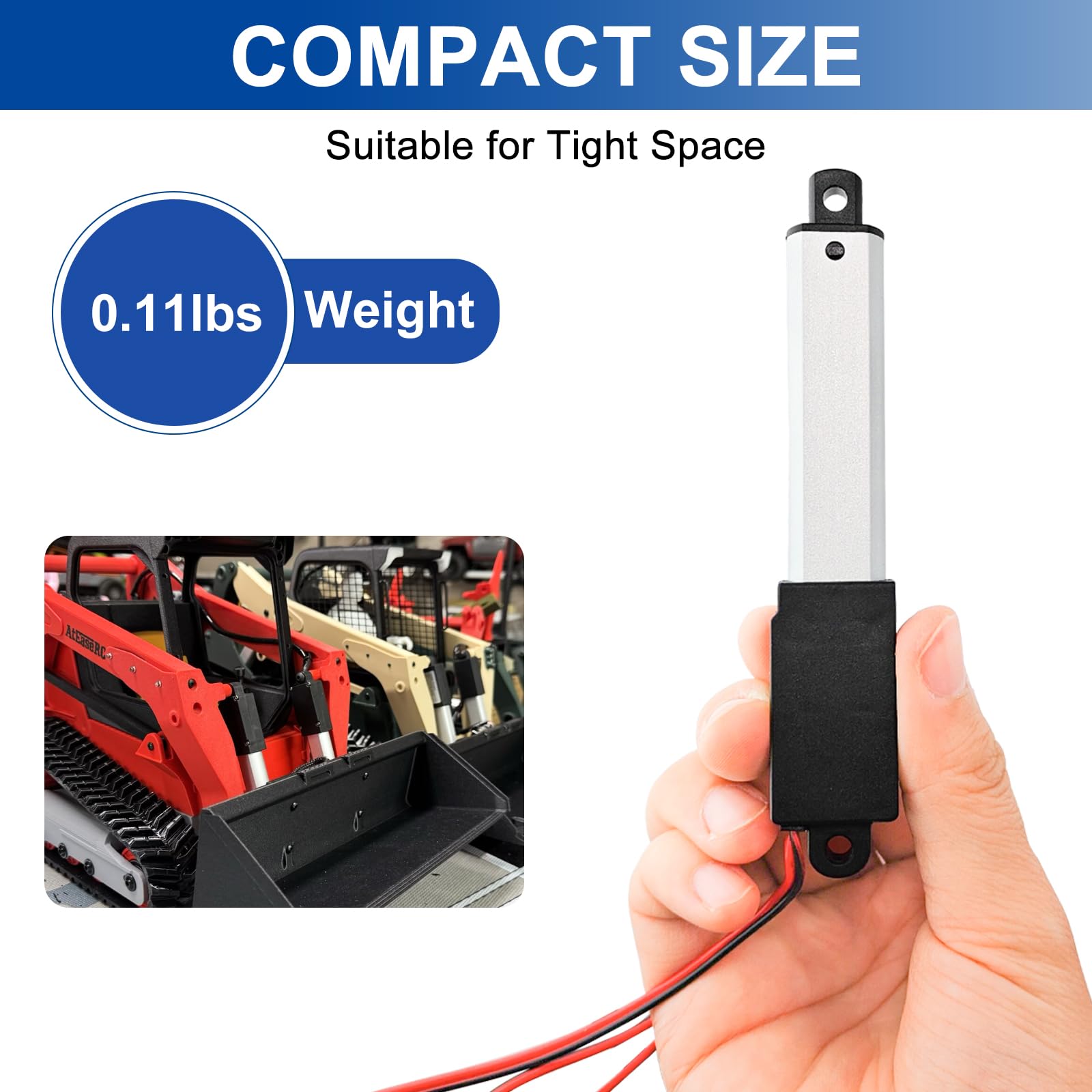

- Wide Application: Featuring a compact & lightweight design, extremely convenient for small-space project installations. Perfect for cabinets, window openers, robotics, and home automation.
- Package Included: 1 x DC 12V Mini Linear Actuator, 2 x Mounting Brackets
| Manufacturer | JQDML |
| Brand | JQDML |
| Item Weight | 2.89 ounces |
| Package Dimensions | 8.27 x 3.98 x 1.42 inches |
| Item model number | LMMiniTuigan |
| Date First Available | 2022, April 25 |
| Product Type | Linear Motion Actuators |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSW2CY3BEORMCDV |
Category |
Power Transmission Products , Linear Motion Products , Linear Motion Actuators |
Tags |
Estimated shipping
Select a product to estimate shipping.188N Mini Linear Actuator, Wide Stroke Choices
Ideal for home automation, DIY and small devices
How to install the actuator ?
The linear actuators are controlled by applying a 12V DC voltage.
Black wire to the positive terminal and red wire to negative terminal will make it extend. To make it retract, reverse the terminal connections.
The actuator has pre-installed limit switche inside, it cannot be adjustable.
It can be stopped at any position, with self-locking function.It will hold its position when the power is off. It will auto stop when it reaches the end.
How to protect the actuator ?
Please use the 12V DC power battery. If using smaller voltage, the product cannot work well, use bigger voltage maybe will damage to the product.
The mini linear actuator is suitable for pushing objects, not for pulling objects.
The actual load does not exceed the rated load.
Please don't store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
The operating frequency of this actuator is 10%. It means that your actuator needs 18 minutes to rest for every 2 minute of work.
What‘s in the box ?
1 x Linear Actuator
2 x Mounting Brackets
