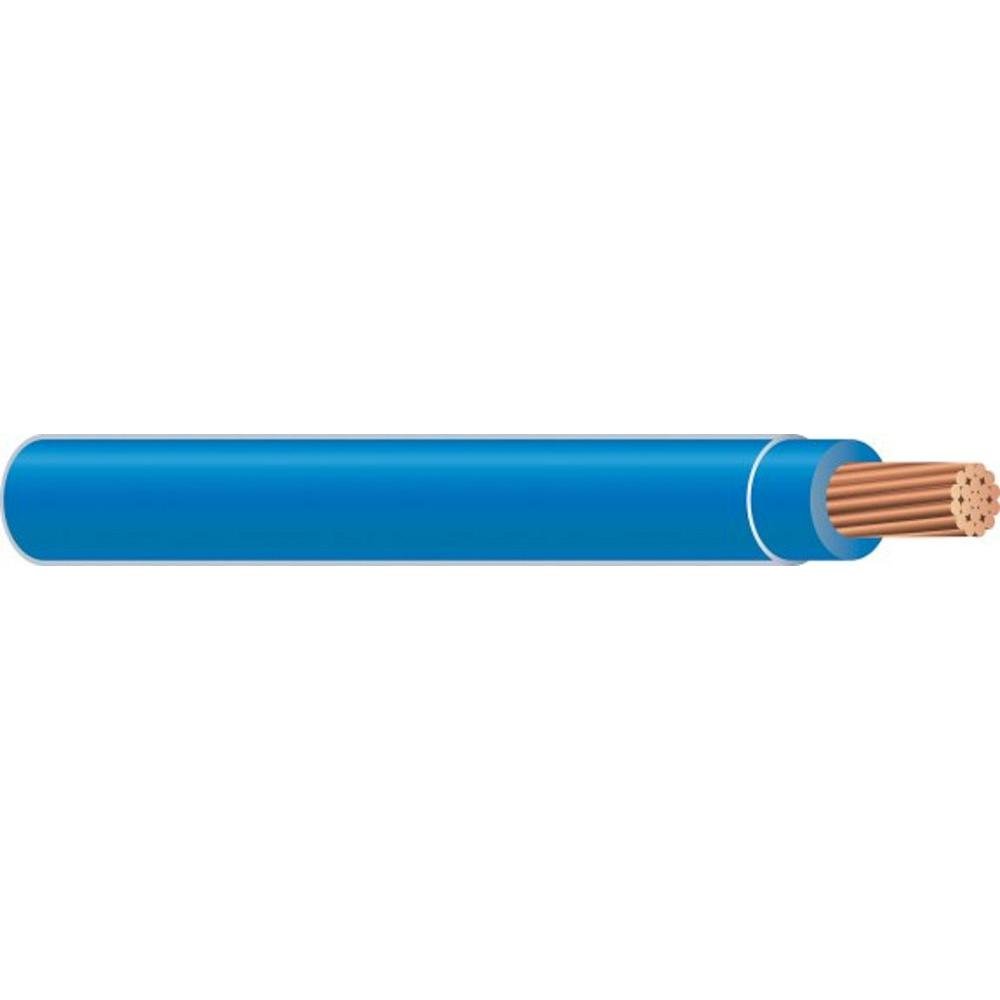

$ 3,850.89Wirenco 8 AWG 19-Stranded THHN Blue Copper Building Wire (50Ft Cut)
12 sold in last 24 hours
- Rated for 600-Volts with a Heat Capacity of up to 60 Degrees Celsius in Wet Locations and 105 Degrees Celcius in Dry Locations.
- Has an Allowable Ampacity of: 40 Amps at 60 Degrees Celsius, 50Amps at 75 Degrees Celsius, and 95 Amps at 55 degrees Celsius
- Can be Used in Wet or Dry Locations. Insulation is High Heat and Moisture Resistant Polyvinyl Chloride (PVC). Jacket is Abrasion, Moisture, Gasoline, and Oil Resistant Nylon
- Contains Copper (Cu) Conductors Made with Annealed (Soft), Compressed Copper
- #8 AWG Commercial Wiring for Outlets, Switches and Other Loads
Tags |
Applications:
Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). 8 AWG THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90°C or not to exceed 60°C in oil or coolants. Applications requiring Type AWM conductor is appropriate for use in dry locations at 90°C, or not to exceed 60°C in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105°C in dry locations.
Also Known As:
8 AWG Copper wire, 8 AWG THWN-2, 8 AWG Building Wire, hook up wire, conduit wire, lighting wire, nylon copper wire, construction cable, 8 Gauge Wire.
Features
Nylon outer jacket for easy pulling. VW-1 rated 14 AWG - 8 AWG. All sizes are rated gasoline and oil-resistant II.
Jacket:
A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.
Standards:
Underwriters Laboratories Standards UL-83, UL-1063, UL-758
AWM Spec 1316, 1317, 1318, 1319, 1320, 1321
ASTM Stranding Class B3, B8, B787
Federal Specification A-A-59544
NEMA WC70/ICEA S-95-658
Institute of Electrical and Electronics Engineers
Constrction:
Insulation:Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-8
Specifications:
Size:8 AWG
Number of Strands:19
PVC Insulation Thickness (Conductor):0.760 mm / 0.030 inches
Nylon Jacket Thickness:0.130 mm / 0.005 inches
Outside Diameter:5.39 mm / 0.212 inches
Weight per Foot: 0.069 lbs
Allowable Ampacity:40 Amps at 60℃ / 50 Amps at 75℃ / 55 Amps at 90℃
Product details
| Item model number | 159200-W |
|---|---|
| Manufacturer | wirenco |
| Main Specification | |
|---|---|
| Brand | Wirenco |
| Gauge | 8.0 |
| Number of Cable Strands | 19 |
| Color | Blue |
| Material | Copper |
| Others | |
| Product Type | Electronic Wire |
