Gdrasuya10 3.7 Inch Duct Fan HF-100P Duct Ventilation Exhaust Fan 9.5cm Fan Blower 150Pa 2600 r/min Home Kitchen Ventilation Pipe Splicing Ventilating Blower for Toilet, Warehouse
7 sold in last 24 hours
- 【Functional Advantages】 Lightweight ABS base, vertical and horizontal rib design, safer and firmer installation; self-locking net cover, firm and stable, easy to disassemble, easy to use, wide application range; specific junction box, safe and reliable, and widely used
- 【All-copper Motor】 Copper core wire, not only has low energy consumption, low operating noise, but also has strong power and strong practicability. The operating speed can reach 2600 rpm and the air volume can be 220 m³/h. Copper material, sturdy and durable, long service life
- 【Disassembly-assembly】 The main body of the duct fan can be disassembled separately, which is easy and effortless for later maintenance. The assembly process is also simple and quick. It can be assembled with ventilation ducts such as kitchen warehouses to achieve ventilation
- 【Splicing Method】 during installation, you can choose to splice with the ventilation duct (ie in parallel), the air pressure of the duct remains unchanged, and the air volume increases by two times, which is suitable for the space requiring rapid ventilation; you can also choose to connect with the ventilation duct in series. The installation method has the same air volume and twice the wind pressure, which is suitable for places where long-distance pipelines are required
- 【Applicable to】 Duct ventilators are effective duct ventilation equipment, which can be applied to homes, kitchens, hotels, bathrooms, warehouses and other places
Tags |
Features:
1. The main body can be disassembled separately
-- Easy to install, more convenient for later cleaning and maintenance.
2. Strong power, all copper motor
-- All copper core wire, low energy consumption, low running noise, not easy to burn, strong power, practical, long service life, moisture resistance, oxidation resistance.
3. Base design
-- Lightweight ABS base with vertical and horizontal stiffener design, make the installation more secure and firm.
4. Self locking net cover
-- Firm and stable, easy to disassemble, easy to use, widely applicable.
5. Specific junction box
-- Safe and reliable, widely used.
Specifications:
Model: HF-100P
Color: White
Voltage: 110 V / 60 Hz
Power : 35 W
Current: 0.13 A
Air Volume: 220 m ³ / h
Noise : 31dB
Static Pressure: 150 pa
Speed: 2600 r/ min
Material: Plastic

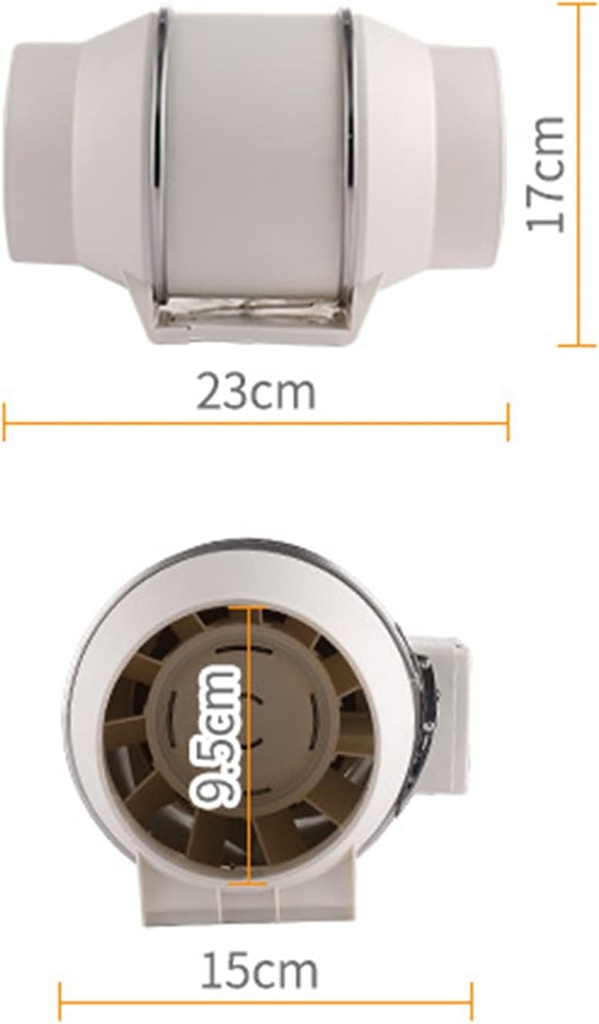

Product Size: 23 *15*17cm
Packing Size: 23 * 18 * 16 cm
Product Weight: 1 KG
Packing Weight: 1.5 KG
Applications: Home Users, Kitchen, Hotel, Toilet, Warehouse
Packing List:
1 x Tubular Fan
| Main Specification | |
|---|---|
| Electric fan design | Blower |
| Room Type | Bathroom |
| Brand | Gdrasuya10 |
| Recommended Uses For Product | Exhausting |
| Product information | |
| Product Dimensions | 5.91"D X 6.69"W X 9.06"H |
| Style | Modern |
| Style | Modern |
| Size | Hf-100p 23 *15*17cm |
| Manufacturer | Sunquo |
| Technical Details | |
| Voltage | 110 Volts |
| Wattage | 35 Watts |
| Control Method | App |
| Special Feature | Lightweight |
| Material | Plastic |
| Special Feature | Lightweight |
| Others | |
| Product Type | Electric Fan |
