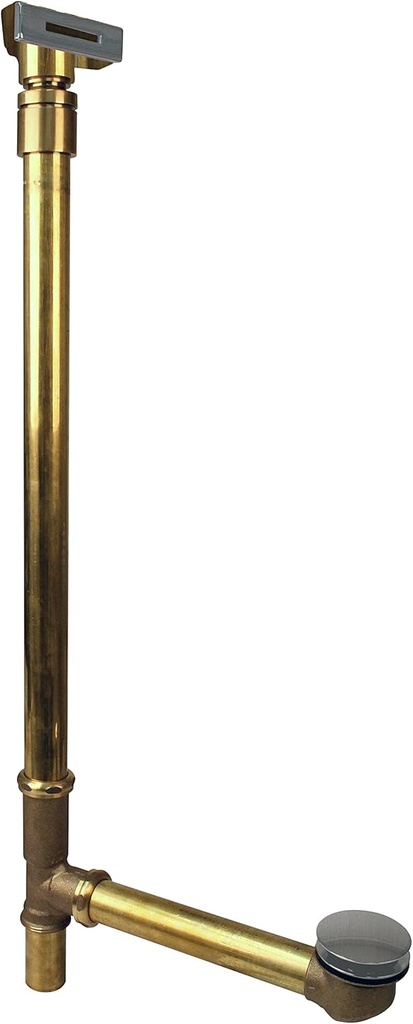

Westbrass 22" Linear Tip-Toe Drain Bath Waste & Overflow with Ball Joint, Satin Nickel, 7931817BJLD-07
3 sold in last 24 hours

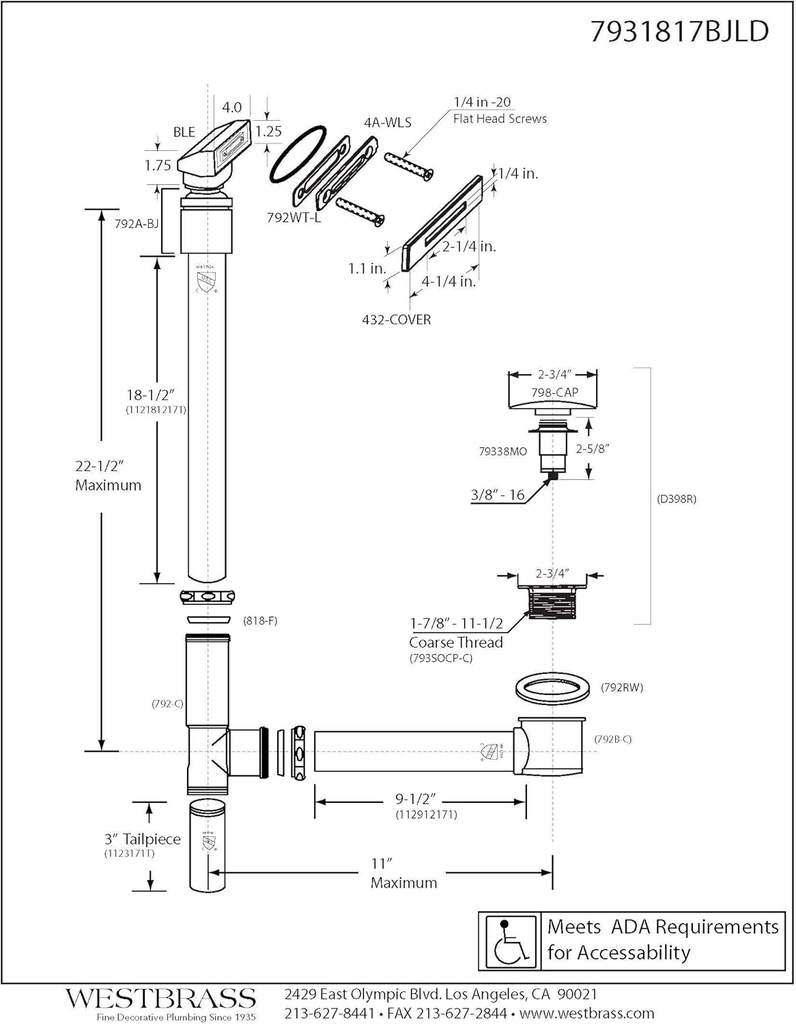

- 22” maximum make-up with 17 gauge brass tubes
- 1-1/2” unfinished brass tubular bath waste assembly

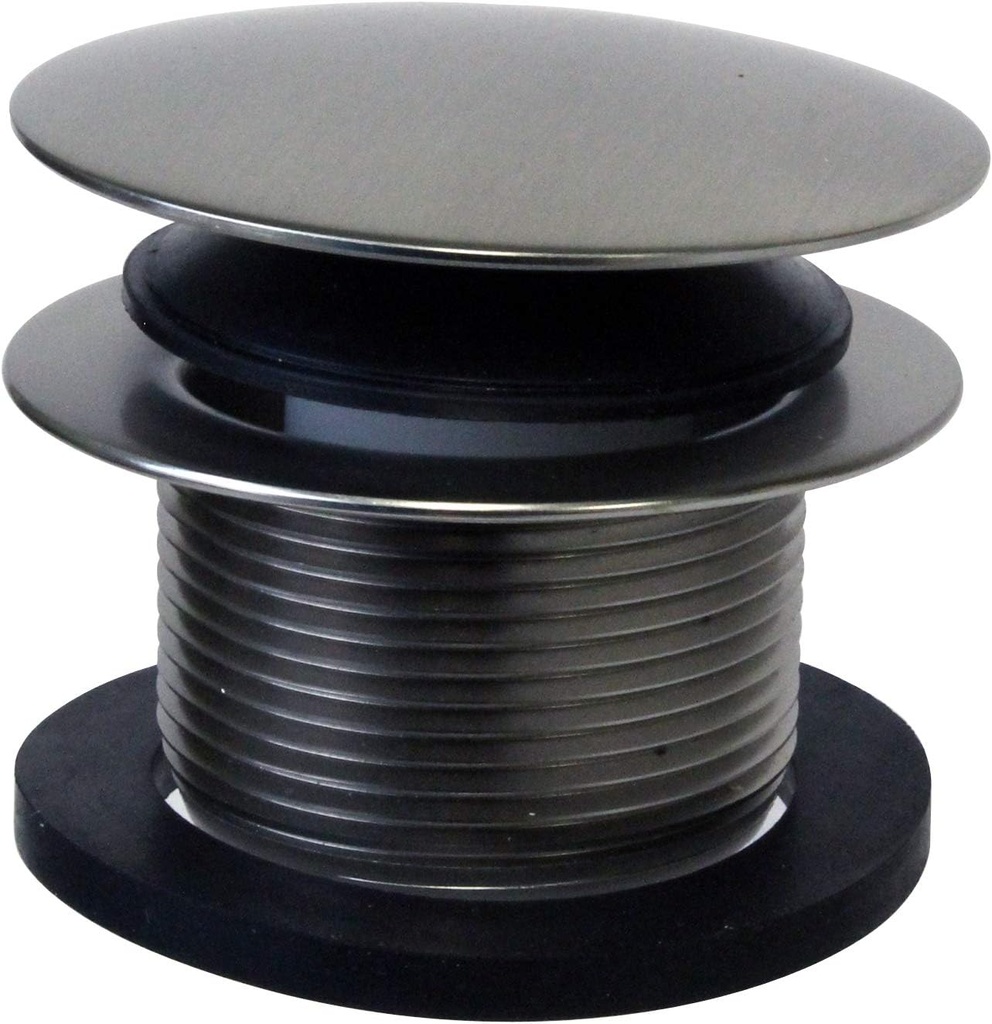

- ADA approved European tip-toe push drain for tub closure

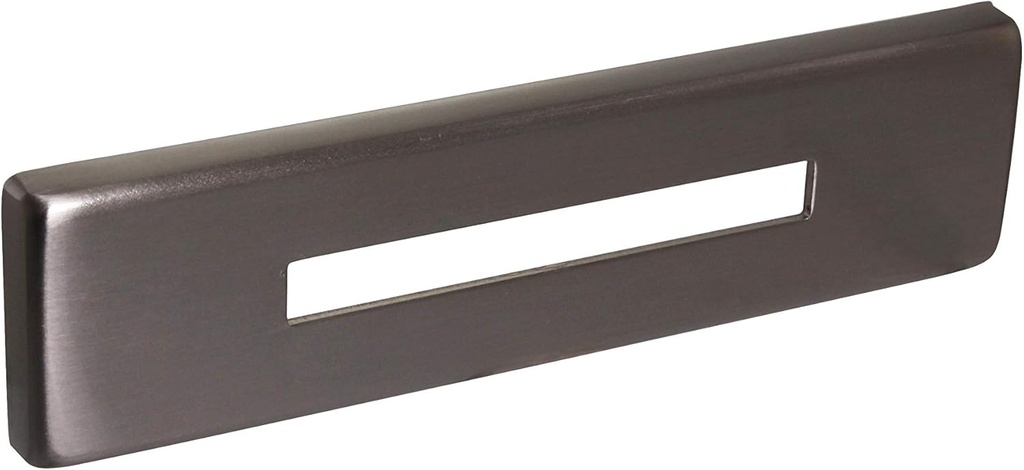

- The sleek linear overflow cover fits standard size drains and provides a low profile for narrow tub rims and beautifully finishes the inside of the tub rim
- Finished trim - unfinished rough-in. Includes 3” tailpiece, cast brass tee and elbows
Tags |

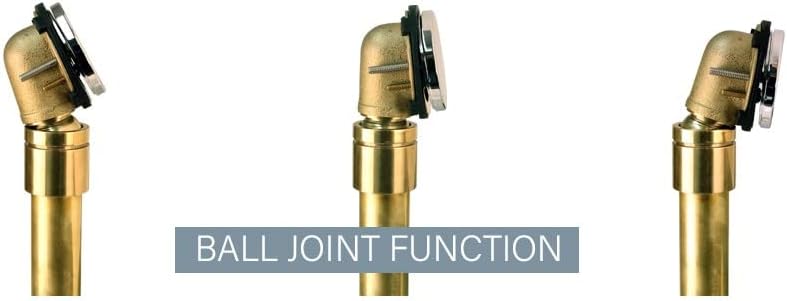

The Lineaar Drain overflow shape, allows the tub to maintain the modern elegance reflected by today's true lines and angular tubs shapes. Combined with the ball joint fitting, the drain is easier to install and meets cleanly with the exterior of the tub, preventiing leaks.This ADA approved bath drain plug from Westbrass, features an oversized sleek tip-toe stopper, to easily open and close your tub drain. This style is ideal for waste and overflow drainage and is operable from inside the tub. Press drain to close, press again to open. The no-hole illusionary overflow creates a pleasing tub trim without any screw holes. Combined with the ball joint fitting, the drain is easier to install and meets cleanly with the exterior of the tub, preventiing leaks. Available in a variety of finishes, this item is sure to complement your existing decorative fixtures.
Westbrass was founded in 1935 by two brothers, Jack and Aaron Kagan, to serve the needs of all plumbing wholesalers on the West Coast. The product lines at the time included items such as faucets, valves, malleable fittings, etc. After becoming the premier distributor of plumbing products, the company was bought in 1985 by Max Homami. Seeing a boom in the Home Improvement Industry, Mr. Homami had a vision to make Westbrass the leader in Kitchen & Bath Accessories.
The company currently manufactures its own products made of the highest quality materials. In order to ensure the excellence in the industry, these products are made to pass the highly stringent requirements of NSF, IAPMO, ADA and many other regulations. The Los Angeles-based company now sells a wide range of Plumbing Specialty Products, Bath Waste & Overflows, as well as Decorative Kitchen & Bath Accessories worldwide.
Westbrass holds several patented items including the Deep Soak Overflow designed for extra-deep soaking in most bathing-wells, the Closing Linear overflow and several other intellectual properties. The customer base includes kitchen & bath showrooms, plumbing wholesalers and supply houses, OEM and ODM companies, as well as several national home centers.
| Main Specification | |
|---|---|
| Manufacturer | Westbrass |
| Product information | |
| Product Dimensions | 22 X 13 X 10 Inches |
| Item model number | 7931817bjld-07 |
| Warranty Description | 1 Year Limited Warranty |
| Technical Details | |
| Installation Method | Silicone or Wrench |
| Color | Satin Nickel |
| Material | Brass |
| Item Weight | 6.2 Pounds |
| Part Number | 7931817bjld-07 |
| Style | Classic |
| Finish | Satin |
| Item Package Quantity | 1 |
| Batteries Required? | No |
| Brand | Westbrass |
| Item details | |
| Included Components | (1)-Bath Waste & Overflow Assembly |
