XH-W3002 DC 110V-220V 1500W 10A Microcomputer Digital Temperature Controller Digital Display Thermostat Control Switch and NTC 10K Thermistor Sensors Temperature Probe (110-220V 1500W)
- Super material: W3002 intelligent thermostat, a variety of fields perfect use, convenient operation and practical Settings, is your side temperature control housekeeper.
- Package including: 1 Pack of W3002 intelligent thermosta module, which is equipped with 1pcs NTC 10K temperature probe. The NTC probe is waterproof and allows to control the temperature even of fluids, allowing the controlled heated or cooling.
- XH-W300 Digital Thermostat specification: Temperature control range: -50-110°C. Control accuracy of 0.1 degrees Celsius. Input power: DC 110-220V. Output Power: 1500W (MAX). Easy operation, to set start temperature, stop temperature, corrected temperature connector, delay start.
- High Power High Efficiency: Two Work Mode: Heating ( start temperature is less than stop temperature), Cooling ( start temperature is above than stop temperature) It is precise and reliable with good long-term stability. With fixing screw hole, convenient for install and fixed. Small size, low power consumption, fast response.
- A wide range of applications: Widely used in hvac, dehumidifier, test and test equipment, automobile, automatic control, weather station, humidity regulator and other related temperature detection and control.
| Specific Uses For Product | Hvac, Dehumidifier, Test and Measurement Equipment, Automobile, Automatic Control Systems, Weather Station, Humidity Regulator |
| Included Components | Controller, AC Adapter, W3002 Digital Thermostat Module, Temperature probe sensor |
| Voltage | 110 Volts, 220 Volts |
| Unit Count | 1 Count |
| Control Method | Touch |
| Controller Type | Push Button |
| Display Type | LED |
| Temperature Control Type | Digital |
| Brand | Xingyheng |
| UPC | 700713393429 |
| Control Type | Button Control |
| Number of Items | 1 |
| Connectivity Technology | Wired |
| Model Name | W3002 |
| Power Source | Corded Electric |
| Product Dimensions | 1.22"D x 2.4"W x 1.77"H |
| Wattage | 1500 Watts |
| Colour | White |
| Special Feature | Temperature Display |
| Mounting Type | Surface Mount |
| Item Weight | 16 g |
| Number of Packs | 1 |
| Screen Size | 1.77 inches |
| Manufacturer Part Number | XLX-5701 |
| Material Type | Acrylonitrile Butadiene Styrene (Abs) |
| Model Number | XLX-5701 |
| Item Dimensions D x W x H | 1.22"D x 2.4"W x 1.77"H |
| Additional Features | Temperature Display |
| Product Type | Nonprogrammable |
| Product Style | Digital |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGAACC4IR4DTH |
Category |
Building Supplies , HVAC , Thermostats & Accessories , Thermostats , Nonprogrammable |
Tags |
Estimated shipping
Select a product to estimate shipping.About us:

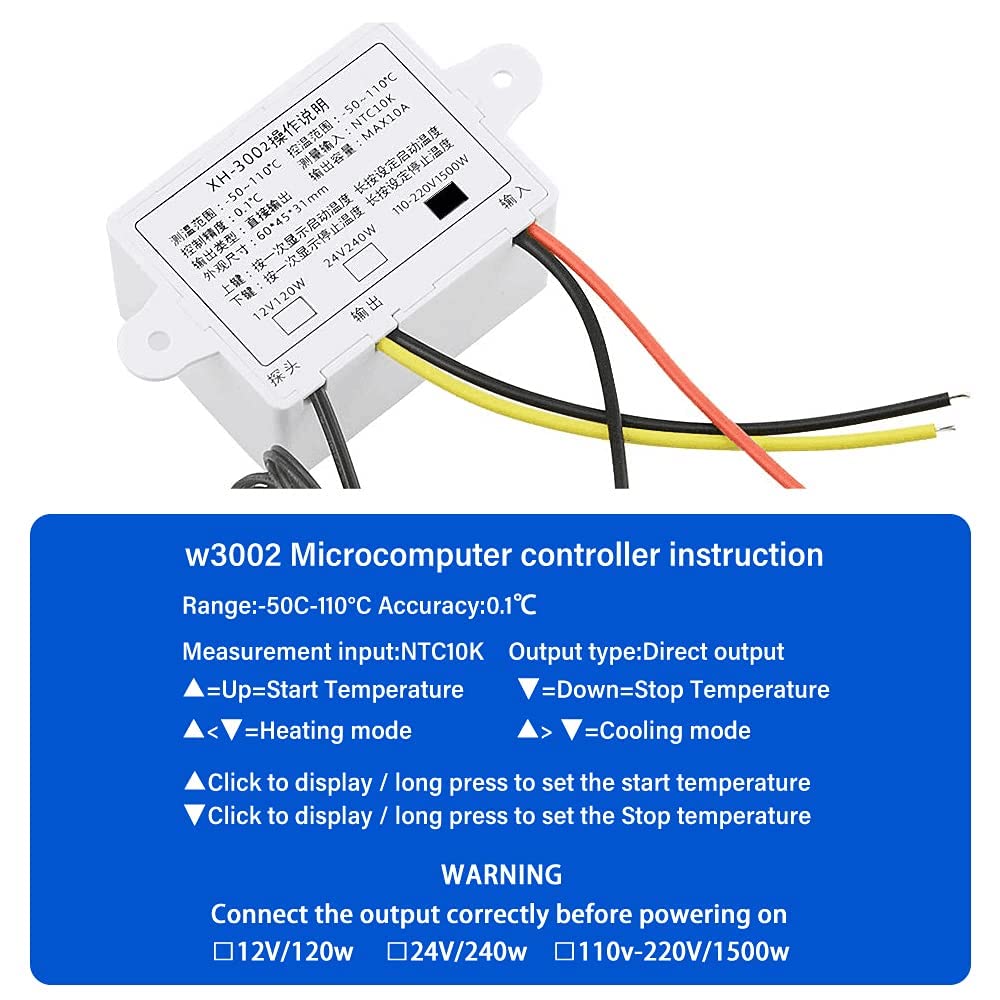

The W3002 temperature controller adopts single-chip microcomputer control system and high-precision temperature control probe,
with outstanding temperature control performance and precision.Simple control panel, wide temperature range, independent judgment of heating and cooling mode, simple setting.
Package including:
1 x W3002 Digital Thermostat Module
1 x Temperature probe sensor
Sensor performance and features:
1. The bright digital tube is clearly displayed, and it can be clearly read whether it is used during the day or at night.
2. The sensor can be replaced at will by using the 2P terminal. When you need to use other probes, you can replace it at will.
3. ABSA material shell, not only exquisite and beautiful, but also 1.8mm ultra-thick design, high mechanical strength, good electrical performance.
4. Wiring input and output design, more convenient to use in various industrial equipment, multi-strand wire 300V/20A over-configuration, safe and reliable
5. High cost performance, with better support and better service.Stainless steel shell, resin seal treatment, waterproof and not rust,
not general deformation.Our probe is designed to be electrically isolated, so you can use it safely
Specification:
Name: Microcomputer Temperature Controller
Model: XH-W3002
Temperature Measurement Range: -50 to 110 degree centigrade
Measurement Accuracy: +/- 0.2 degree centigrade
Control Accuracy: +/- 0.1 degree centigrade
Measuring input: NTC 10K L = 1M waterproof probe
Input Power: DC 110-220V
Output Power: 1500W(MAX)
Output Type: Direct output (input/output synchronization)
Output Current: 10A (MAX)
Installation Pitch: 73mm/2.87'' (aperture 4mm)
Size: 61mm/2.4’’x45mm/1.77’’x31mm/1.22’’
With fixing screw hole, convenient for install and fixed.
Weight: 16g
