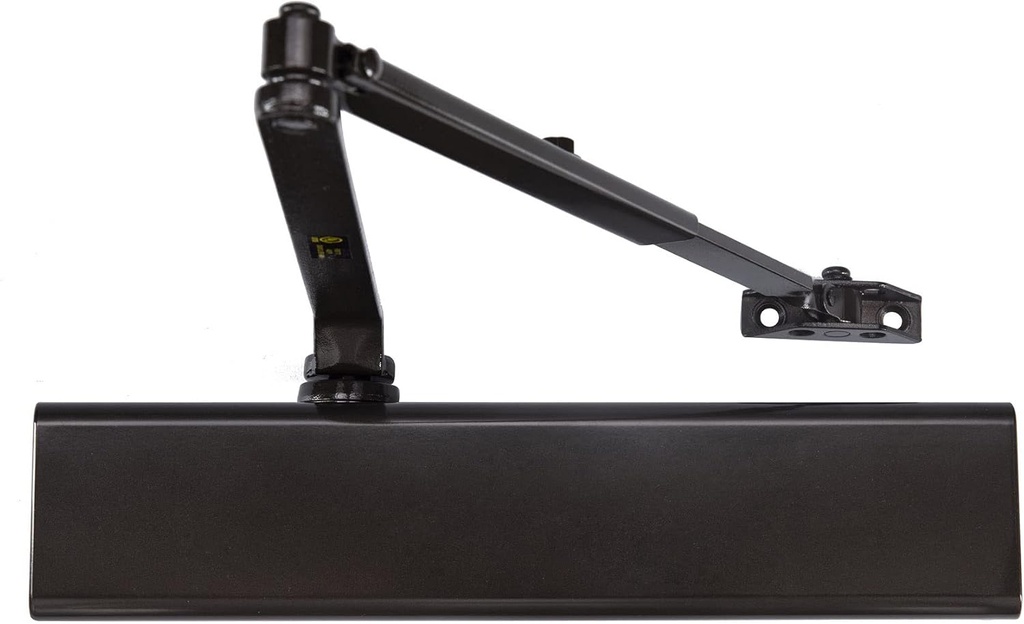

LYNN HARDWARE Heavy Duty Commercial Door Closer, DC8016 Automatic Door Closer, Surface-Mounted Auto Door Closer, Size 1-6 Commercial Door Closer Heavy Duty for Heavy Traffic Areas, Dark Bronze
15 sold in last 24 hours
- DOOR CLOSERS COMMERCIAL USAGE: The DC8016 (Slim Line) Automatic Door Closer from LYNN HARDWARE suits high-traffic entrances, such as aluminum storefronts, factories, schools, restaurants, and other public places. This is a door automatic closer for doors that weigh up to 150kg (330lbs max) and are (800-1500mm, 31-60 inch) wide. Also, it is a non-handed closer that will work on left- or right-handed doors exposed to extreme temperatures.
- MATERIAL: This door hydraulic closer is manufactured from US26D satin chrome-plated cast aluminum, wrought steel arm. It features a heat-treated piston and a powder-coated body to enhance corrosion resistance. The heavy-duty door closer features three valves for adjustable closing speed, latching speed, and backcheck. This automatic door closer latches while maintaining quiet operation.
- CERTIFICATIONS: These auto close door hinges have a UL-certified three-hour fire rating. LYNN HARDWARE closers also carry the ANSI / BHMA A156.4 certification. As ANSI Grade 1 commercial door hardware with 2 million cycles required, DC8016 suits medium to high-traffic applications, such as interior and exterior doors of department stores, offices, and more. This model also complies with accessible design standards.

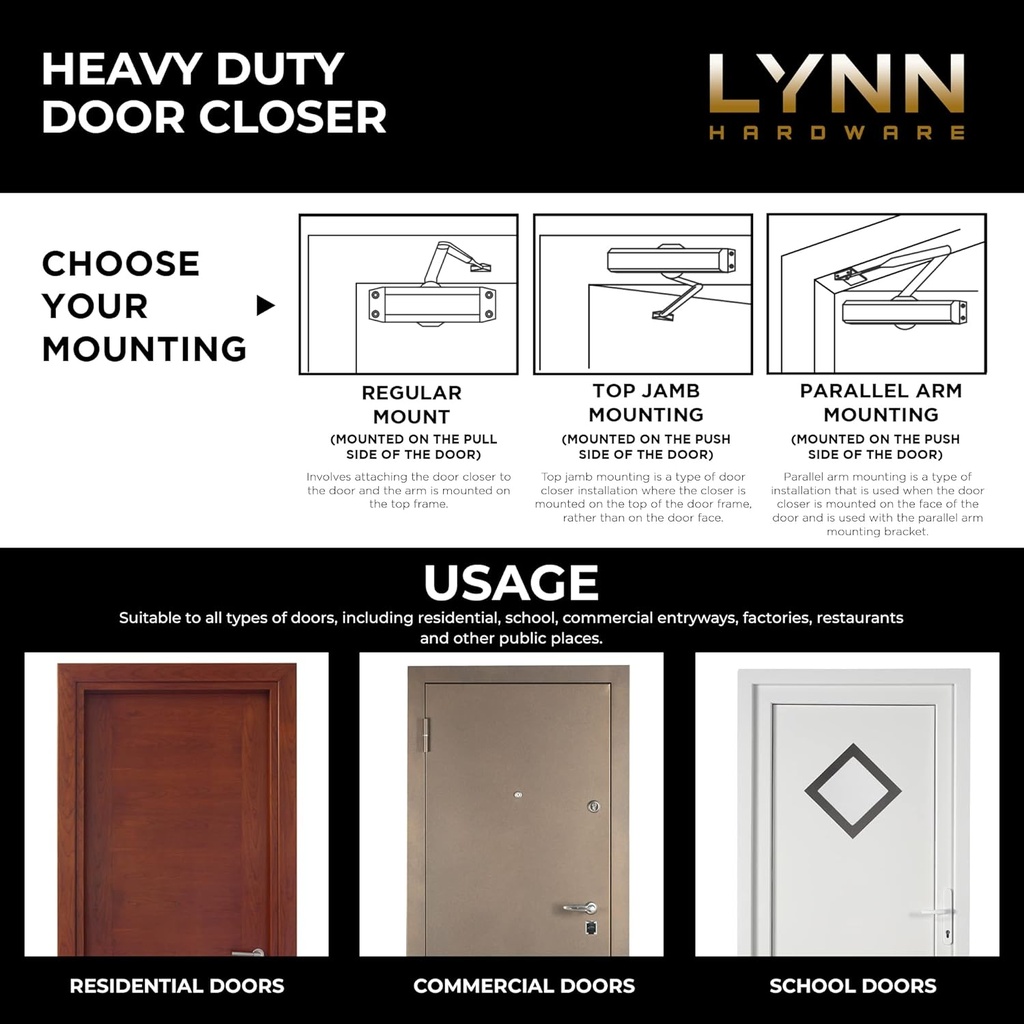

- INSTALLATION: Every pack of commercial door closer we provide contains all the necessary hardware, such as brackets and soffit plate, for installation using any of the 3 mounting types. The mounting options for our surface-mounted door closer are regular arm mounting (most power-efficient), top jamb mounting (fairly power-efficient), and parallel arm mounting (with 25% less power efficiency than the other 2 options).
- SPECIFICATIONS: This door closer weighs 7.4 pounds. Its screw/bolt pattern is 12" c-c wide and 3/4" c-c high. It has a footprint height of 2-7/8" (54 mm) and a weight of 13-1/16" (332 mm). This automatic door closer's projection is 2-1/8" (54 mm). It can deliver a fixed spring force #1-6 of 2-14 pounds or more of closing force.
Tags |
| Main Specification | |
|---|---|
| Specification Met | Ul or Ansi |
| Brand | Lynn Hardware |
| UPC | 037182315813 |
| Item Package Quantity | 1 |
| Product information | |
| Item model number | Dc8016-Bc-Da |
| Product Dimensions | 14.06 X 5.51 X 2.91 Inches |
| Color | Dark Bronze |
| Size | Heavy Duty |
| Technical Details | |
| Recommended Uses For Product | High-Traffic Entrances or Aluminum Storefronts or Factories or Schools or Restaurants or Public Places |
| Item Weight | 6 Pounds |
| Part Number | Lynn-Dc8016-Bc-Da-Duro |
| Batteries Required? | No |
| Batteries Included? | No |
| Installation Type | Screw-In |
| Style | Grade 1 |
| Manufacturer | Lynn Hardware |
| Material | Aluminum |
| Item Weight | 6 Pounds |
| Exterior Finish | Bronze |
| Item details | |

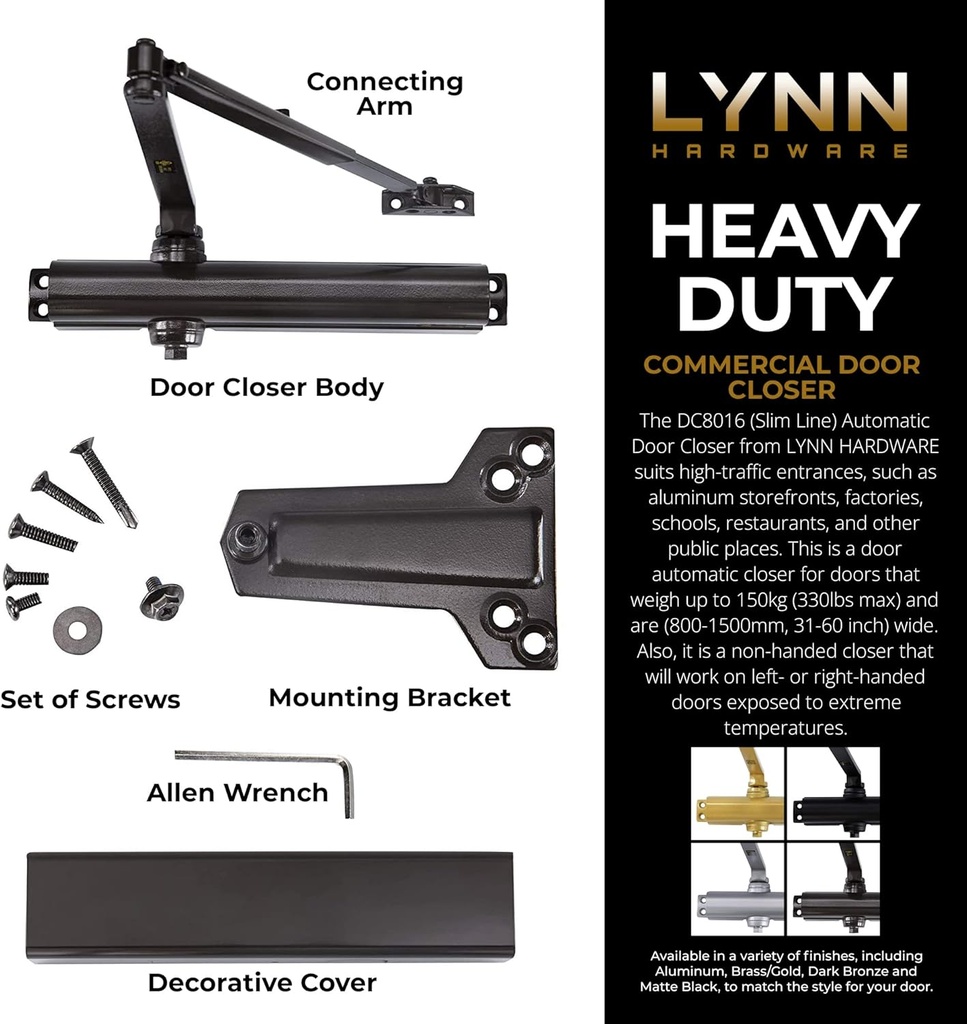

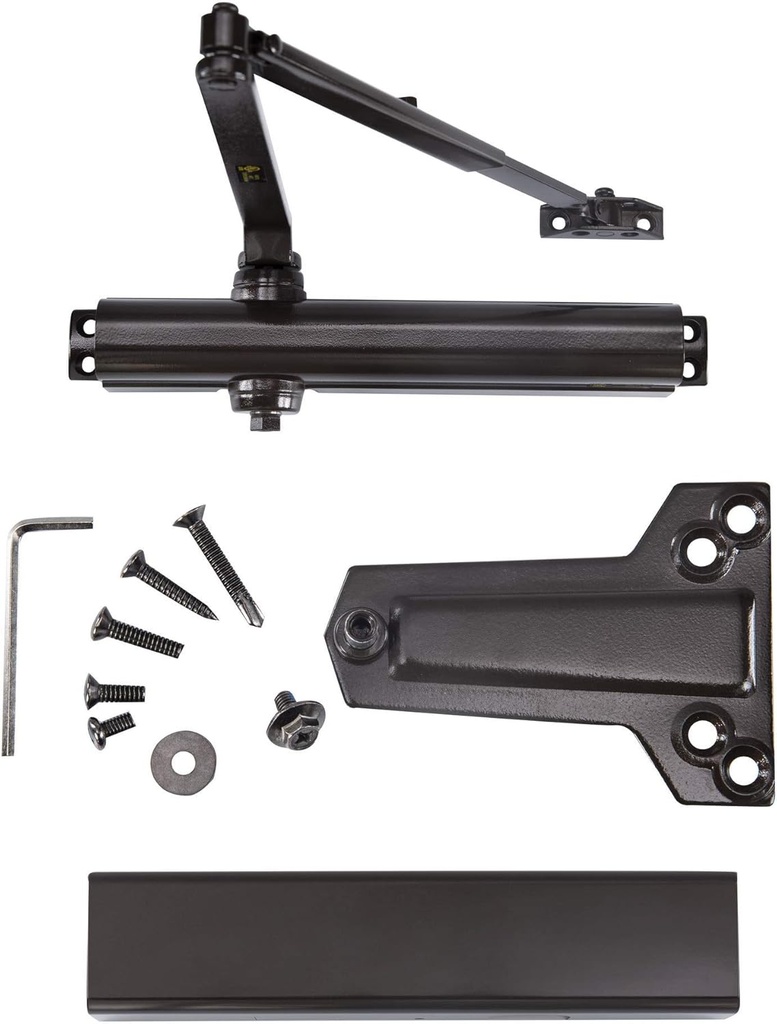

| Included Components | Brackets And Soffit Plate To Allow Regular/Top Jamb/Parallel Arm Installations |
| Others | |
| Product Type | Door Closer |
