NANPU 1/4" NPT Compressed Air Filter Regulator Combo
- Regulator With 150 psi Gauge, Water Separator,Semi-Auto Drain
- Air Inlet and Outlet: 1/4" NPT
- Max Pressure : 145 psi; Operate Pressure Range: 0-125 psi;Temperature Range: 40-140°F

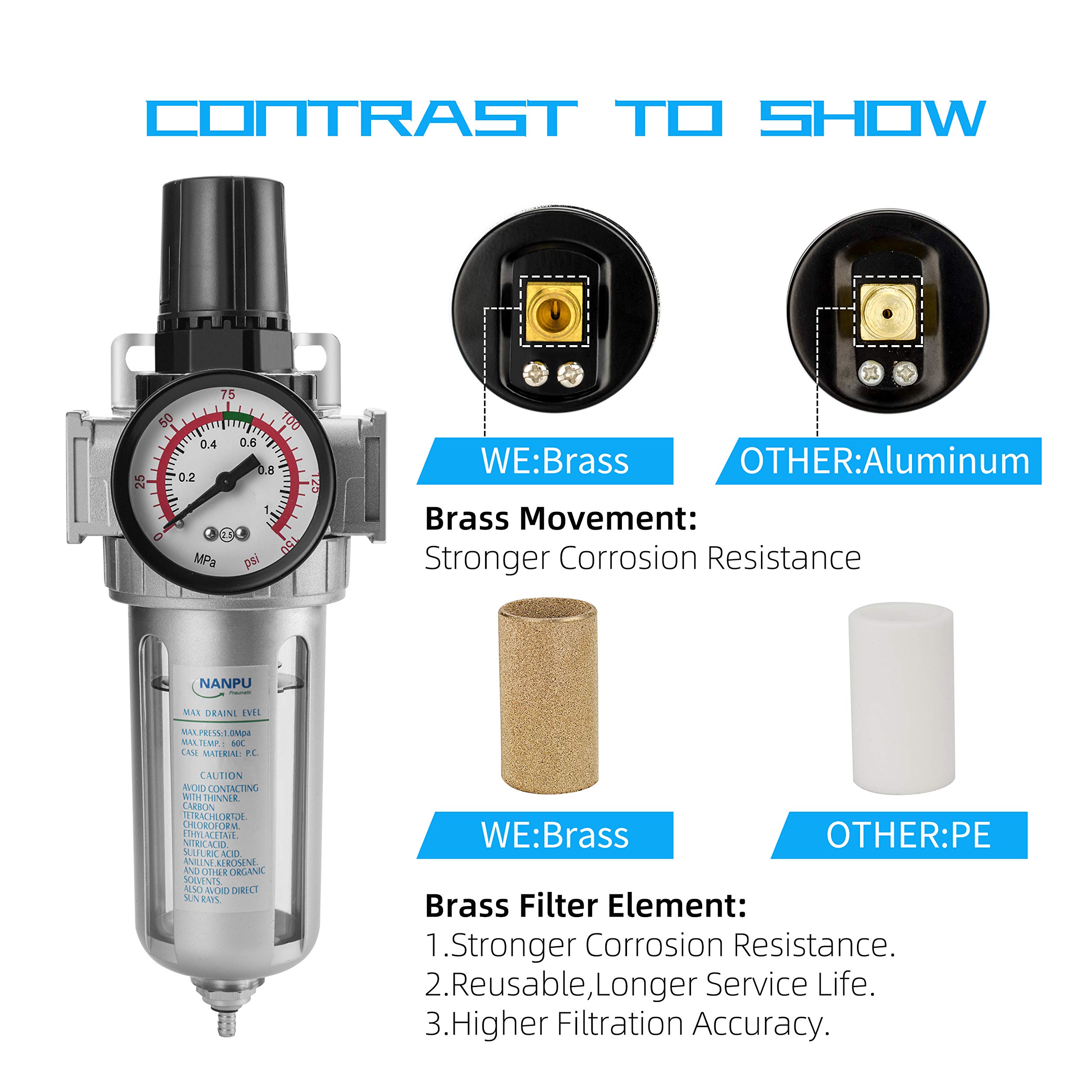

- 5 Micron Brass Filter Element, Excellent Filtering Performance, Much Longer Life and Reuse Feasibility
- A pair of Air Coupler& Plug Kit, 1 x Thread Seal Tape included.
| Manufacturer | NANPU |
| Brand | Nanpu |
| Item Weight | 1.37 Pounds |
| Package Dimensions | 12.95 x 4.65 x 3.31 inches |
| Item model number | SFR200 |
| Date First Available | 2019, July 21 |
| Product Type | Filter & Regulator Combos |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGBACOYNWMDQV |
Category |
Filtration , Compressed Air Treatment , Filters, Regulators & Lubricators , Filter & Regulator Combos |
Tags |
Estimated shipping
Select a product to estimate shipping.NANPU 1/4" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI
Regulator With 150 psi Gauge,Oil & Water Separator,Semi-Auto Drain
Air Inlet and Outlet: 1/4" NPT
Max Pressure : 145 psi; Operate Pressure Range: 0-145 psi
5 Micron Element Standard
Temperature Range: 40-140°F
NANPU 3/8" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI
Air Inlet and Outlet: 3/8" NPT
NANPU 1/2" NPT Compressed Air Filter Regulator Combo, Air Filter Pressure Regulator Gauge Kit Water Separator w/Pressure Gauge, 150PSI
Air Inlet and Outlet: 1/2" NPT
SFR200 1/4"NPT
SFR300 3/8"NPT
SFR400 1/2"NPT
Installation and Operating:
Preparation
The assembly of all calibration shall meet the maximum flow requirement.
Please clean the port and fitting before installation, it will effectively avoid bring dust to the air path.
Pay attention to direction of air flow and arrow pointing on product body if correct, minding port and thread size if match.
Pressure Adjustment
Pull up the knob of pressure gauge, rotate:
If you do clockwise rotation, pressure will rise steadily.Pressure will down when you rotate counterclockwise.
Stop turning after reaching the required index and lock down the knob,forget this step you may face leakage problem.
Dial Reading
Make sure that the pressure gauge is tightly installed on the main body, and pay attention to whether the reading rises and falls smoothly while adjusting pressure.
Drainage
Drainage column will automatic excrete if there is no pressure,and it will close during the air flow passing. When the water level is beyond upper limit, drainage is necessary, otherwise that will cause poor dehumidification.
Please be careful to use a wrench to tighten the fitting.
The first installation may have an excretion reaction(Not leakage, for the first time the internal pressure is different from the outside, it is necessary to discharge the excess air first). In this case, please wait for a while.
