NEWTRY 10T Low Profile Hydraulic Ram Jack, 1" Stroke Multi-Section

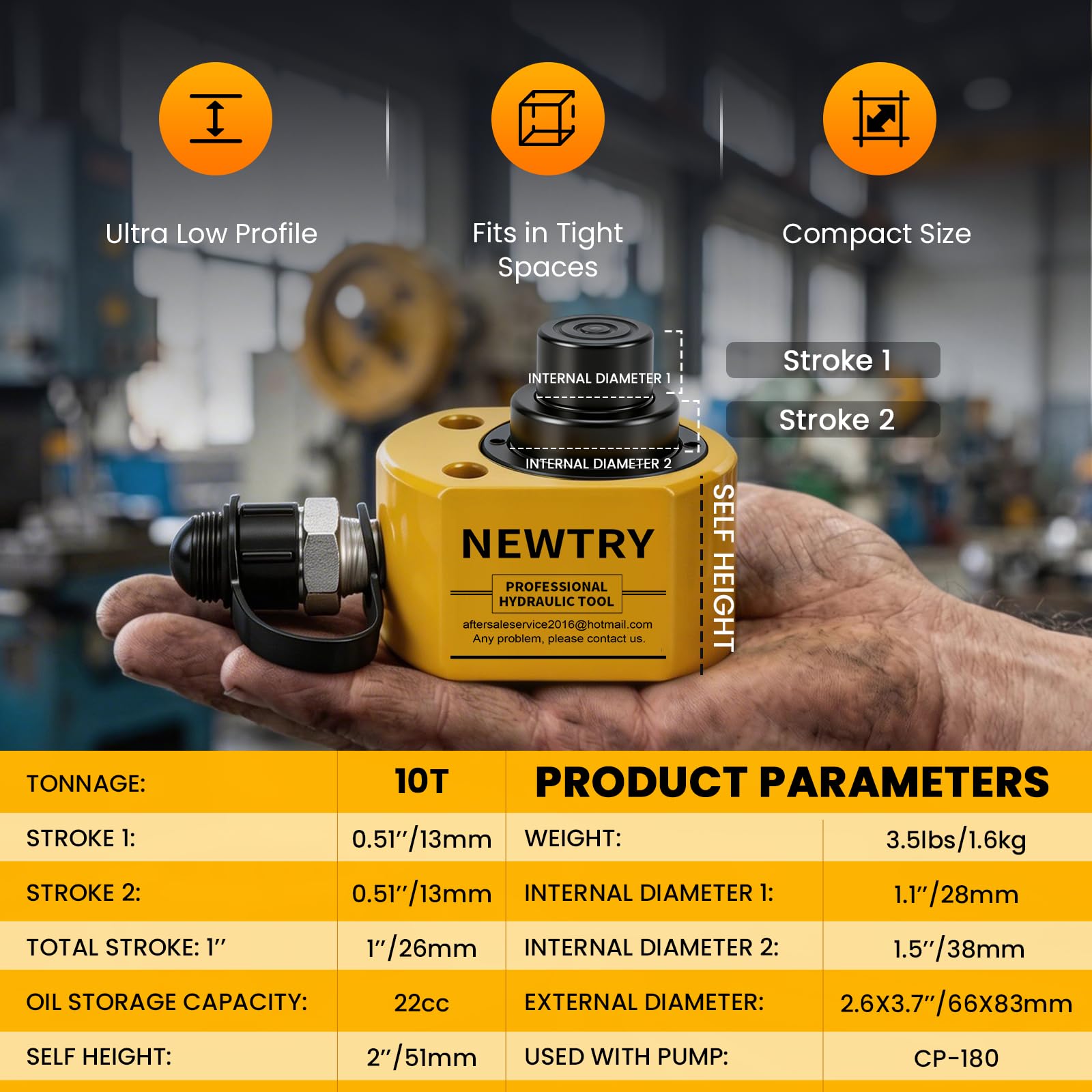

- ▷Technical Specifications---Tonnage: 10T | Stroke 1: 0.5 inch/13MM | Stroke 2: 0.5 inch/13MM | Stroke 3: / | Total stroke: 1 inch/26MM | Oil storage capacity: 22CC | Self height: 2 inches/51MM | Weight: 3.5 lbs/1.6kg | Compression area: 1.75 square inches/11.3cm2 | Inner diameter 1: 1.1 inches/28mm | Inner diameter 2: 1.5 inches/38mm | Inner diameter 3: / | External diameter: 2.6x3.3 inches/66x83mm
- ▷Multi - Section Design for Narrow Spaces---This low-profile hydraulic jack stands at just 2 inches in height, yet it has a stroke of up to 1 inch. Unlike regular jacks, its multi - section design enables it to be used in much narrower and lower spaces. It effectively maximizes the jack's stroke within the body height, allowing you to lift weights to a greater height. This makes it a more convenient and practical choice for various applications.
- ▷Durable Construction for Long-Term Use---This ram jack has a smooth surface with distinct ring marks, which not only ensure smooth lifting but also provide a good grip. The piston is treated with a blackening process, significantly extending its lifespan. This durable construction means you can rely on it for long - term use without frequent replacements.
- ▷Convenient Mounting Options---Featuring two pre-drilled holes, this multi - section jack offers convenient mounting options. Whether you need to install it in a workshop, these holes simplify the mounting process. Just note that after pressure release, the piston needs external gravity to retract.
- ▷Leak - Proof and Dust - Resistant Design---The joints of this hydraulic jack are equipped with a plastic dust - proof cap. It prevent oil leakage and keep dust away from the internal components, maintaining the jack's performance over time. This leak - proof and dust - resistant design ensures that the jack remains in good working condition.
| Material | Metal, Steel |
| Minimum Height | 2 inches |
| Manufacturer | Newtry |
| Unit Count | 1 Count |
| Maximum Lifting Height | 1 inches |
| Brand | Newtry |
| Number of Items | 1 |
| Load Capacity | 10 ton |
| Vehicle Service Type | Car |
| Colour | yellow |
| Global Trade Identification Number | 05353857842893 |
| Item Weight | 1.6 kg |
| Material Type | Metal, Steel |
| Manufacturer Part Number | YX490 |
| Model Number | YX490 |
| Style Name | Hydraulic |
| Item Highlight | Compact For Tight Spaces, Portable Lifting For Machinery, Bridges & Construction Sites |
| Product Type | Floor Jacks |
| Compatible with Vehicle Type | Car |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
Estimate delivery times: 12-26 days (International).
3-6 days (Domestic)
3-6 days (Domestic)
Guaranteed Safe Checkout
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
Confidence-backed purchases with 30-day return support.
Free return pickup available
We’ll handle returns from your doorstep at no extra cost.
USD |
BRSWGC33OICROEIY |
Category |
Tools & Equipment , Garage & Shop , Vehicle Lifts, Hoists & Jacks , Jacks , Floor Jacks |
Tags |
Estimated shipping
Select a product to estimate shipping.The NEWTRY 10T Low Profile Hydraulic Ram Jack is a compact and powerful lifting tool designed for a variety of applications. Its unique multi-section design allows it to operate effectively in tight spaces, providing reliable support when you need it most.
Key Highlights
- Compact Design: Stands just 2 inches tall, maximizing space utilization.
- Versatile Stroke: Offers a total stroke of 1 inch, adaptable to different lifting needs.
- Durable Steel Construction: Built with metal and steel for long-lasting performance.
- Lightweight & Portable: Weighing only 1.6 kg, it’s easy to move around the job site.
- Suitable for Tight Spaces: The multi-section design allows for operation in narrow areas.
Useful Facts
- Tonnage: 10 Ton
- Stroke (Section 1 & 2): 0.5 inch (13mm)
- Stroke (Section 3): /
- Total Stroke: 1 inch (26mm)
- Oil Capacity: 22cc
- Self Height: 2 inches (51mm)
- Weight: 1.6 kg (3.5 lbs)
- Compression Area: 1.75 square inches (11.3 cm2)
- Inner Diameter (Section 1 & 2): 1.1 inches (28mm) & 1.5 inches (38mm)
- External Diameter: 2.6 x 3.3 inches (66 x 83mm)
Good Fit For
- Automotive repair and maintenance
- Light machinery lifting
- Construction site support
- Bridge maintenance
- General workshop use
