24"-Dia. Exhaust Fan, Standard Duty Belt Drive Less Drive Package

Price:

$ 841.47
24"-Dia. Exhaust Fan, Standard Duty Belt Drive Less Drive Package
  2. Shop
  3. 24"-Dia. Exhaust Fan, Standard Duty Belt Drive Less Drive Package
24-Pack 12" x 4" x 3.5" Roll Cake Boxes, Loaf Pumpkin Roll Boxes, White Bakery Boxes with Window, Auto-Popup Pastry Boxes
24-Pack 12" x 4" x 3.5" Roll Cake Boxes, Loaf Pumpkin Roll Boxes, White Bakery Boxes with Window, Auto-Popup Pastry Boxes
$ 60.48
$ 60.48
2pcs Full Copper Door Eye Cover Peephole Privacy Protector Easy Install for Home Apartment
2pcs Full Copper Door Eye Cover Peephole Privacy Protector Easy Install for Home Apartment
$ 29.98
$ 29.98

24"-Dia. Exhaust Fan, Standard Duty Belt Drive Less Drive Package

http://gofinchkart.com/web/image/product.template/18413/image_1920?unique=3c9fa48
11 sold in last 24 hours
  • Item: Exhaust Fan
  • Type: Standard Duty Belt Drive Less Drive Package
  • Blade Dia.: 24"
  • CFM Range: 4105 to 6003
  • Exhaust/Supply Fan Motor HP: 1/4 to 3/4

$ 841.47 841.47 USD $ 841.47

Not Available For Sale

($ 841.47 / Units)
7 people are viewing this right now
  • Manufacturer
  • Control Method
  • Specification Met
  • Electric fan design
  • UPC
  • Number of Blades
  • Style
  • Voltage
  • Brand
  • Recommended Uses For Product
  • Product Type

This combination does not exist.

Electric Fan Ventilation Fans
Contact Us
Tags

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

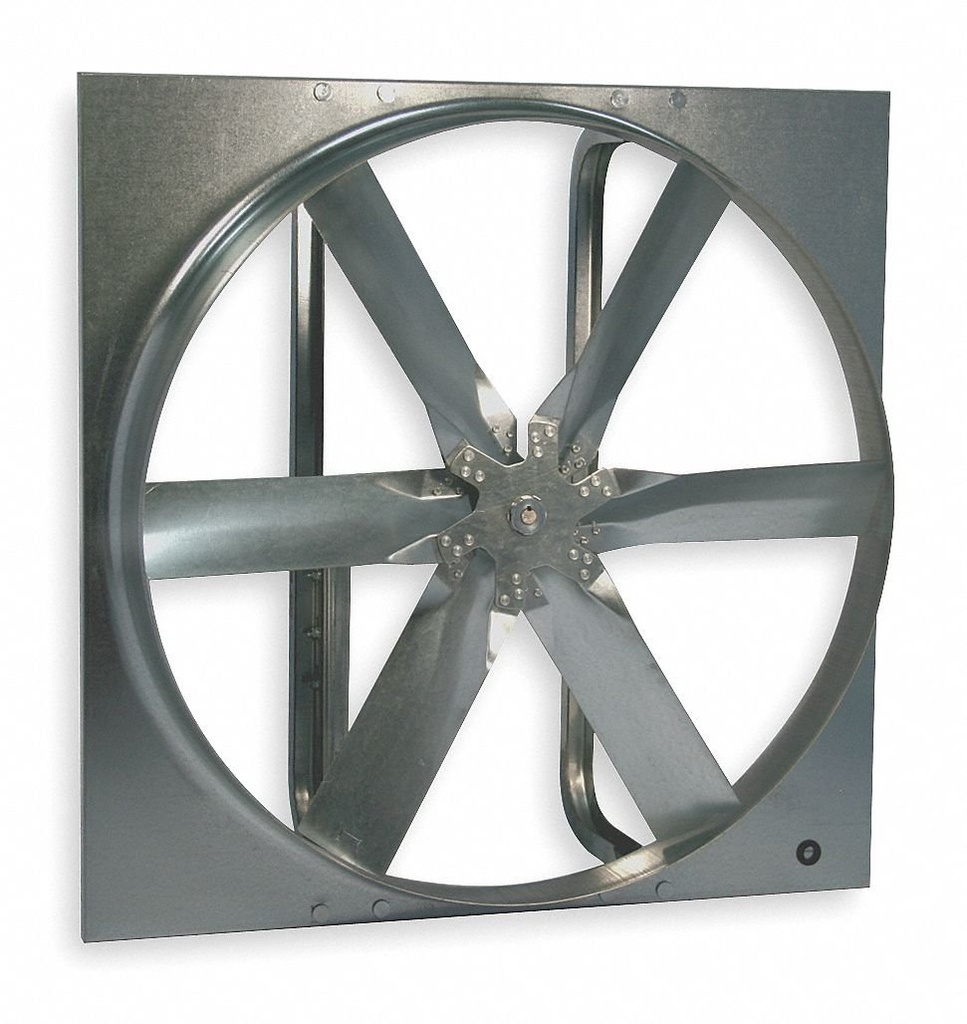

Dayton standard-duty belt-drive 24" exhaust fan is designed to be used in commercial applications that require high volumes of air at low static pressures. The fan features a 6-blade galvanized-steel propeller, rigid drive-frame rails, and a 1-pc. motor/bearing plate. Variable pitch and adjustable motor pulley optimize fan performance. Mount fan vertically for exhaust operation; horizontally for supply.Drive package sold separatelyAir handling-quality bearings meet a minimum of L10-100,000 hr. UL and C-UL ListedUnassembled
Note: OSHA complying guards are required when a fan is installed within 8 ft. of floor, working level, or within reach of personnel; order No. 1WBU3. Review OSHA codes and UL standards.

Item: Exhaust Fan
Type: Standard Duty Belt Drive Less Drive Package
Blade Dia.: 24"
CFM Range: 4105 to 6003
Exhaust/Supply Fan Motor HP: 1/4 to 3/4
Exhaust/Supply Fan Item: Exhaust Fan
Drive Package With Motor Included: No
Max. Ambient Temp. (F): 104
Width (In.): 28
RPM Range: 923 to 1352
Height (In.): 28
Bearing Type: Sealed Pillow Block
Max. Depth (In.): 18
Venturi Clearance Dia. (In.): 24-3/8
Venturi Depth (In.): 4-3/8
Flange Depth (In.): 1
Mounting Position: Horizontal or Vertical
Frame Material: Galvanized Steel
Propeller Material: Steel
Number of Blades: 6
Bearing Size (In.): 3/4
Shaft Dia. (In.): 3/4
Agency Compliance: AMCA
Requires: Wall Collar and Shutter For New Installation
Wall Housing Item No.: 3FKF8
Wall Collar Stock No.: 1WBV1
Weatherhood No.: 1WBV9
Galvanized Wall Shutter No.: 1C746
Aluminum Wall Shutter No.: 3C308
Fiberglass Wall Shutter No.: 5C215
Intake Guard No.: 1WBU3

Package Dimensions

2 x 2 x 2 inches

Main Specification
Manufacturer Cai-Dayton
Control Method App
Specification Met Osha
Electric fan design Exhaust Fan
UPC 696333261197
Product information
Number of Blades 6
Technical Details
Style Modern
Voltage 12 Volts
Brand Dayton
Item details
Recommended Uses For Product Exhausting
Others
Product Type Electric Fan
