uxcell N.C. Recessed Wired Security Window Door Contact Sensor Alarm Magnetic Reed Switch White RC35
10 sold in last 24 hours
- Current: 0.1A ; Voltage: 200V ; Power Rating: 2W; Action Distance: 10-15mm

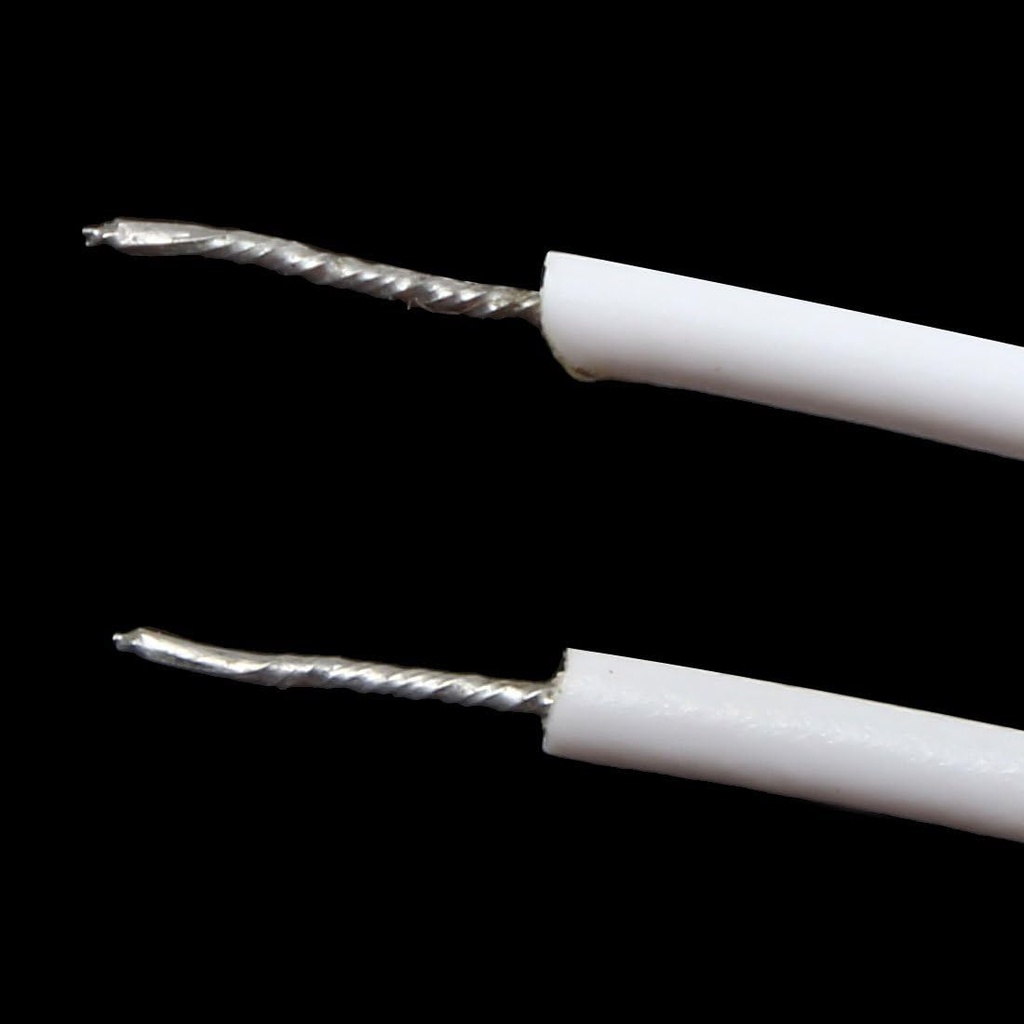

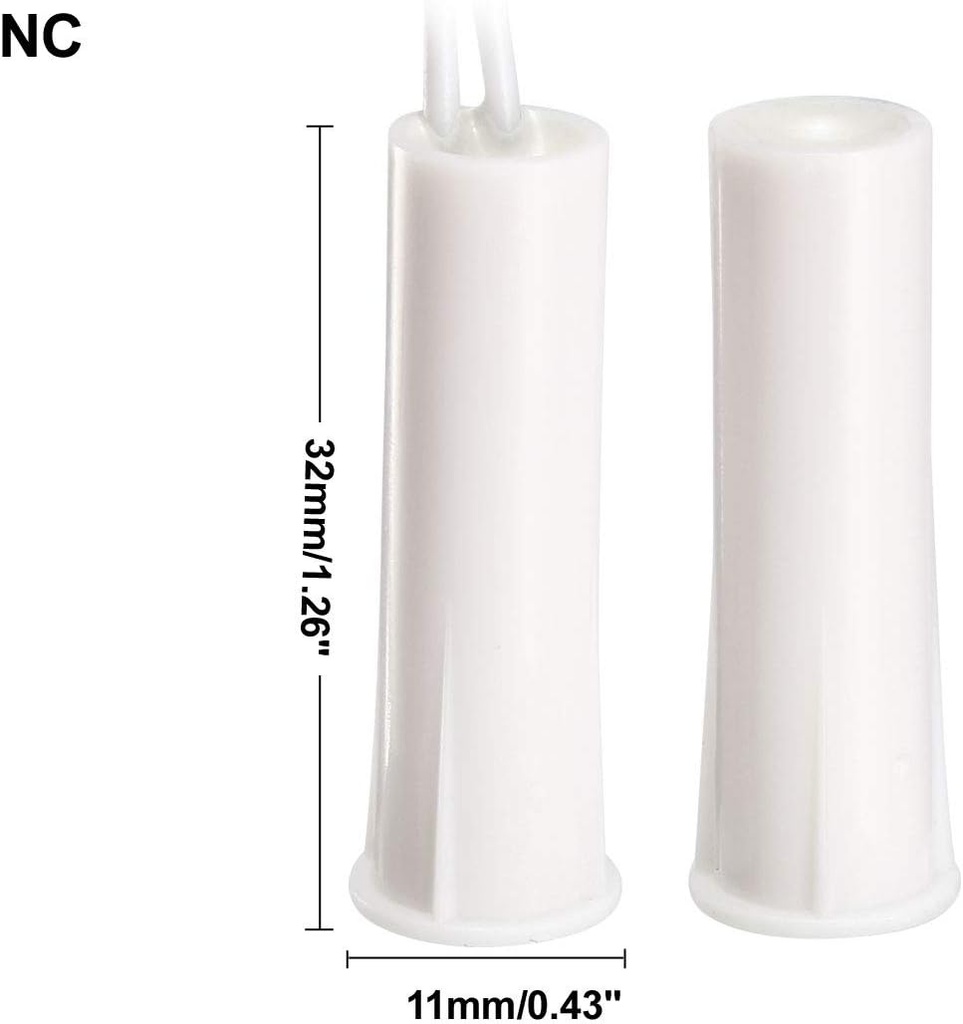

- Cable Length: 25cm/9.8"; Total Size: 32mm x 11mm/1.26" x 0.43" (L*D)
- This Recessed Door Contact Sensor works with any access control or burglar alarm system available

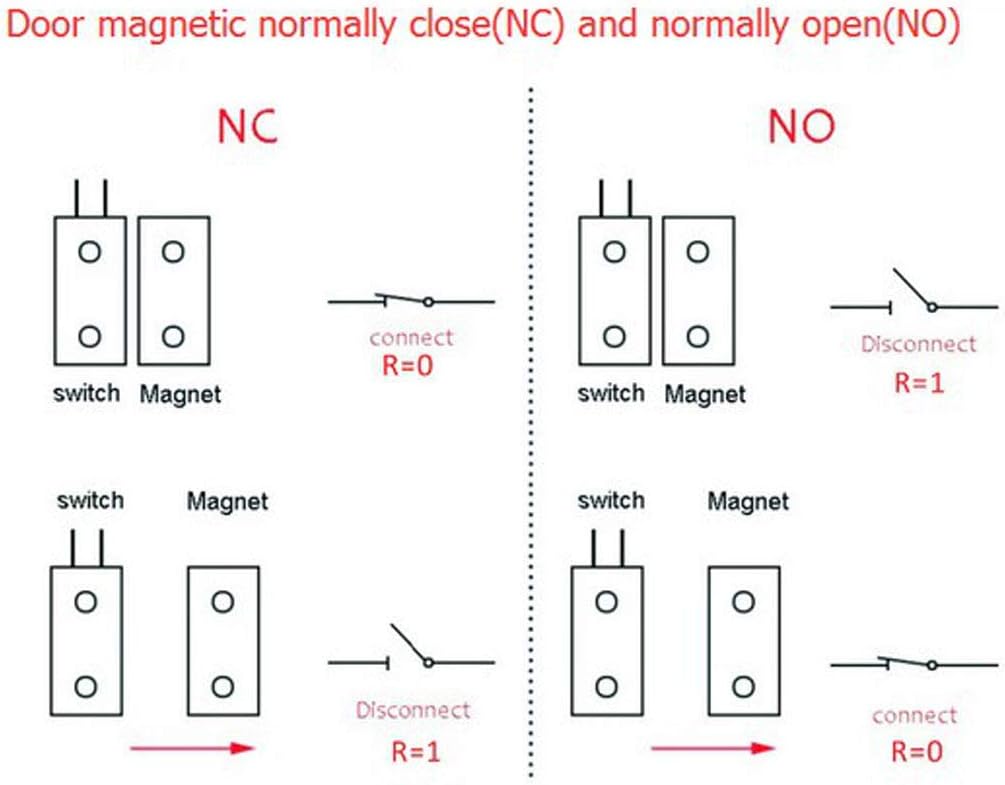

- N.C. means Normally Closed: When the magnet together, the circuit is conductive( light on ); when the magnet separates, the circuit is not conductive ( light off ).
- The Magnetic Door Switch must be installed according to the sensing distance. It can only provide a switch signal to the transmitter. It cannot directly load the power, nor directly connect the lamp!
Tags |
Technical Details
| Manufacturer | uxcell |
|---|---|
| Part Number | a18051500ux0025 |
| Item Weight | 0.634 ounces |
| Product Dimensions | 5.51 x 3.94 x 0.39 inches |
| Item model number | a18051500ux0025 |
| Material | ABS |
| Item Package Quantity | 1 |
| Switch Style | Metal |
| Batteries Required? | No |
| Brand | Uxcell |
