AC 80-260V 100A Hardwired Power Meter, LCD, Split-Core, Energy Monitor
- 1. Monitors key AC power readings in one panel display: This hardwired AC power meter shows voltage, current, wattage, kWh energy, frequency and power factor, helping you watch generator load, RV power, workshop circuits or appliance consumption in real time
- 2. Split-core CT makes installation easier: The included 100A current transformer clamps around one live conductor, so you do not need to cut the monitored wire; for 120/240V split-phase systems, monitor one leg per meter or use separate meters as needed
- 3. Wide AC range for common electrical panels: Designed for 80-260VAC circuits with 0-100A current measurement and up to 22,000W rated power, this meter is useful for household, garage, generator, RV and light commercial monitoring projects
- 4. Power-off memory and visual overload alarm: The meter can store energy data and settings after power loss, and the backlight/power display flashes when the preset power threshold is exceeded, giving a clear visual warning for load monitoring
- 5. Clear LCD display for practical troubleshooting: The compact panel meter provides quick readings for energy use and load balancing, with 1.0 grade monitoring accuracy; it is intended for hardwired installation and should be installed with proper electrical safety precautions
| Manufacturer | Wenzhou Morning Electronics Co., LTD |
| Unit Count | 1 Count |
| Brand | MORNING GROUP |
| UPC | 703931915688 |
| Number of Items | 1 |
| Power Source | Corded Electric |
| Compatible Devices | Standard AC Electrical Circuits (80-260V, 100A) |
| Colour | Black |
| Style | 1 Piece AC 100A Meter(Split Core Transformer) |
| Item Weight | 0.16 kg |
| Number of Packs | 1 |
| Measurement Type | Ammeter, Multimeter, Voltmeter |
| Part Number | ekspqcmdyw1126t |
| Model | PZEM-022 |
| Maximum Operating Voltage | 260 volts_of_alternating_current |
| Style Name | 1 Piece AC 100A Meter(Split Core Transformer) |
| Item Dimensions | 3.42 x 0.95 x 1.85 inches |
| Item Highlight | RV, Energy Monitor, for Generator, Panel and Appliance Load, Split-Core Current Transformer, Hardwired |
| Product Type | Power Meters |
| Minimum Operating Voltage | 80 |
| Maximum Alternating Current | 100 A |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGGALPIFWMCDB |
Category |
Test, Measure & Inspect , Electrical Testing , Power Meters |
Tags |
Estimated shipping
Select a product to estimate shipping.FAQ
Q1: Does the current transformer need to distinguish between the L line and N line?
A1: No, it doesn't. Just choose one of them. However, please do not pass both the neutral and live wires through it simultaneously.
Q2: Does the current transformer need to be adjusted according to the direction of current flow?
A2: Not at all. This product is very user-friendly.
Q3: what is the inner diameter of the split core CT?
A3: It's approximately 0.5 inches wide, which accommodates the vast majority of wire diameters that meet AWG specifications.
Q4: Can the wiring of the current transformer be extended?
A4: It's not recommended to extend the wiring. When the current transformer's wire length exceeds 50 centimeters, it significantly reduces accuracy.
Q5: How long are the leads between the unit and the split transformer inductive pickup?
A5: About 22 cm (8.6 inches). You can extend the line longer, but do not exceed 50 cm (19.6 inches). Too long will cause the accuracy to decrease.
Specification parameters
1. Working voltage: 80 ~ 260VAC
2. Test voltage: 80 ~ 260VAC
3. Rated power: 100A/22000W
4. Operating frequency: 45-65Hz
5. Measurement accuracy: 1.0 grade
Main Function
1. Electrical parameter measurement function (voltage, current, active power, energy, frequency, power factor)
2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
3. Power alarm threshold preset function (can set power alarm threshold).
4. The energy can be reset use the key.
5. Store data when power off.
6. Large-screen LCD
7. Backlight function.
Display interface is large-screen LCD, it can display six parameters at the same time.
1. Power: test range: 0~22000W, Starting measure power: 0.5W
2. Energy: test range: 0~999kWh
3. Voltage: test range: 80~260V
4. Current: test range: 0~100A,Starting measure current: 0.02A
5. Frequency: test range: 45~65Hz
6. Power factor: test range: 0~1PF
Backlight Function
Blue backlight can be turned on/off manually,the last test data is stored automatically when the power aupply abruptly lose.

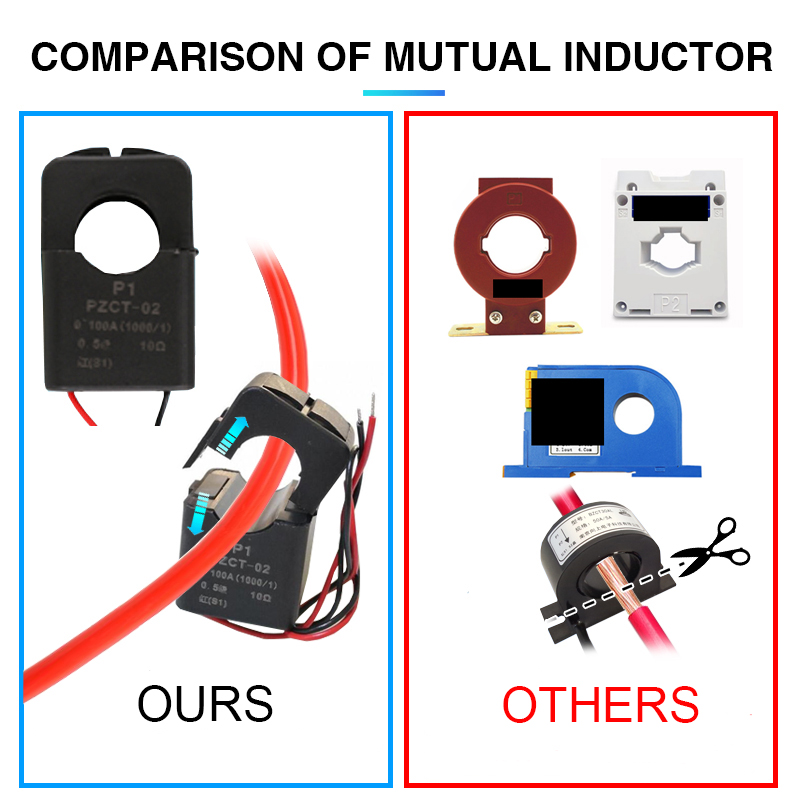

Comparison of Mutual Inductor
Open design is easy to use
Don't need to cut off the wire

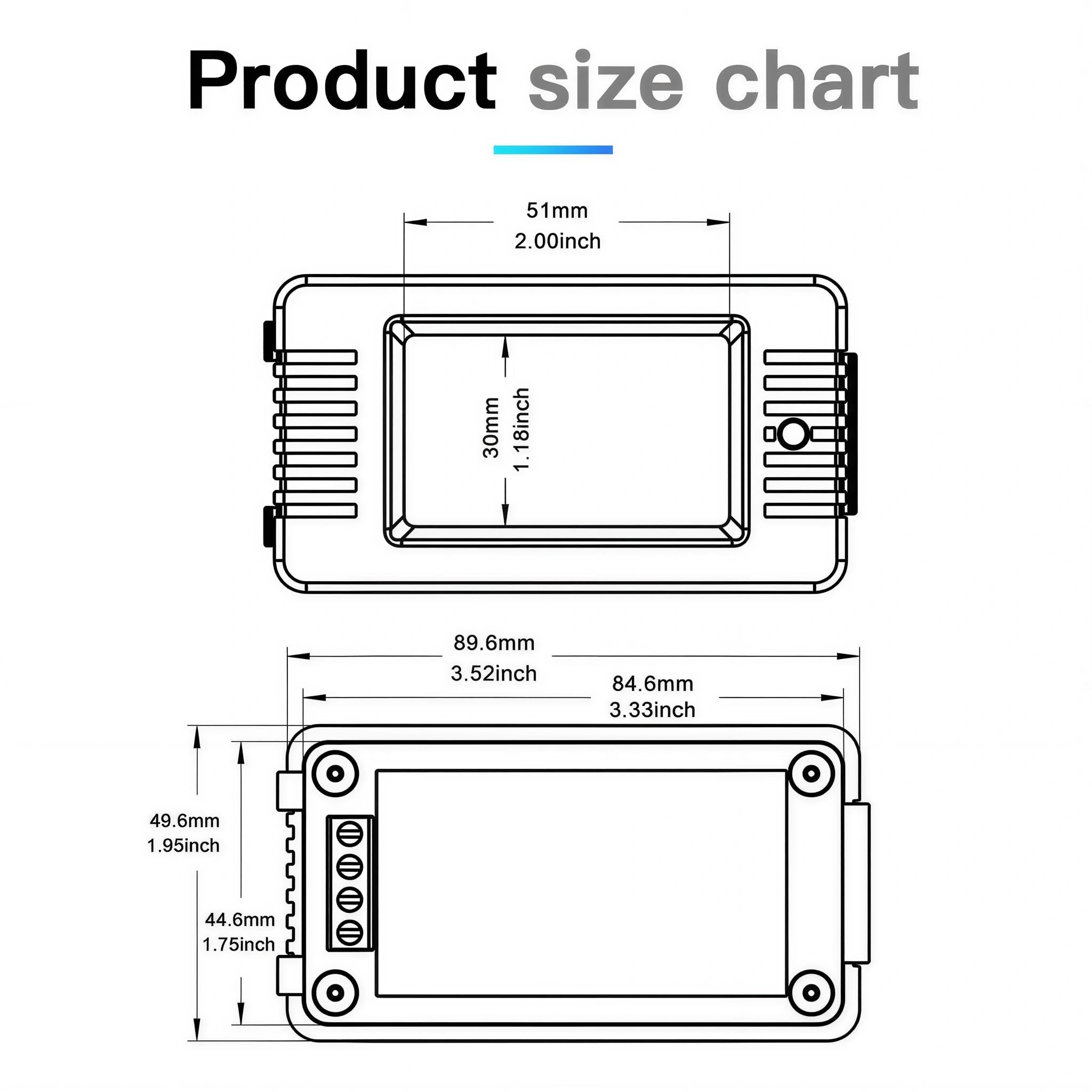

product size chart
