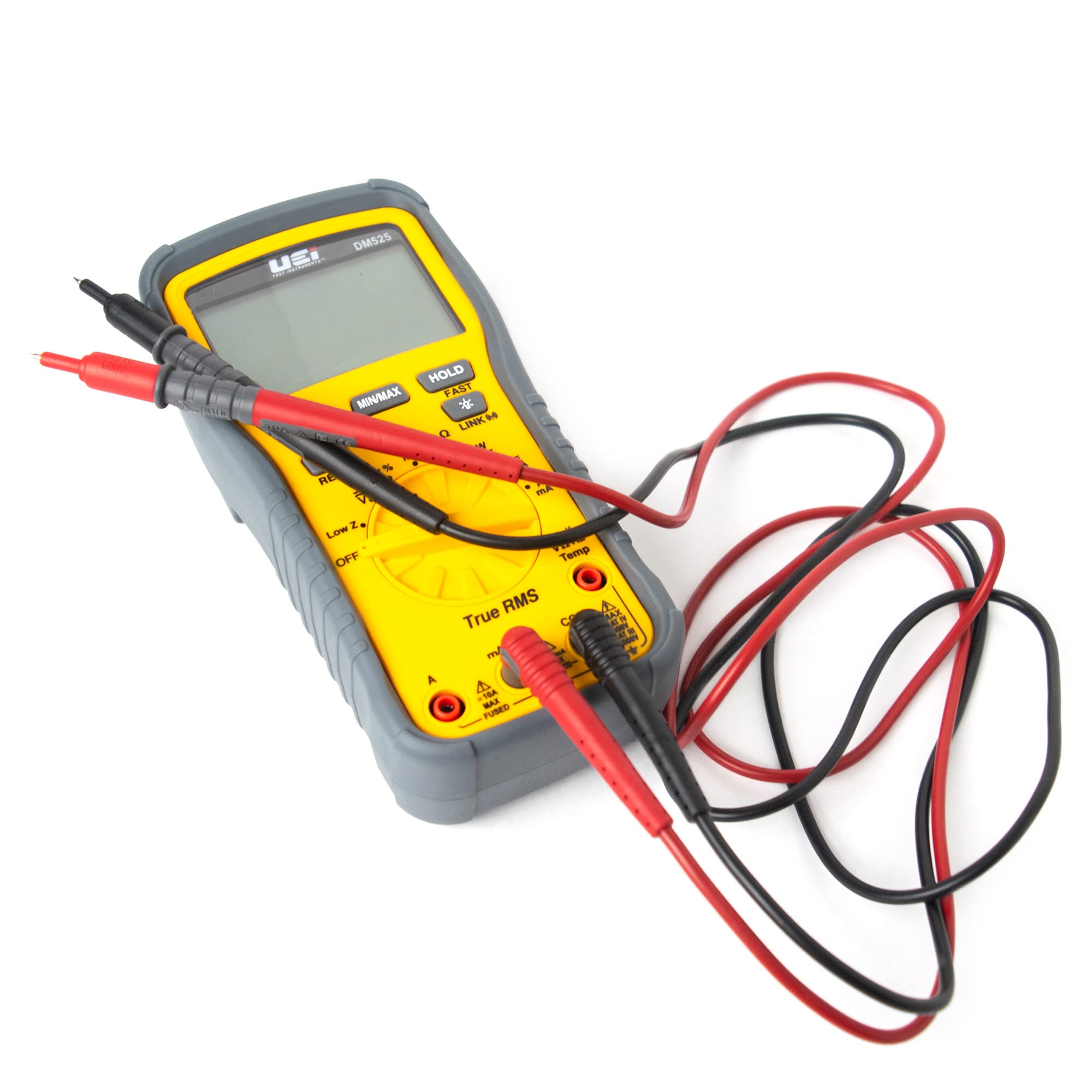

UEi Test Instruments DM525 Wireless Digital Multimeter w/Power Factor Low Z
- 📡 Wireless Capability – The DM525 includes a free app that records your readings wirelessly. The app allows you to log and record readings, and provides a graph summary of your recording.
- 👷🏼♂️ High Safety Rating – The DM525 offers top of the line safety with rantings of CATIV at 600V and CATIII at 1000V.
- 🔧 Industrial Grade Testing – The DM525 can perform any test you need with top-of-the-line capabilities. Our multimeter measures AC/DC 1000V, 10 Amps AC, 20 Amps DC, Resistance 50MΩ, Continuity, Diode Testing, Frequency 99.99 kHz, Capacitance 9999μF, Temperature -49°-1112°F, Duty cycle 99.99%, Microamps/Miliamps, Watt (Power factor), and Low Z.
- Impeccable Speed & Accuracy- The DM525 is a True RMS Multimeter ensuring accurate readings with irregular sine waves. The Multimeter also includes a relative feature so that you can get precise readings by “zeroing” your multimeter. There is also a 24 segment bar graph to measure rapid changing or unstable signals. Our industrial multimeter comes with a 1ms Fast response to make sure you get your readings both quickly and accurately.

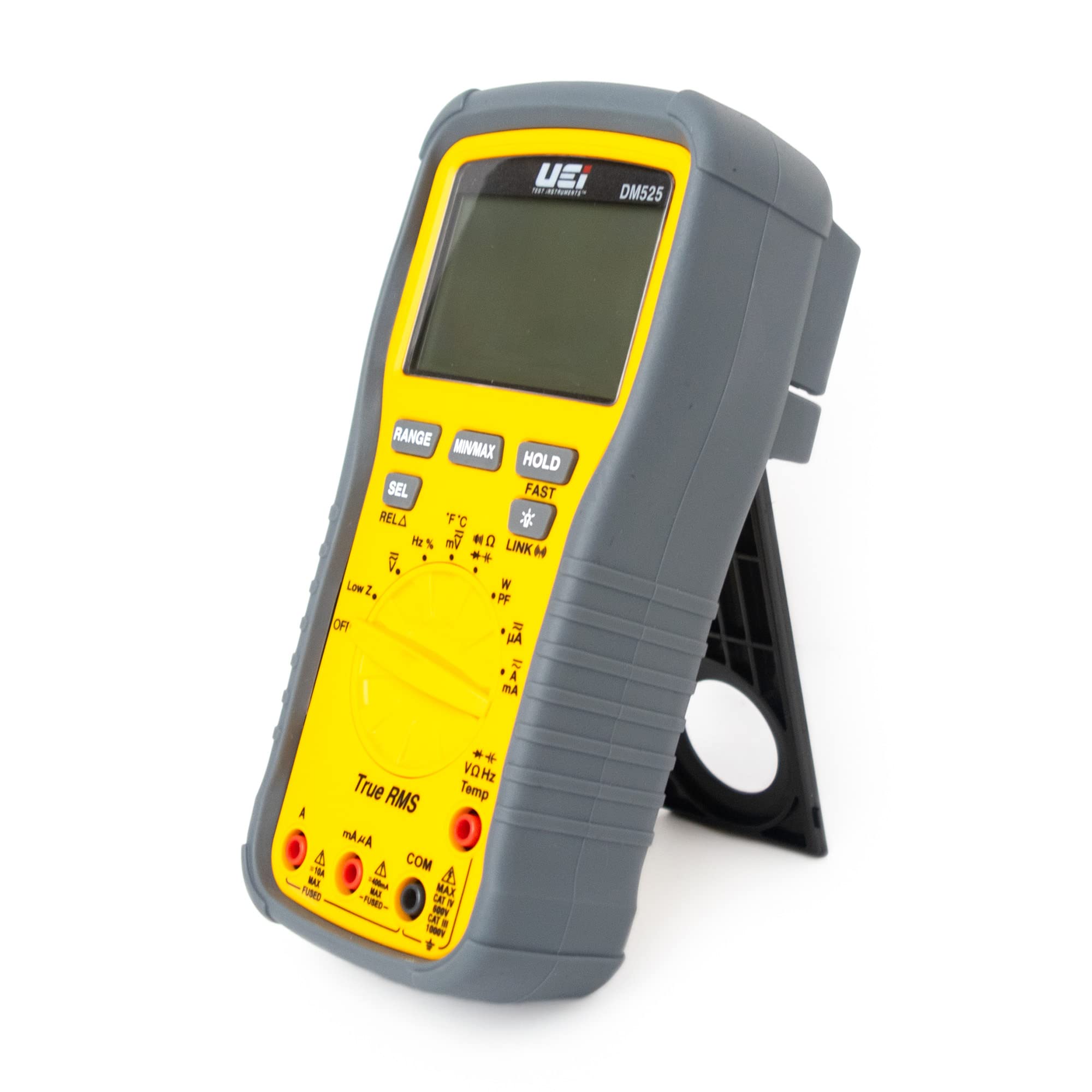

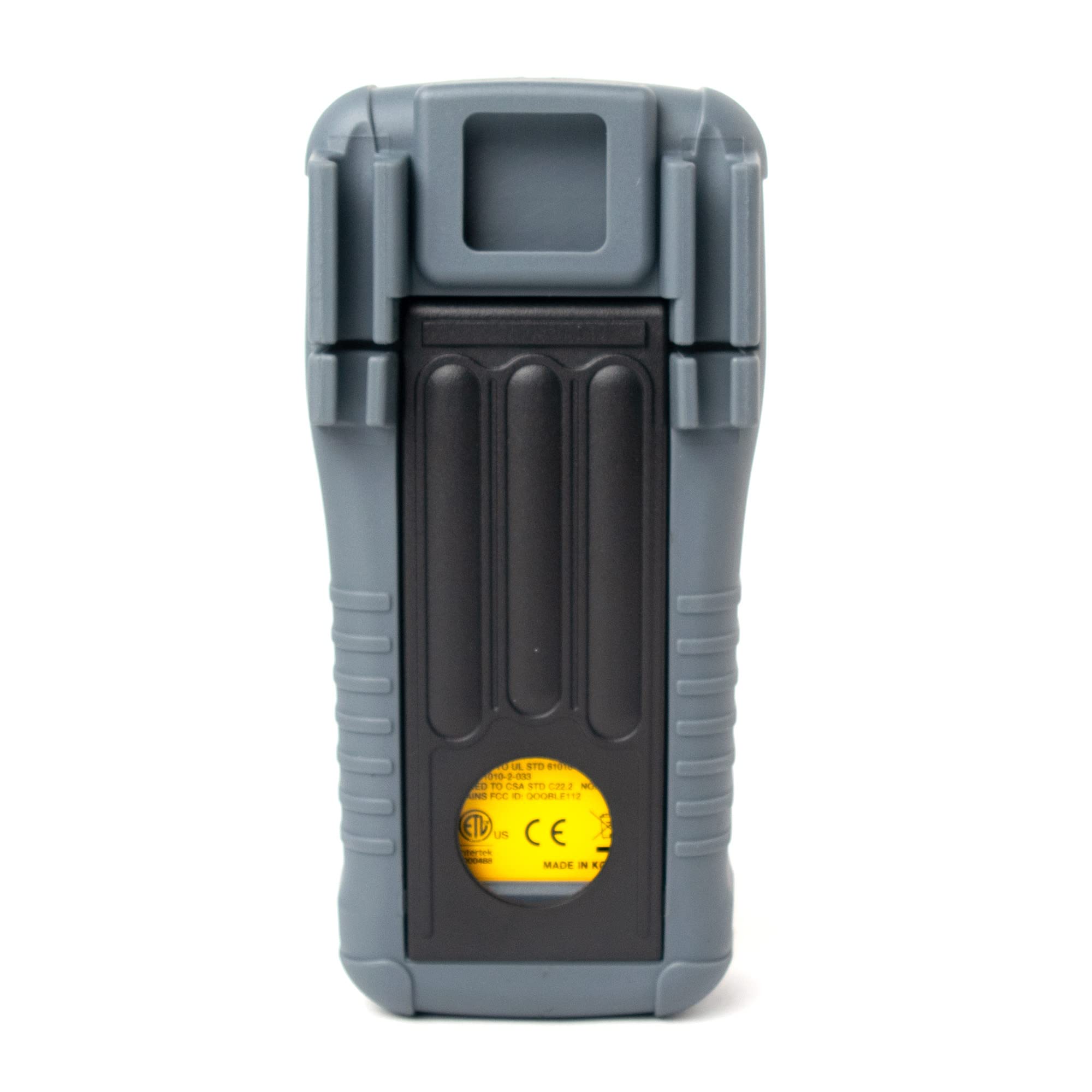

- 🔩 Smart & Durable Design- The DM525 is built tough with 6ft drop protection, IP42 rated water resistance, and a protective rubber boot with kick stand. The multimeter includes smart features such as a High resolution backlit display, test lead holders, low battery indicator, and auto power off. Best of all the DM525 comes with a 2 year limited warranty.
| Specification Met | Rohs, Etl, IEC 61010, Ce Conformity, Fcc/Ic Compliant |
| Manufacturer | UEIA9 - pallet ordering |
| Unit Count | 1 Count |
| Brand | Uei Test Instruments |
| UPC | 053533508192 |
| Number of Items | 1 |

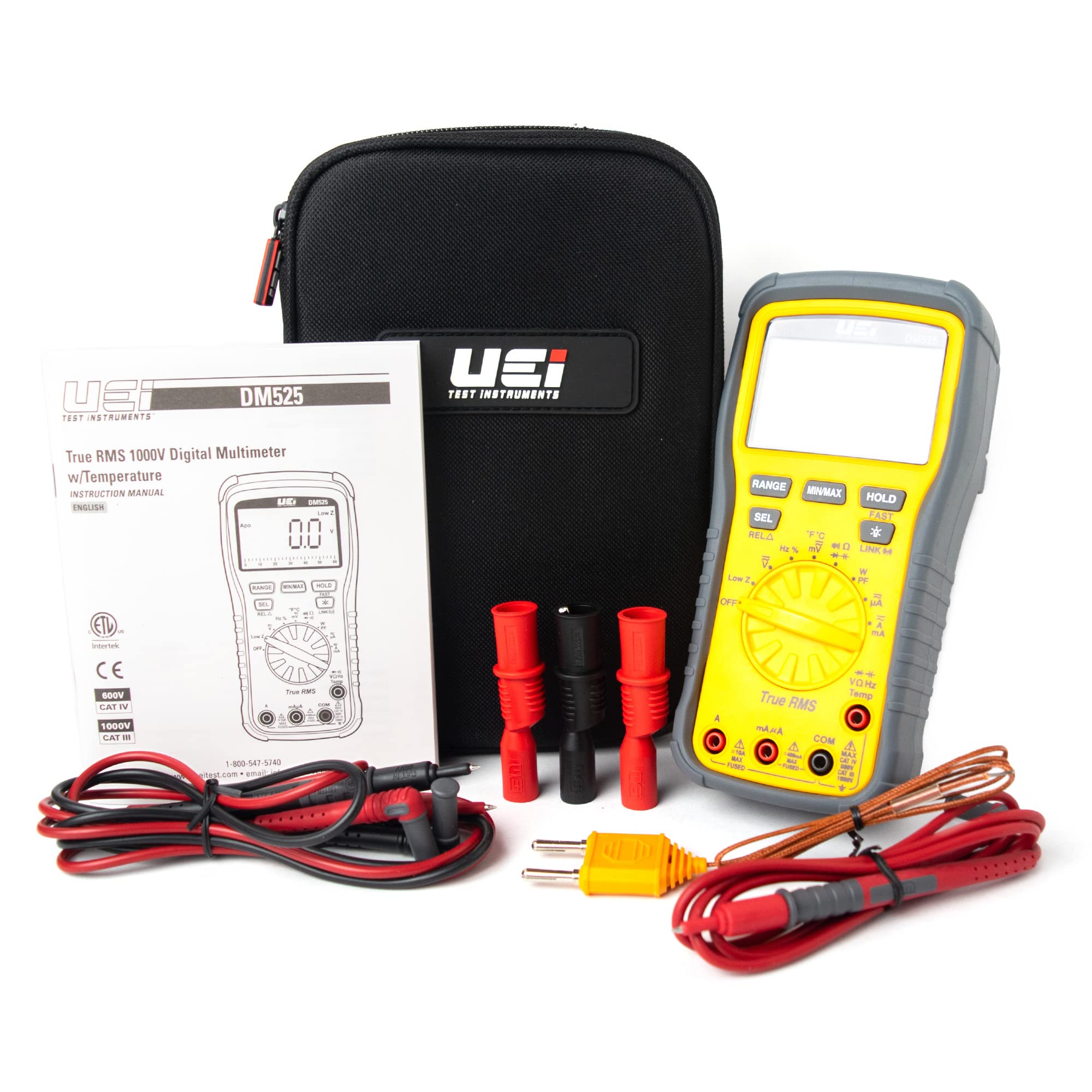

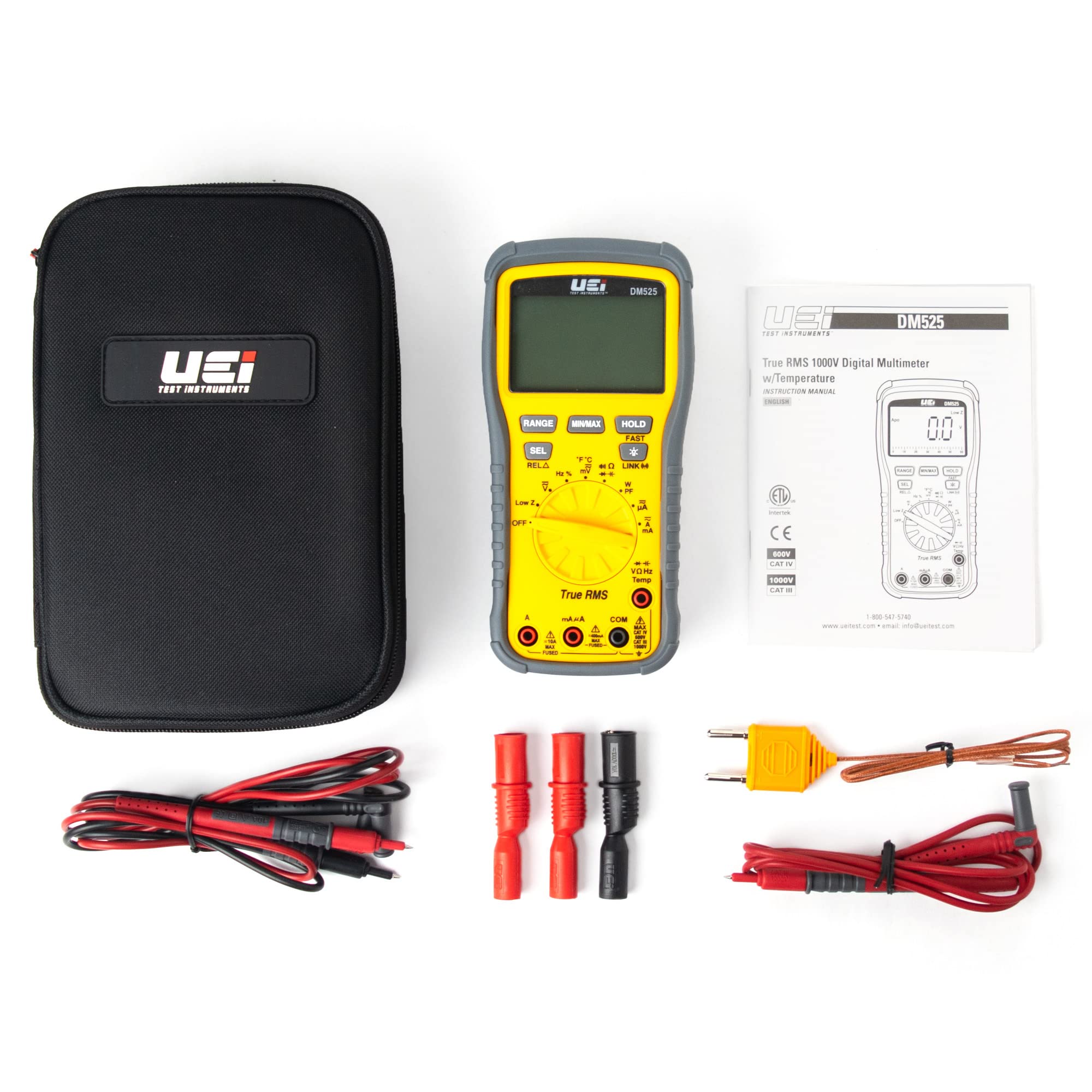

| Included Components | Product & Instructions Guide |
| Power Source | Battery Powered |
| Upper Temperature Rating | 1112 °F |
| Colour | 1 |
| Style | Digital |
| Item Weight | 1.7 Pounds |
| Part Number | DM525 |
| Model | DM525 |
| Measurement Type | Multimeter |
| Item Type Name | UEI DM525 Industrial Digital Multimeter |
| Style Name | Digital |
| Item Dimensions | 1 x 1 x 1 inches |
| Product Type | UEI DM525 Industrial Digital Multimeter |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGGIPCMDW2CL7 |
Category |
Electrical , Testers , Multi Testers |
Tags |
Estimated shipping
Select a product to estimate shipping.The DM525 is a 1000V AC/DC multimeter with resistance, diode Test, Audible Continuity, min/max, fast min/max, capacitance, fused Test lead inputs, Amps, temperature, frequency, duty cycle, a bar graph, Wireless capability and a protective rubber boot with a kick stand. It also features auto ranging, Test lead holders and is backed by a 2-year limited warranty.
