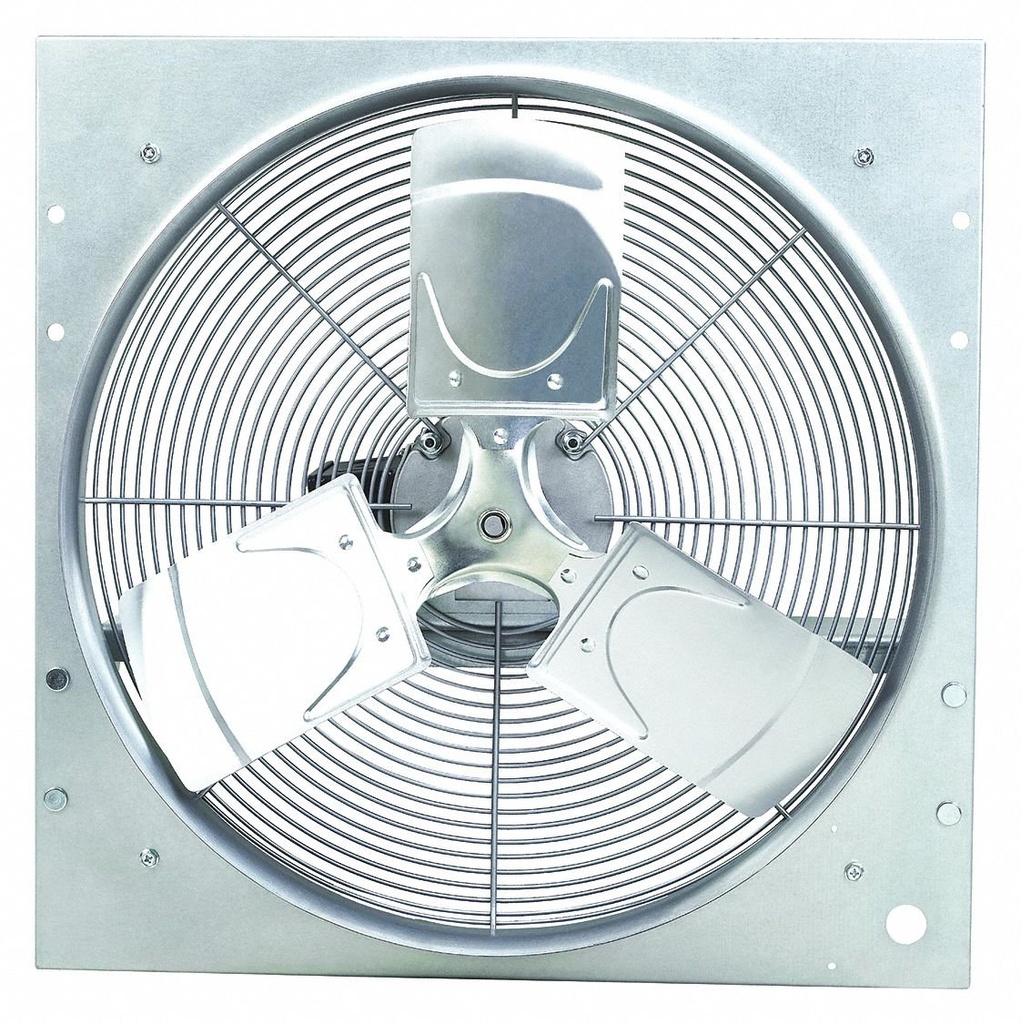

Dayton 24" x 24" 115VACV Medium Duty Direct Drive Exhaust Fan with 20" Blade Dia.

Price:

$ 769.35
Dayton 24" x 24" 115VACV Medium Duty Direct Drive Exhaust Fan with 20" Blade Dia.
  2. Shop
  3. Dayton 24" x 24" 115VACV Medium Duty Direct Drive Exhaust Fan with 20" Blade Dia.
T-Nut Wood Insert 1/4"-20 T-Nut 304 Stainless Steel Threaded Insert 5/16" Barrel Length 4 Pronged Tee Nuts Four-jaw Threaded Inserts for Wood, Rock Climbing Holds, Furniture, Woodworking, 25 PCS
T-Nut Wood Insert 1/4"-20 T-Nut 304 Stainless Steel Threaded Insert 5/16" Barrel Length 4 Pronged Tee Nuts Four-jaw Threaded Inserts for Wood, Rock Climbing Holds, Furniture, Woodworking, 25 PCS
$ 22.18
$ 22.18
HomeBeyond 55 Inch Free Standing Bathtub | Acrylic Freestanding Soaking Tub, Modern Bathroom Stand Alone Tub Suitable for Single Person Bathing
HomeBeyond 55 Inch Free Standing Bathtub | Acrylic Freestanding Soaking Tub, Modern Bathroom Stand Alone Tub Suitable for Single Person Bathing
$ 1,146.66
$ 1,146.66

Dayton 24" x 24" 115VACV Medium Duty Direct Drive Exhaust Fan with 20" Blade Dia.

http://gofinchkart.com/web/image/product.template/73282/image_1920?unique=5d7fb06
8 sold in last 24 hours

$ 769.35 769.35 USD $ 769.35

Not Available For Sale

($ 769.35 / Units)
8 people are viewing this right now
  • Noise Level
  • Electric fan design
  • Brand
  • Recommended Uses For Product
  • Power Source
  • Wattage
  • Product Dimensions
  • Style
  • Color
  • Finish Type
  • Product Type

This combination does not exist.

Electric Fan Ventilation Fans
Contact Us
Tags

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Quiet speed-controllable fans for schools, offices, and light manufacturing and assembly areas. Include intake guards. Vertical mount. Features ball bearings. Speed controller No. 48C172 sold separately.

Item: Exhaust Fan
Type: Medium Duty Direct Drive
Blade Dia.: 20"
CFM @ 0.000-In. SP: 3647
CFM @ 0.125-In. SP: 3280
CFM @ 0.250-In. SP: 2629
CFM @ 0.375-In. SP: 1781
Sones @ 0.000-In. SP @ 5 Ft.: 15.3
Sones @ 0.125-In. SP @ 5 Ft.: 17.4
Fan Voltage: 115VAC
Exhaust/Supply Fan Item: Exhaust Fan
Hz: 60
Phase: 1
Full Load Amps: 2.8
Exhaust/Supply Fan Motor HP: 1/4
Motor Enclosure: Totally Enclosed Air Over
Motor Insulation: Class B
Bearing Type: Ball
Motor RPM: 1174
Watts: 186
Max. Ambient Temp. (F): 104
Height (In.): 24
Width (In.): 24
Max. Depth (In.): 10-3/8
Outside Dia. (In.): 24
Inside Dia. (In.): 20-1/2
Flange Width (In.): 1
Venturi Depth (In.): 3-1/4
Venturi Clearance Dia. (In.): 20-1/2
Mounting Position: Vertical
Frame Material: Galvanized
Frame Finish: Galvanized
Guard Material: Steel
Wire Guard Finish: Zinc Plated
Propeller Material: Aluminum
Number of Blades: 3
Agency Compliance: UL and cUL Listed, AMCA
Speed Control: 48C172
Aluminum Wall Shutter No.: 4C559
Fiberglass Wall Shutter No.: 5C214
Galvanized Wall Shutter No.: 1C745
Dimension A (In.): 24
Dimension B (In.): 7
Dimension C (In.): 3-3/8
Dimension D (In.): 20-5/8
For Use With: General Ventilation Applications

Package Dimensions

2 x 2 x 2 inches

Main Specification
Noise Level 60 Decibels
Electric fan design Exhaust Fan
Brand Dayton
Recommended Uses For Product Exhausting
Power Source Corded Electric
Wattage 260 Watts
Product information
Product Dimensions 10.38"D X 24"W X 24"H
Style Modern
Technical Details
Color Silver
Finish Type Powder Coated
Others
Product Type Electric Fan
