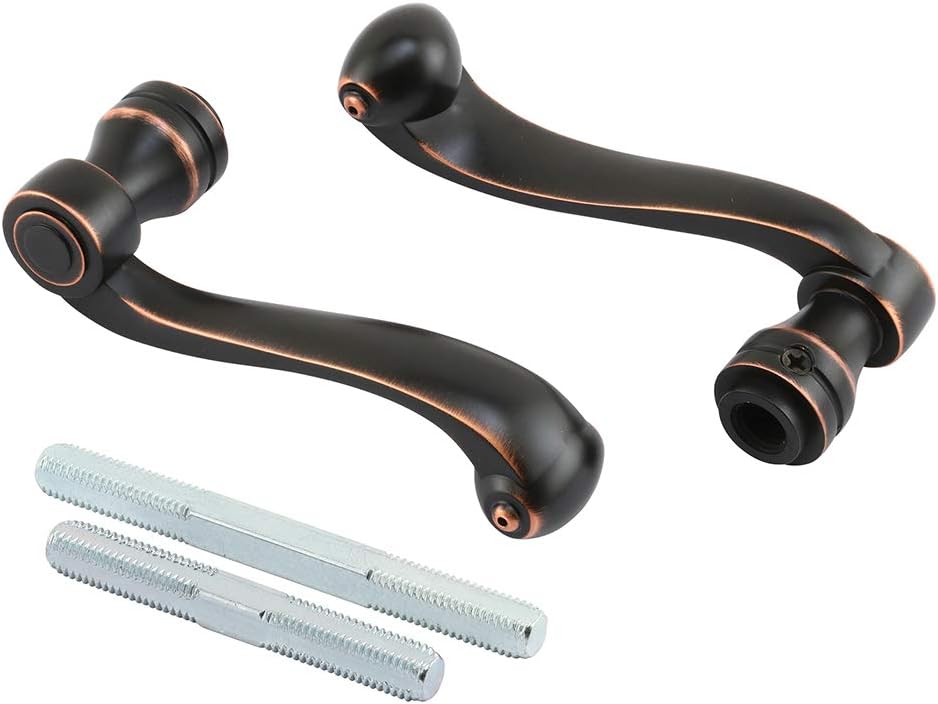

Prime-Line E 2666 French Colonial Door Levers, Heavy Weighted Casting Design, Classic Bronze (1 Set)
9 sold in last 24 hours
- NEW INSTALLATION FIT – This lock set is ideal for replacing broken lock sets on 1-3/8 inch to 1-3/4 inch thick interior doors (INSTALLATION TIP - Use of thread locking adhesive on the set screw will keep knob from slipping)

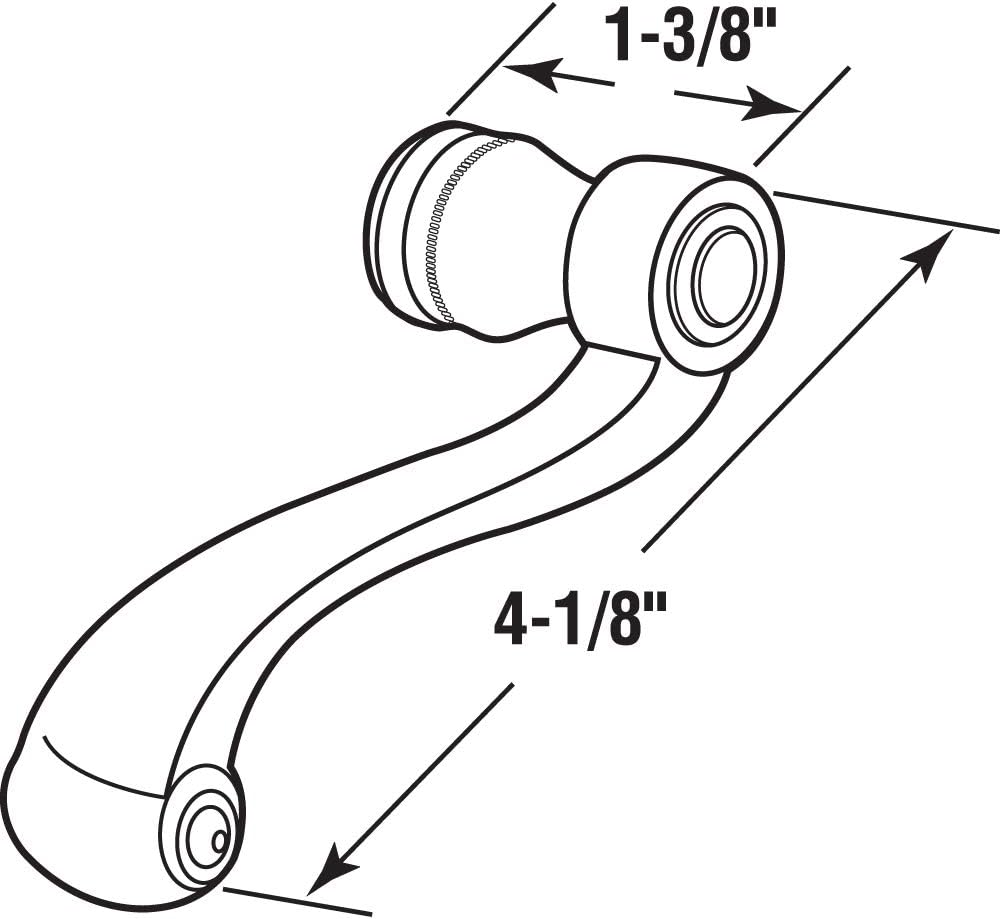

- Ideal for converting vintage style door knobs to vintage style levers with a 4-1/8 inch handle length and 1-3/8 inch protrusion
- Includes two spindles, 9/32 x 3/4 x 2-3/4 inch length with a machine threading 3/8-32 threads per inch and 9/32 x 3/4 x 3-5/8 inch length with a machine threading 3/8-32 threads per inch
- Constructed of a heavy weighted casting design and comes in a classic bronze plated finish
- NOTE - Please refer to the line art for dimensions and compare with your needs before ordering (Not Universal)
Tags |

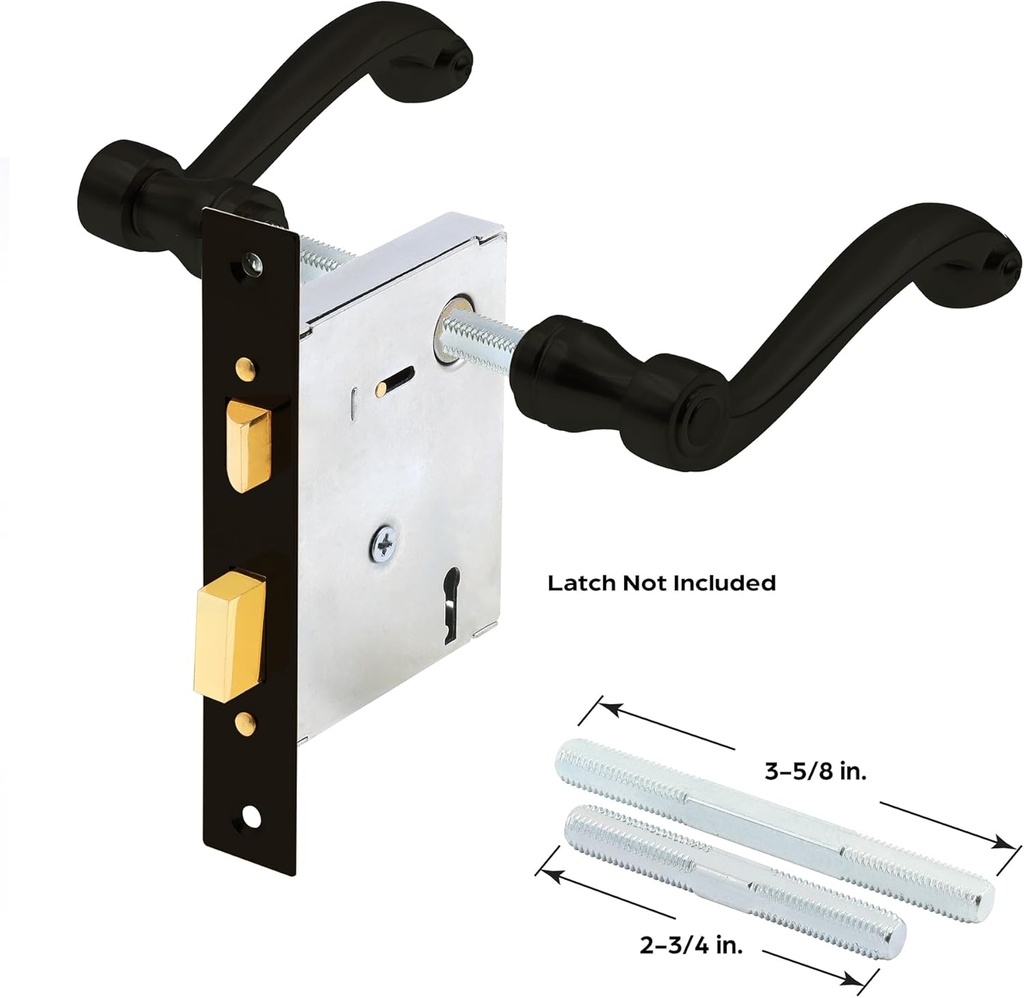

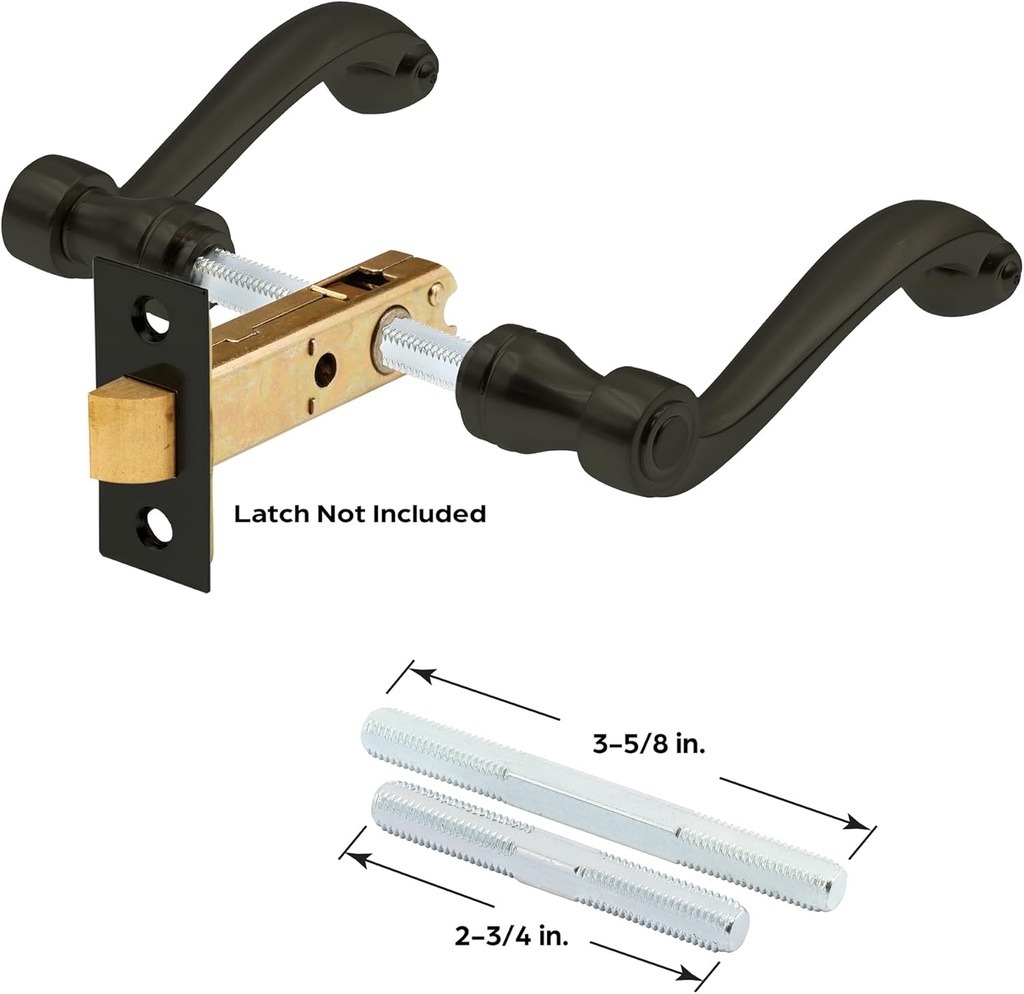

These vintage style door levers are constructed of diecast and come in a classic bronze finish. They feature a heavy weighted casting design and unique Silencer bushings for smooth operation. This set of levers is designed for indoor use only, and it includes one 2-3/4 inch steel spindle, and one 3-5/8 inch steel spindle with 3/8 inch-20 threads. These French style levers fit 1/4 inch square drive spindle systems commonly found in antique and vintage door hardware sets, and with the two (2) provided square spindles, it can adjust to accommodate doors of different thicknesses. The lever shanks include setscrews for fastening to the square spindles. All other components of matching vintage design must be purchased separately to include the internal mortise lock body, the door rosettes, the trim and strike plates, or the latch and fasteners. Note: These levers cannot be used on pre-bored doors that have large, newer style doorknob holes without first prepping them to receive this older-style hardware. Installation tip: Because the fasteners of the rosettes (purchased separately) require a solid surface to mount to, the large 2-1/8 inch (approximate size) holes must first be filled with a hardening filler, to then be able to receive the rosette fasteners. Products like Fix-It-All and Bondo Body Filler have worked well for some, but care must be used to avoid damaging any prefinished door surfaces during application and finishing.
Technical Details
| Material | Alloy Steel |
|---|---|
| Brand | PRIME-LINE |
| Color | Bronze |
| Product Dimensions | 4.7"L x 2.3"W |
| Exterior Finish | Bronze |
| Special Feature | Easy to Install |
| Included Components | 2 levers, 2 spindles |
| Lock Type | Door Levers |
| Item Weight | 0.7 Pounds, 11.2 ounces |
| Metal Type | Alloy Steel, Bronze |
| Handle Material | Cast Metal |
| Hand Orientation | Ambidextrous |
| Projection Distance | 1.38 Inches |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Manufacturer | Prime-Line Products |
| Item Depth | 1.375 inches |
| Handle Attachment Mechanism | setscrews |
| UPC | 049793326669 |
| Indoor/Outdoor Usage | Indoor |
| Part Number | E 2666 |
| Item model number | E 2666 |
| Size | 1/4 Inch |
| Finish | Plated,Smooth |
| Item Package Quantity | 1 |
| Number Of Pieces | 1 |
| Special Features | Easy to Install |
| Batteries Required? | No |
| Warranty Description | Contact Prime-Line |
| Main Specification | |
|---|---|
| Exterior Finish | Bronze |
| Brand | Prime-Line |
| Product Dimensions | 4.7"L X 2.3"W |
| Color | Bronze |
| Material | Alloy Steel |
| Others | |
| Product Type | Hardware Handle |
