12V DC 4 inch Stroke Linear Actuator Heavy Duty 750N 165lbs Maximum Lift
- 4 inch stroke length, 8 inch(205mm) retracted length, 12 inch(305mm) extended length
- 165Lbs(750N) Maximum Load. No-load speed:10mm per sec
- 6mm diameter mounting holes. Built in limit switch
- Protection class IP54, NOT completely waterproof. Maximum current 3A

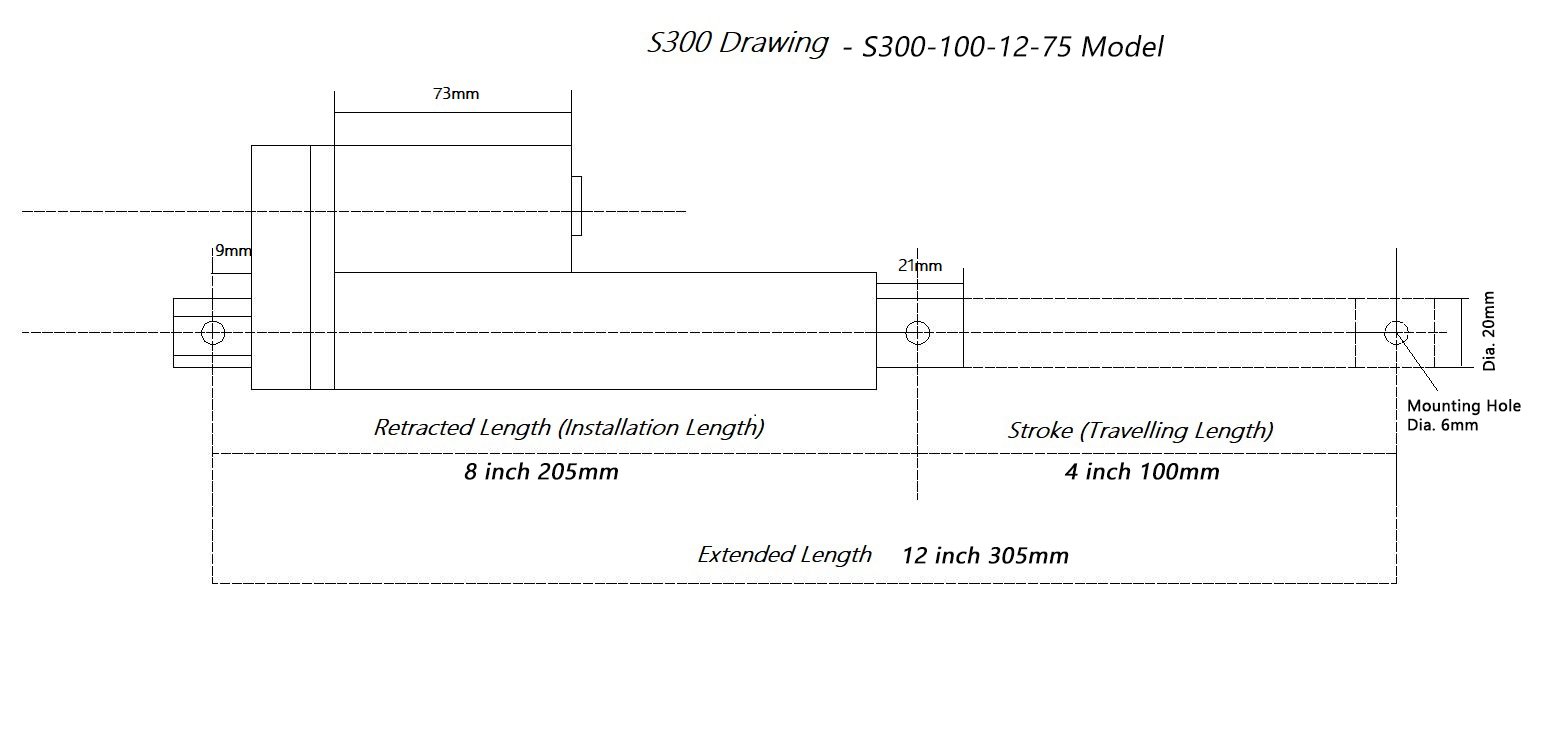

- Please pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS. To avoid order a wrong size.
| Manufacturer | SOViK |
| Display Type | Lcd |
| Brand | SOViK |
| UPC | 736561643232 |
| Number of Items | 1 |
| Material | Aluminum |
| Colour | Silver |
| Item Weight | 1.8 Pounds |
| Part Number | S300-100-12-75 |
| Model | S300-100-12-75 |
| Material Type | Aluminum |
| Product Type | Linear Motion Actuators |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGZIYCJ7WCDYY |
Category |
Power Transmission Products , Linear Motion Products , Linear Motion Actuators |
Tags |
Estimated shipping
Select a product to estimate shipping.SOViK 2" 4" 6" 12" 14" Stroke 12V DC Linear Actuator Heavy Duty 165lbs Maximum Lift
Specification
Input Voltage: 12 DC
Stroke Length: 2 inch, 4 inch, 6 inch, 12 inch, 14 inch
Maximum Load: 165lbs/ 750N
Maximum self-locking force: 2300N / 507lbs
Mounting Holes: 6mm diameter
No Load Speed: 0.39 inch / 10mm per second
Operating temperature range: -20 to +65 degree Celsius
Material: Aluminum alloy
Suggestion
As we know, the heavy load is always with the slow speed. Actually, if you don't need a lot of load, you can select a lighter but faster item.
Protection class IP54 is not completely waterproof, but for limited dust and limited water spray ingress. Please pay attention to waterproof when using.
Please pay attention to the dimension of product, SEE DIMENSIONAL DRAWING AND ADDITIONAL TECHNICAL SPECIFICATIONS. To avoid order a wrong size.

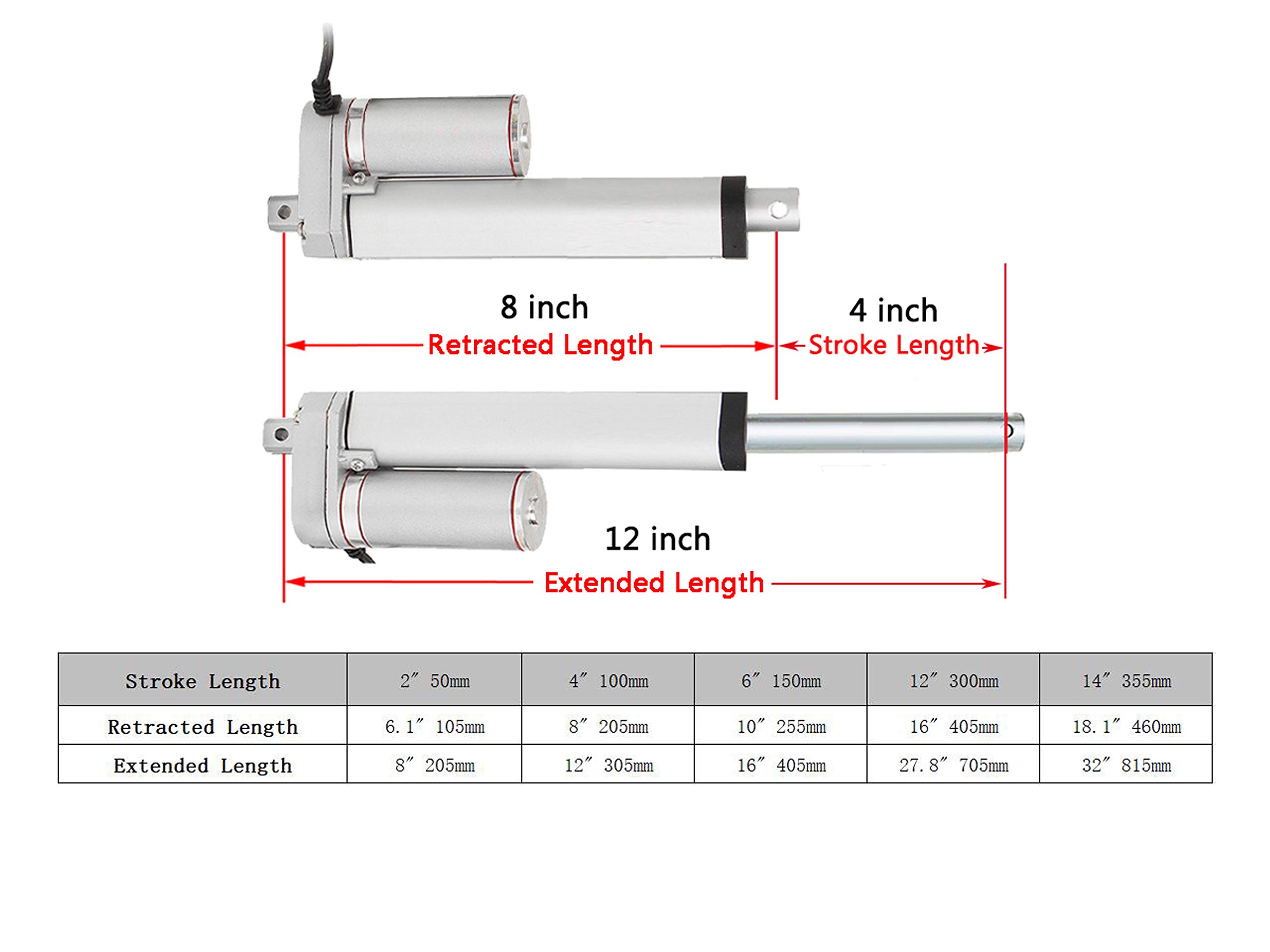

What's the stroke length, retracted length and extended length?
How to install
Prepare to connect the two wires of the actuator to a 12 volt battery
Red wire to the positive terminal and black wire to negative terminal will make the actuator extend. To make it retract, just reverse the terminal connections.
To simplify the last step, you can prepare a reverse polarity relay or switch for the actuator. When you want the actuator to extend and retract, just press the switch.
Your actuator will hold its position when the power is off. It will automatically stop when reaches the end.
The actuator has pre-installed inner limit switch, it cannot be adjustable.
How to protect your actuator
Please use the 12V DC power adapter
The actual load does not exceed the rated load
All the actuators have duty cycle, they are unable to work all the time without stop. The duty cycle of this actuator is 20%. it means that your actuator needs 4 minutes to rest for every 1 minute of work. If the actuator keeps working for long time, the motor is easily burnt out.
Please be careful, the actuator not completely waterproof
What you will get
1pc SOViK Heavy Duty Linear Actuator
Professional after-sale service
Used for Window Opener for your Greenhouse or the Tall Building
Simple operation to avoid manual work and dangerous.
Into the automatic and smart times.
You can remote control the window opener by a switch or controller
Application Range
Electric equipment, Massage bed, Medical chair, Electric sofa
Creative Life
TV lift, Table lift, Lift up your quality of life
To Smart and Easy Life
Change fixed,simple life
