BAOMAIN SC63x400 Double Acting Pneumatic Cylinder, 2.5" Bore, 15.75" Stroke
- Double Acting Operation: Compressed air powers both extension and retraction, providing smooth push-and-pull motion for compatible pneumatic machinery and industrial automation systems.

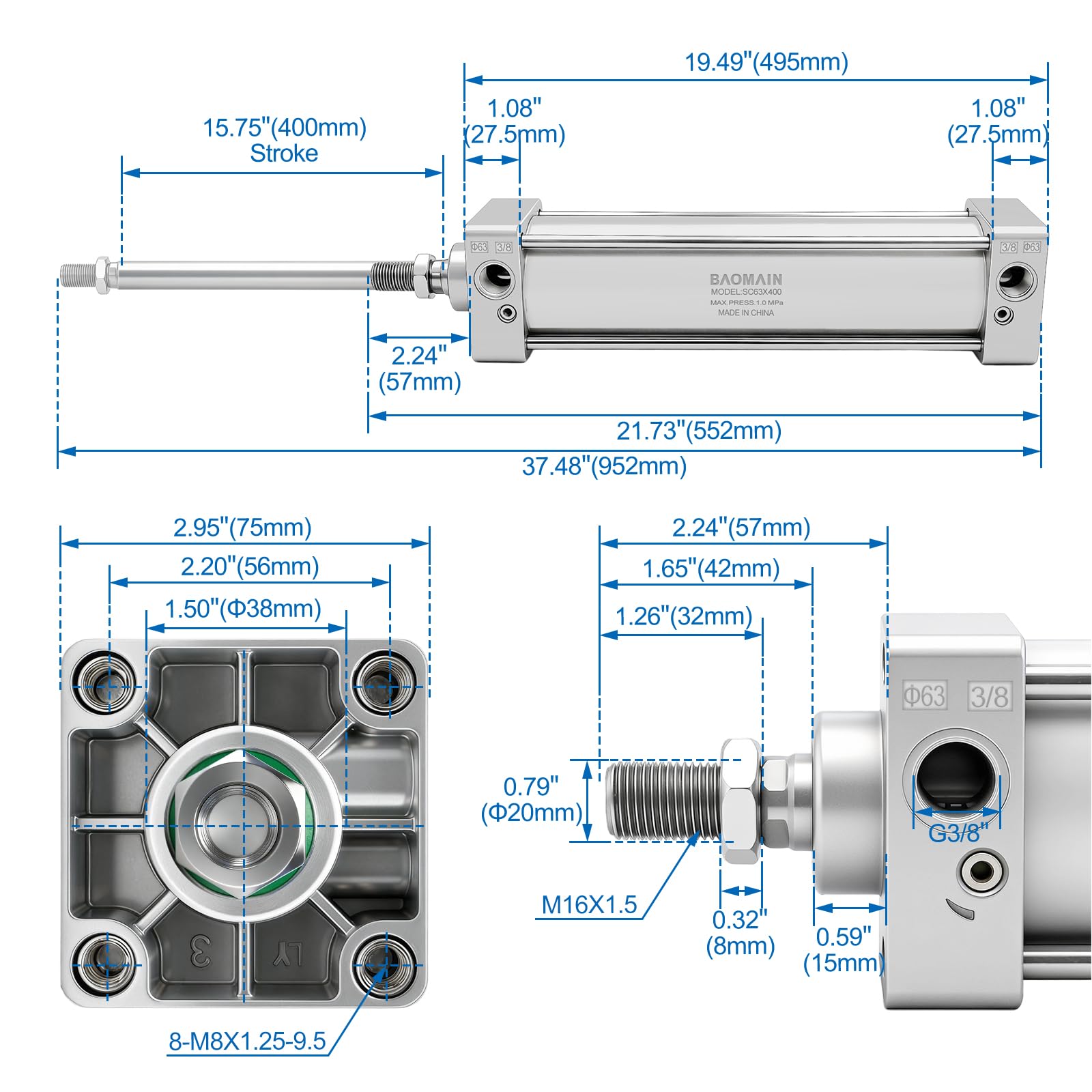

- 63mm Bore, 400mm Stroke: Features an approximately 2.5-inch bore and 15.75-inch stroke for applications requiring extended linear travel. Check available installation space and stroke clearance before selecting.
- PT 3/8-Inch Air Ports: Threaded ports connect to compatible pneumatic fittings for air supply and exhaust. Verify the thread type when choosing fittings to ensure proper connection to your air system.
- Threaded Piston Rod: The M16 x 1.5 rod thread provides a connection point for compatible mechanical linkages and accessories. Tie-rod body construction supports integration into machinery and fixtures.
- Industrial Applications: Designed for use in compatible material handling, positioning, clamping and automated assembly systems. Match the SC63x400 cylinder's dimensions, mounting requirements and operating specifications to your equipment.
| Material | Aluminum, Metal |
| Manufacturer | CHLED |
| Brand | Baomain |
| Shape | Rectangle |
| Item Package Quantity | 1 |
| Included Components | Pneumatic Air Cylinder |
| Product Dimensions | 21.5 x 3 x 3 inches |
| Colour | Silver |
| Item Weight | 6.7 pounds |
| Item model number | SC 63X400 |
| Part Number | SC 63X400 |
| Date First Available | 2016, December 6 |
| Product Type | Air Cylinders |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWGZQTBUBG2ETA |
Category |
Material Handling Products , Pneumatic Equipment , Air Cylinders |
Tags |
Estimated shipping
Select a product to estimate shipping.Baomain Pneumatic Air Cylinder
Engineered for precision and durability, our Baomain Pneumatic Air Cylinder delivers reliable linear motion power for industrial automation, manufacturing systems, and heavy-duty equipment. Featuring a robust screwed piston rod and dual-action design, it's built to withstand continuous operation in demanding environments.
Key Advantages:
Industrial-Strength Construction - Hardened materials resist wear from high-cycle operations
Dual-Action Efficiency - Provides controlled force in both extension and retraction
Precision Movement - Smooth, consistent performance for repetitive tasks
Easy Integration - Standard connections for quick pneumatic system installation
Low Maintenance - Designed to minimize downtime and service requirements
Flexible Specifications for Versatile Use
Available in multiple bore sizes (32mm-63mm) and stroke lengths (25mm-500mm) to accommodate varying torque and space requirements. The optional magnetic piston version (SC-S Series) supports position sensing, seamlessly integrating into smart production lines for automotive manufacturing, packaging machinery, metalworking, and more.
TECHNICAL PARAMETERS
Industrial-Grade Dual-Action Design for Efficiency & Reliability
The Baomain Pneumatic Air Cylinder features a dual-action piston design for precise bidirectional motion control, ideal for high-intensity industrial applications like stamping, clamping, and automated manufacturing. Its screwed piston rod construction enhances durability, ensuring stable performance under high-pressure (1 MPa) conditions to meet the rigorous efficiency and reliability demands of manufacturing.
For More Accessories, Please search
Designed for quick setup with standardized ports and a compact build, it integrates effortlessly into existing equipment. The low-maintenance structure and wear-resistant seals minimize downtime, extending lifespan while ensuring uninterrupted productivity for industrial clients.
Crafted from high-strength, corrosion-resistant materials, the cylinder withstands wear in high-frequency operations. Standardized threaded ports (PT 3/8") ensure compatibility with mainstream pneumatic systems, reducing installation costs and optimizing production line efficiency for factories.
