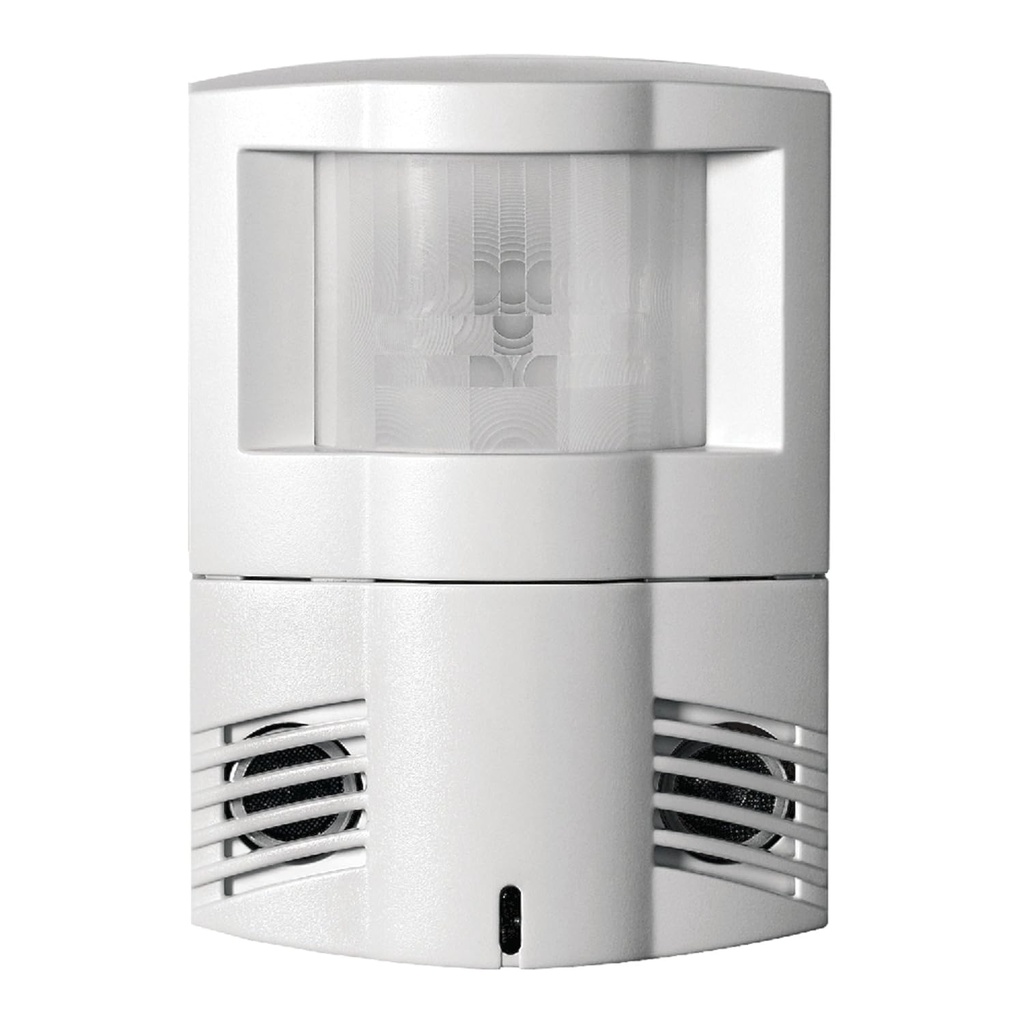

OAWC-DT-120W-R Dual Tech Wall/Corner Sensor, Wide Angle 120 Degree with BAS Relay and Daylight Sensor
7 sold in last 24 hours
- 1,200 Sq. ft. coverage, wide angle, 120° with BAS relay and daylight sensor
- Micro Set self-adjusting time delay and sensitivity
- Optional built-in light level sensor
- Optional BAS/HVAC isolated relay
- NEMA WD 7 Guide robotic method utilized to verify coverage patterns
Tags |
The Controls Dual Technology sensor's combination of Ultrasonic and Passive Infrared technologies offers the most complete sensing equipment available today. This pairing helps eliminate false activations or deactivations for additional energy savings. The OAWC-DT sensors are also equipped with Micro Set self-adjusting technology which provides an adaptive and airflow tolerant technology, making them ideal for spaces which have increased airflow due to higher occupant levels. Self-adjusting Dual Technology sensors drastically simplify and reduce a contractor's installation and adjustment time period. Manual On feature for use with 1 or 2 momentary switches controlling 1 or more Switch packs. Selectable Walk-Through Mode. The OAWC-DT combines Ultrasonic (US) and Passive Infrared (PIR) sensor technologies to monitor a room for occupancy to deliver maximum energy savings and ensure the greatest sensitivity and coverage for tough application without the threat of false triggers. PIR is used to turn the lights ON and then either or both technologies are used to keep the lights ON. The sensor includes Micro Set self-adaptive technology that continuously self-adjusts sensitivity and time delay in real-time, maximizing the potential energy savings that are available in particular application. In Automatic On Mode, the lights turn ON when a person enters the room. In Manual-On Mode, the lights are turned ON by activating a momentary switch (model # GMDS-*) that is connected to the sensor. When used with 2 level lighting (-R model only), Bi-level Automatic On can be achieved which allows Zone 1 to come on automatically upon occupancy. Zone 2 does not come on unless the occupant presses the optional momentary switch. When enabled, the daylighting feature (-R models only) prevents lights from turning ON when the room is adequately illuminated by natural light. Applications: classrooms conference rooms large offices common areas computer rooms break rooms.
Package Dimensions
6.75 x 5.75 x 3.12 inches; 13.6 ounces
Product details
| Package Dimensions | 6.75 x 5.75 x 3.12 inches; 13.6 ounces |
|---|---|
| Item model number | OAWC-DT-120W-R |
| Manufacturer | Controls |
| Main Specification | |
|---|---|
| Manufacturer | Controls |
| Brand | Cooper Controls |
| UPC | 080083579570 |
| Power Source | Corded Electric |
| Mounting Type | Wall Mount |
| Others | |
| Product Type | Motion Detector Device |
