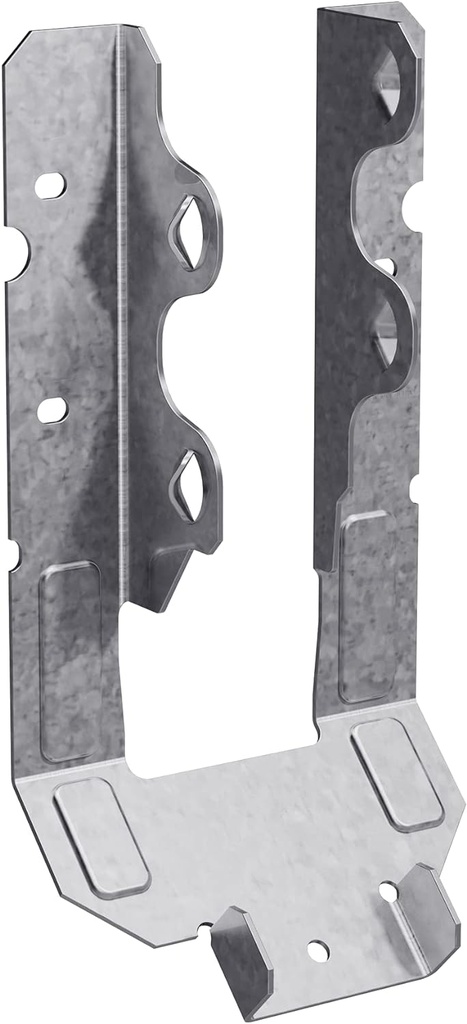

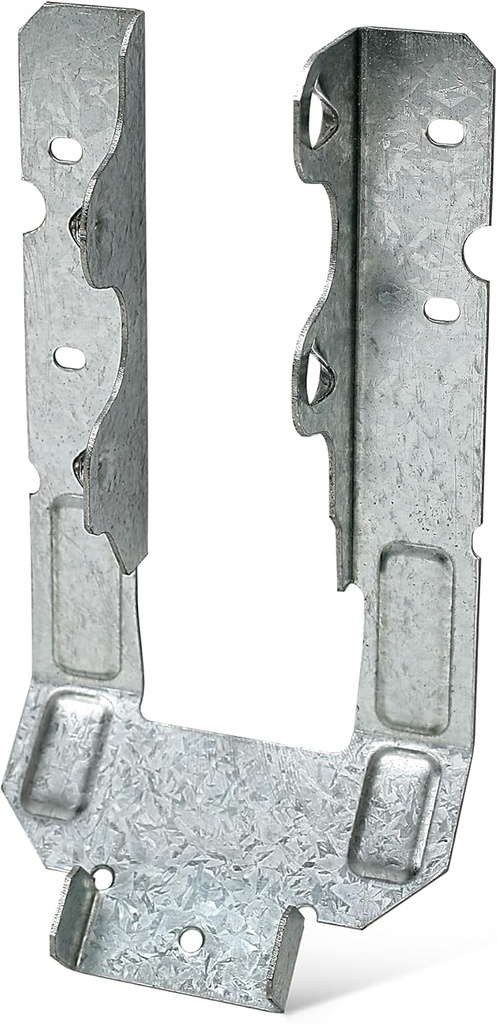

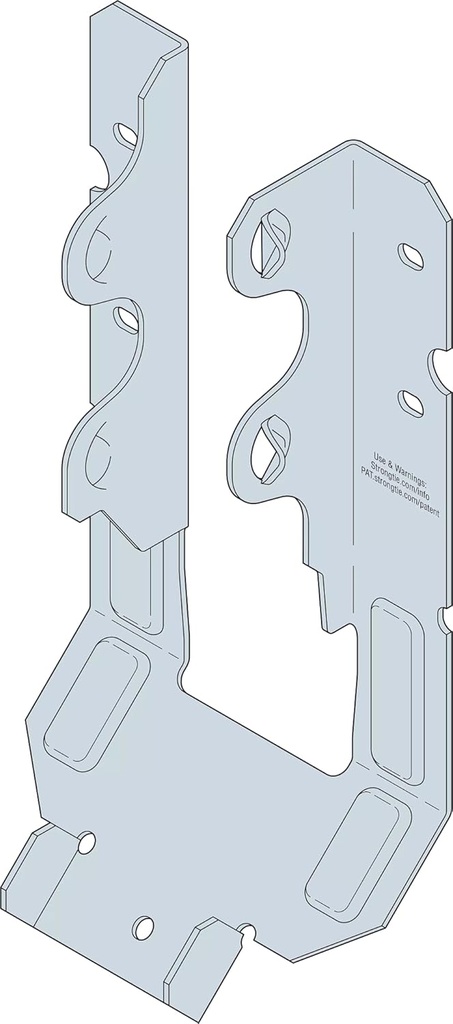

Simpson Strong-Tie LRU26Z LRUZ ZMAX Galvanized Slopeable Light Rafter U Hanger for 2x6 (Pack of 25)
15 sold in last 24 hours

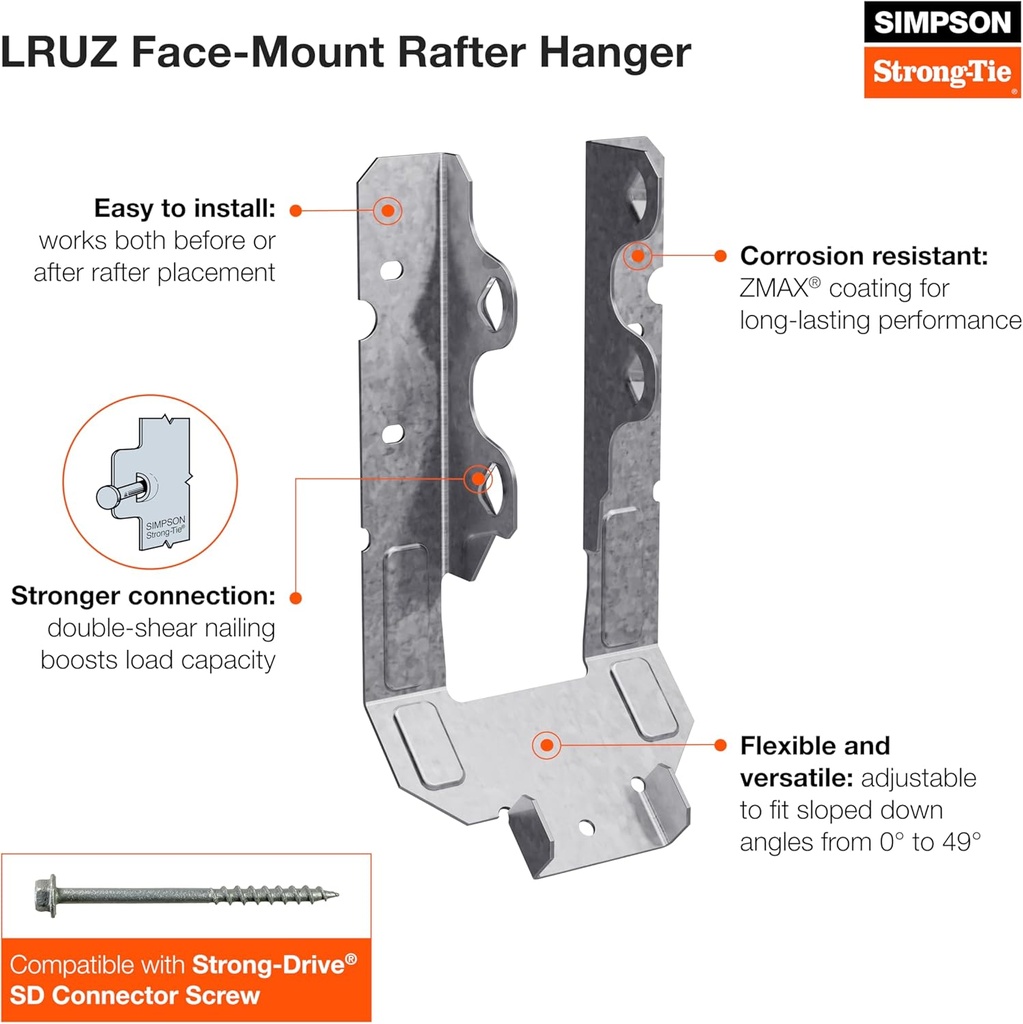

- The open design and ability to field-adjust the slope make the LRUZ ideal for both retrofit or new applications
- Accommodates roof pitches from 0:12 to 14:12
- Slopes up or down to 45° (12:12) — for slopes greater than 45° up to 49° (14:12), allowable loads are 0.85 of table loads
- For added versatility, the fasteners on the face of the hanger are placed high enabling the bottom of the rafter to hang below the ridge beam
- For nominal rafter sizes: 2x6, 2x8
Tags |
| Main Specification | |
|---|---|
| Manufacturer | Simpson Strong-Tie |
| Unit Count | 1.0 Count |
| Item dimensions L x W x H | 1.81 X 3.5 X 6.75 Inches |
| Brand | Simpson Strong-Tie |
| UPC | 707392266242 |
| Item Package Quantity | 1 |
| Item Depth | 1.5 Inches |
| Product information | |
| Item model number | Lru26z |
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 1.81 X 3.5 X 6.75 Inches |
| Shape | U Shape |
| Technical Details | |
| Finish | Zmax ® Coating (g-185) or See Corrosion Information |
| Finish Type | Zmax ® Coating (g-185) or See Corrosion Information |
| Item Weight | 0.01 Ounces |
| Global Trade Identification Number | 10707392266249 |
| Part Number | Lru26z |
| Number Of Pieces | 25 |
| Special Features | Field-Adjustable |
| Batteries Required? | No |
| Batteries Included? | No |
| Color | Silver |
| Material | Alloy Steel |
| Others | |
| Product Type | Mount Bracket |
