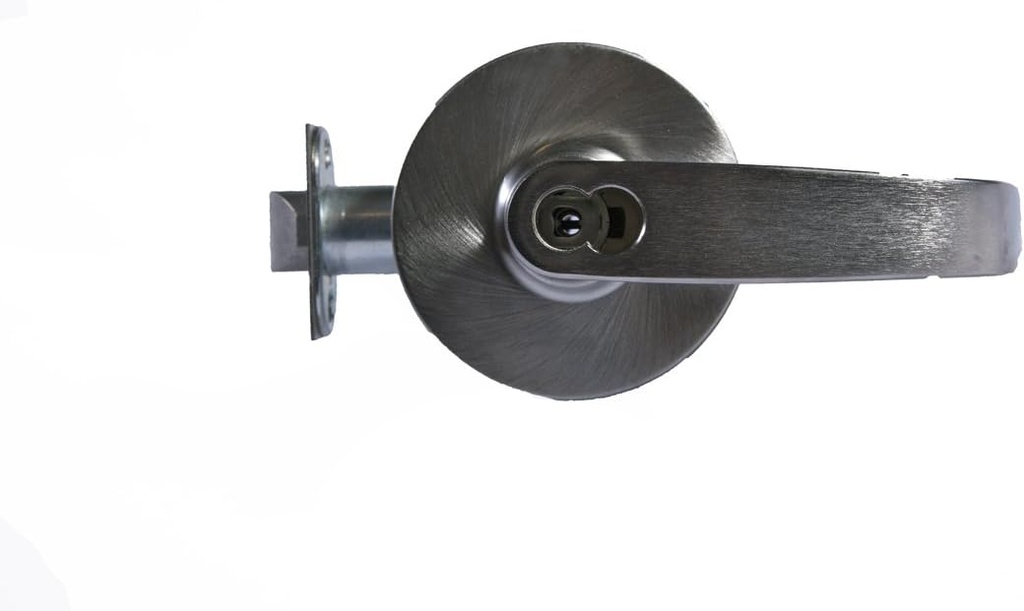

Sargent 10-Line Satin Chrome Grade 1 Entry/Office Cylindrical Lock with Heavy Wrought Rose and Solid Cast Lever, LFIC Prep, 1-3/4" to 2" Door Thickness (Pack of 1)
15 sold in last 24 hours
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push/turn button in inside lever
- Push button released by key outside or lever inside
- Turn button must be released manually
- Key retracts latch when outside lever is locked
Tags |
Sargent single entrance/office cylindrical lever lock. deadlocking latch. Latch by either lever unless outside lever is locked by push/turn button in inside lever. Push button released by key outside or lever inside. Turn button must be released manually. Key retracts latch when outside lever is locked. 1-3/4-inches thick door adjusts to 2-inches standard, 1-3/8-inches thick door, 1-Option for adapter plates backsets 2-3/4-inches backset with 1-1/8-inches front 2-3/8-inches backset with 1-inches wide front 3-3/4-inches backset with 1-1/8-inches front 5-inches backset with 1-1/8-inches front cylindrical housing steel, zinc dichromate finish front wrought brass, bronze and stainless steel 2-1/4-inches by 1-1/8-inches fixed bevel 2-1/4-inches by 1- inches. Strike wrought brass, bronze and stainless steel 800 curved lip strike - standard 808 curved lip ANSI strike wrought box strike available hand all 10 line locks are non-handed except for the G and Y levers roses heavy wrought brass and bronze latch stainless steel 1/2-inches throw brass 3/4-inches throw for pairs of doors, cylinder brass, 6 pin, LA keyway standard keys two, nickel silver masterkeying can be master keyed or grand master keyed Construction key systems. ANSI/BHMA certified ANSI A156. 2-Series 4000 - Grade 1, UL listed to USA and Canadian safety standards listed for 3 hour doors. Positive pressure meets UL 10C and UBC 7-2 ADA all levers conform to ADA requirement for barrier-free accessibility California code levers conform to California administrative code title 19 and 24 Hurricane code all individual components of a total door opening are required to comply for specific code compliance listings for both the lock hardware and other door components. Strike #808. 7 year limited warranty no service required to maintain warranty. Fits a variety of door preparations with adaptable through-bolt positioning. 6 ADA lever styles to complement a wide array of design applications.
| Main Specification | |
|---|---|
| Handle Material | Alloy Steel or Zinc or Brass or Stainless Steel or Bronze |
| Exterior Finish | Stainless Steel or Zinc or Bronze or Brass or Chrome or Nickel |
| Metal Type | Stainless Steel or Bronze or Alloy Steel or Brass |
| Unit Count | 1.0 Count |
| Lock Type | Key Lock |
| Product information | |
| Number of Items | 1 |
| Product Dimensions | 8.4 X 7.2 X 4.2 Inches |
| Technical Details | |
| Material | Stainless Steel or Brass |
| Material | Brass or Stainless Steel |
| Item Weight | 3.95 Pounds |
| Special Feature | Push Button |
| Part Number | 2860-10g05 Ll 26d |
| Finish | Satin |
| Item Package Quantity | 1 |
| Number Of Pieces | 1 |
| Special Features | Push Button |
| Brand | Sargent |
| Item model number | 2860-10g05 Ll 26d |
| Manufacturer | Sargent |
| Color | Multicolor |
| Color | Multicolor |
| Item details | |
| Included Components | Hardware |
| Others | |
| Product Type | Hardware Handle |
