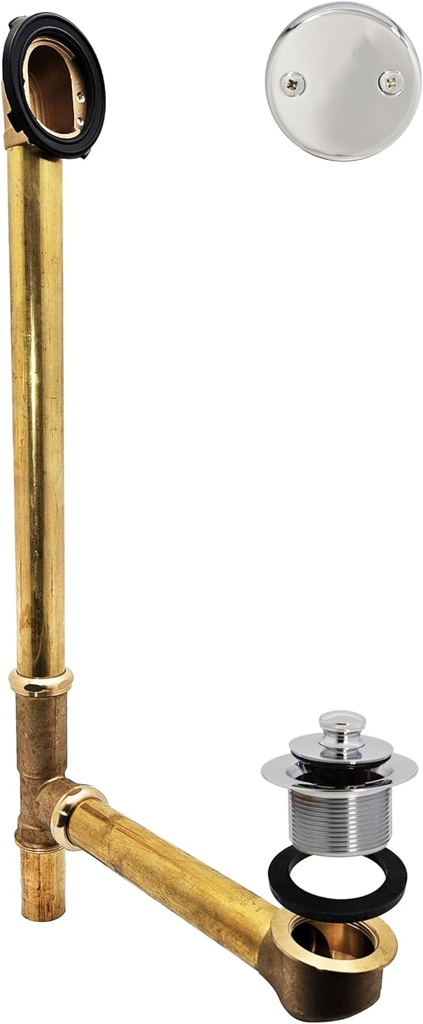

Westbrass 22-1/2" Brass Twist & Close Bath Waste & Overflow with 2-Hole Faceplate, Polished Chrome, D322-26
7 sold in last 24 hours
- LONG 22-1/2 INCH MAXIMUM MAKE-UP: Features extended 17 gauge brass tubing for tubs that require longer reach bath waste configurations
- TWIST & CLOSE DRAIN FOR POSITIVE SEAL: Simple turn mechanism opens and closes the drain with ease for secure water retention and fast drainage
- TWO-HOLE FACEPLATE WITH MATCHING HARDWARE: Includes a durable overflow faceplate with two 1/4 inch by 1-1/2 inch plated brass screws for corrosion-resistant installation
- HEAVY-DUTY BRASS TUBULAR CONSTRUCTION: Built with 1-1/2 inch brass tubing and premium fittings for long-term use in both residential and commercial bathrooms

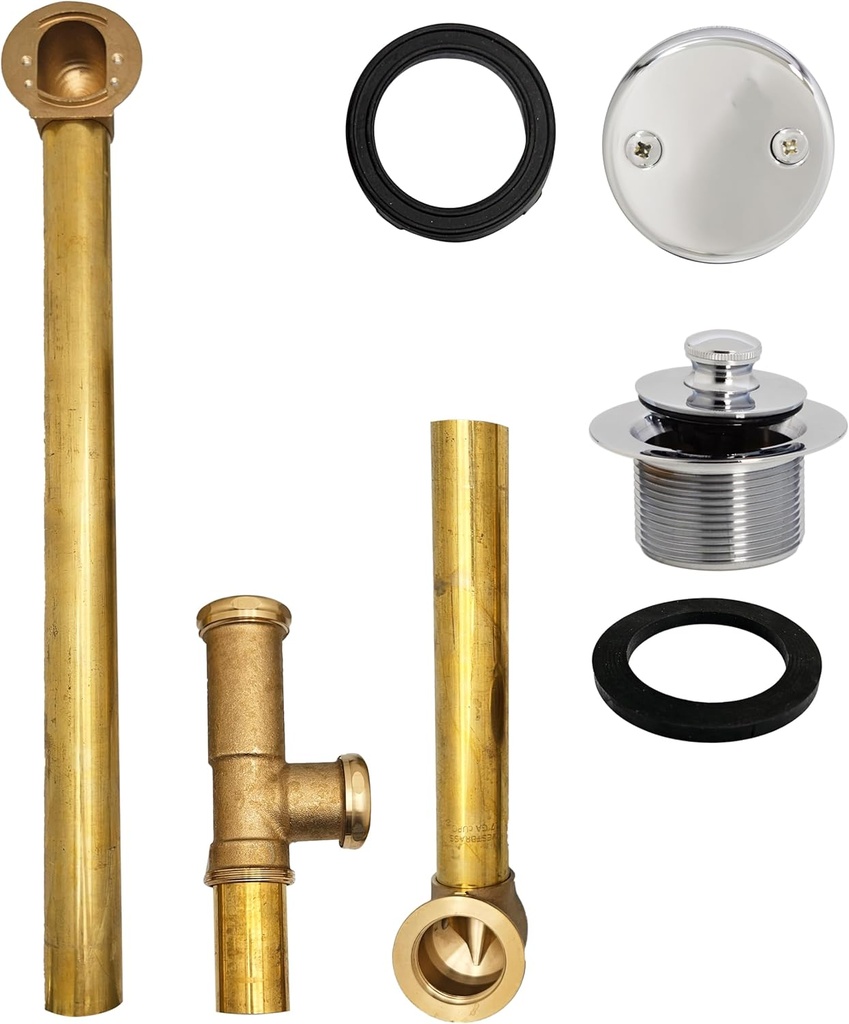

- INCLUDES FULL ROUGH-IN KIT: Supplied with two-hole elbow, tee, and shoe components along with half-ferrules for a complete and code-compliant setup
Tags |
This Westbrass Twist & Close Bath Waste and Overflow Kit delivers a complete, professional-grade drainage solution for tubs requiring extended reach and exposed installation. Constructed from 17-gauge brass tubing with a 22-1/2 inch maximum make-up, this kit is built for lasting performance and reliability. The twist & close drain plug provides secure water control with a simple hand-operated mechanism, while the two-hole faceplate includes matching brass screws for secure mounting. Included are a two-hole elbow, tee, and waste tube with half-ferrules to ensure a precise fit. Designed for both remodels and new construction, this kit offers a clean finish and robust functionality for any bathroom. Be sure to check out our other model styles and VISIT OUR WESTBRASS STOREFRONT for more Kitchen and Bath items to stylize your home with convenient functionality and beauty.
Westbrass was founded in 1935 by two brothers, Jack and Aaron Kagan, to serve the needs of all plumbing wholesalers on the West Coast. The product lines at the time included items such as faucets, valves, malleable fittings, etc. After becoming the premier distributor of plumbing products, the company was bought in 1985 by Max Homami. Seeing a boom in the Home Improvement Industry, Mr. Homami had a vision to make Westbrass the leader in Kitchen & Bath Accessories.
The company currently manufactures its own products made of the highest quality materials. In order to ensure the excellence in the industry, these products are made to pass the highly stringent requirements of NSF, IAPMO, ADA and many other regulations. The Los Angeles-based company now sells a wide range of Plumbing Specialty Products, Bath Waste & Overflows, as well as Decorative Kitchen & Bath Accessories worldwide.
Westbrass holds several patented items including the Deep Soak Overflow designed for extra-deep soaking in most bathing-wells, the Closing Linear overflow and several other intellectual properties. The customer base includes kitchen & bath showrooms, plumbing wholesalers and supply houses, OEM and ODM companies, as well as several national home centers.
| Main Specification | |
|---|---|
| Manufacturer | Westbrass |
| Brand | Westbrass |
| Item Package Quantity | 1 |
| Product information | |
| Item model number | D322-26 |
| Warranty Description | 1 Year Limited Warranty |
| Product Dimensions | 11 X 1.5 X 22.5 Inches |
| Color | Polished Chrome |
| Size | 1 Pack |
| Technical Details | |
| Item Weight | 4 Pounds |
| Part Number | D322-26 |
| Finish | Polished Chrome |
| Batteries Required? | No |
| Material | Brass |
| Style | Twist & Close |
| Item details | |
| Included Components | (1)-Bath Waste & Overflow Assembly |
