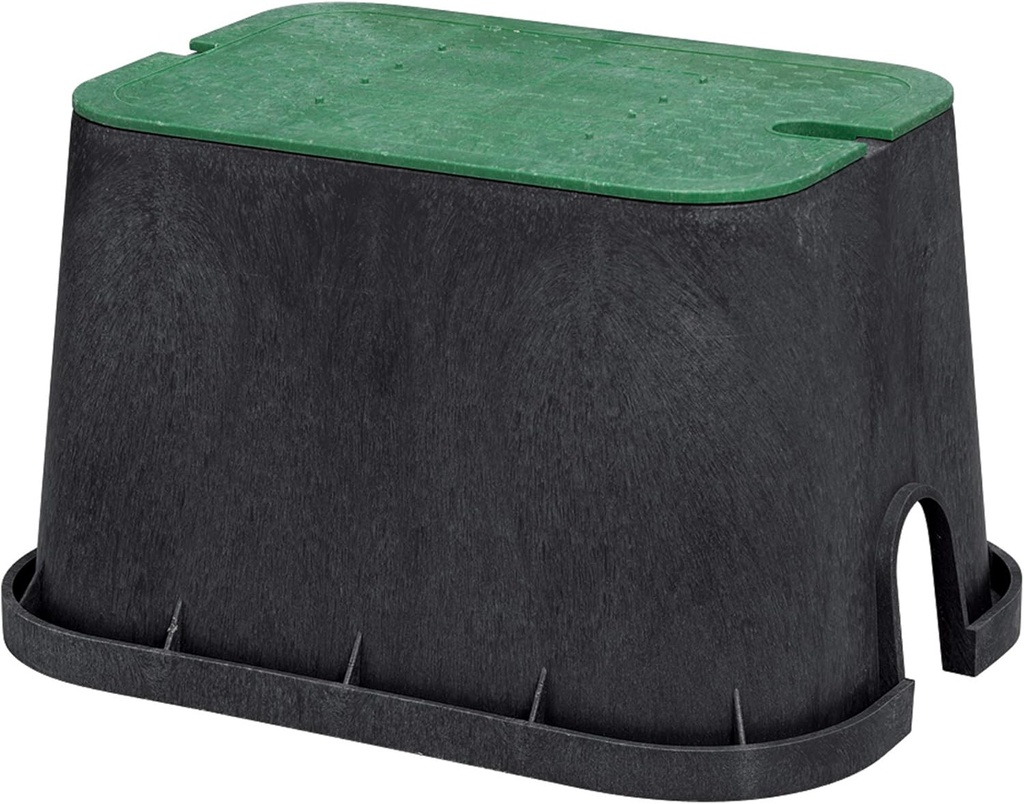

Orbit 53212 12" Standard Rectangular Sprinkler Valve Box
11 sold in last 24 hours
- For protecting valves, meters, filters, and other irrigation equipment; Engineered with heavy-duty HDPE to withstand UV and freezing

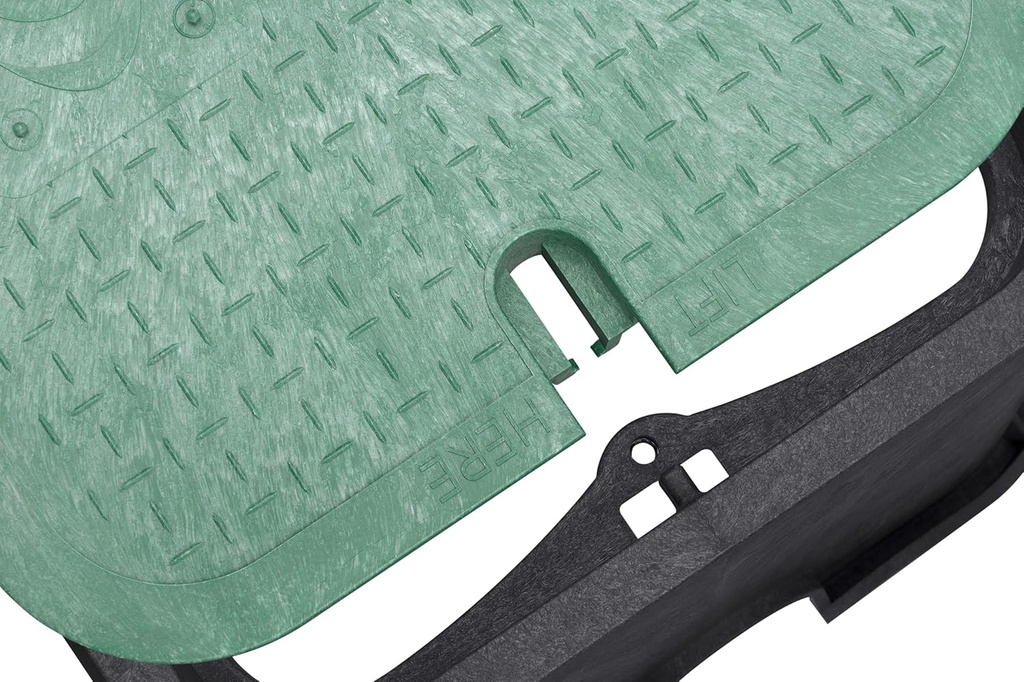

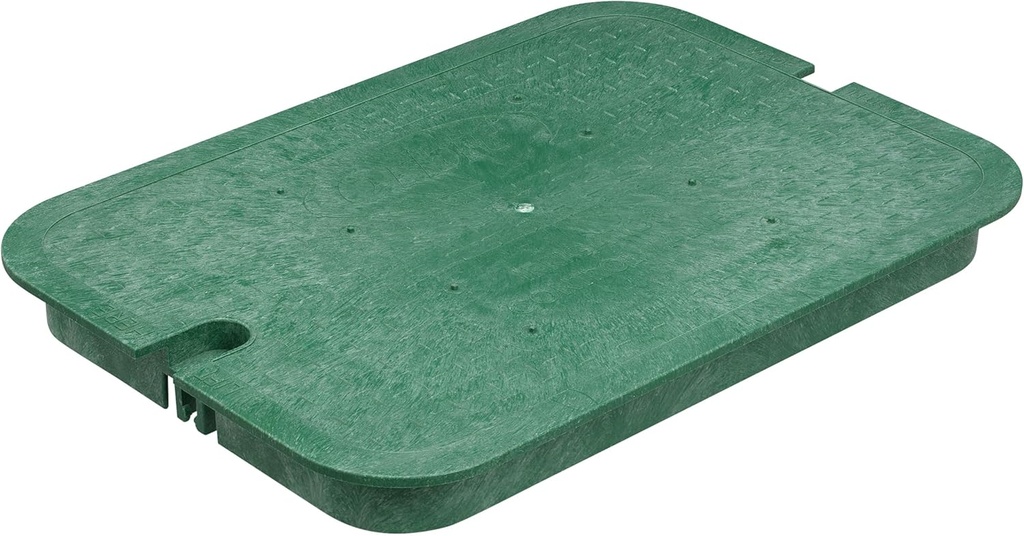

- Reinforced lid with optional locking bolt for impact resistance and security; Mousehole-shaped openings in bottom accommodate up to 2-inch pipe

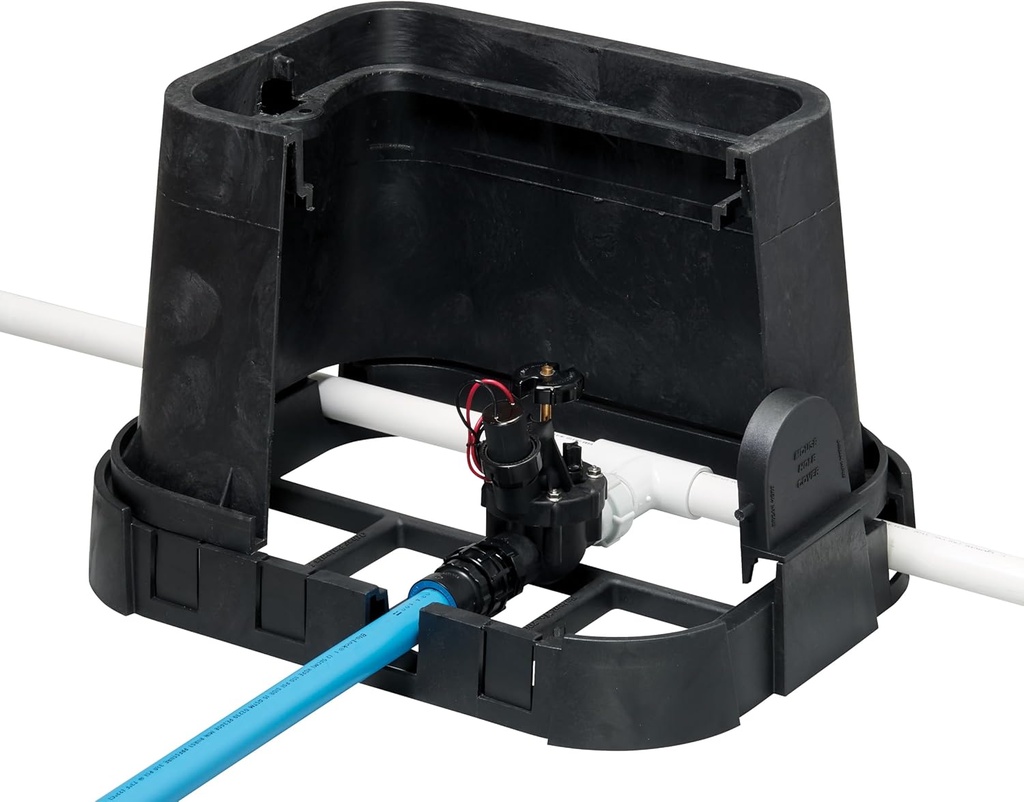

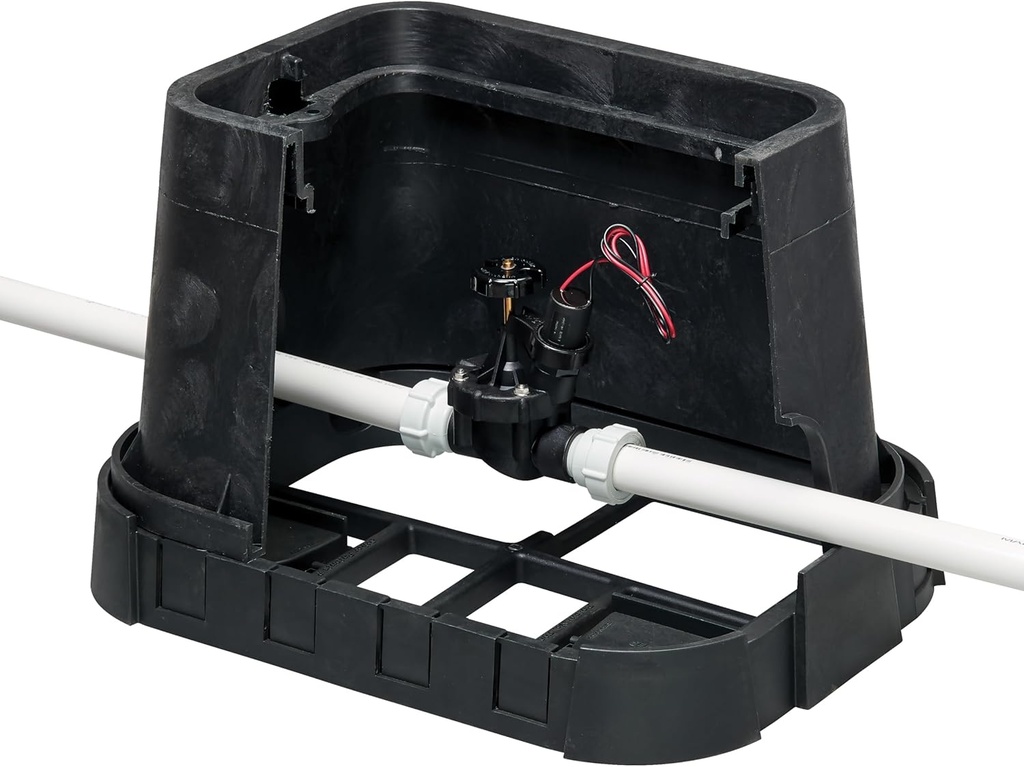

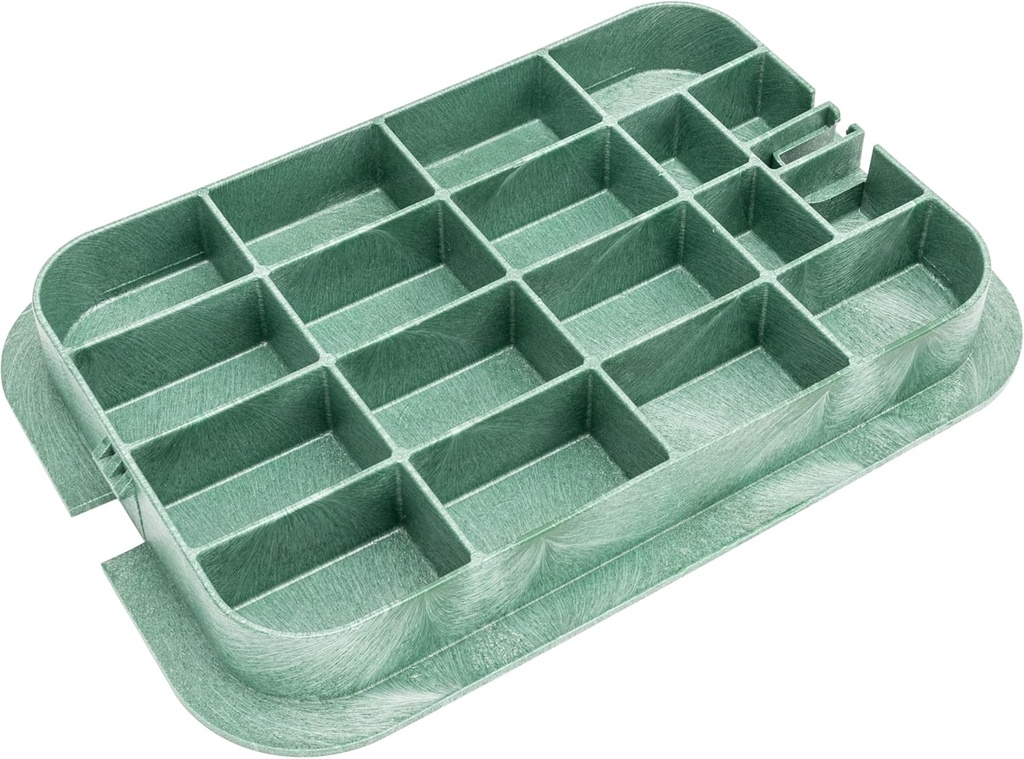

- For a professional manifold installation mount valve box on valve box base
- Compatible with equipment from Orbit, Hydro-Rain, and other major brands
Tags |
The rectangular valve box is designed to protect manual and automatic irrigation control valves, as well as meters, filters, and quick coupler valves. It is constructed from high-density polyethylene (HDPE) which enables it to stand up to UV, freezing and lawn equipment. Mousehole-shaped openings in the bottom of the box allow up to 2-inch pipe to pass through without cutting. The reinforced lid snaps securely onto the box. We recommend using the optional valve box base with the standard valve box, installing the valve box lid at grade level, and applying gravel beneath the base to promote drainage and prevent settling. Compatible with Orbit’s preassembled manifold system and components, as well as valves, filters, pipes, and fittings from Orbit, Hydro-Rain, and other major brands. For outdoor irrigation use with cold water only.
Extension valve boxes can be used in locations where the standard-height valve box isn't tall enough. It is made of the same durable, long-lasting materials as the standard valve boxes to keep your valves free from sand and dirt and the impact of weather. Extension valve boxes are available in 12 In. and 20 In. sizes.
Additional Information
| Size | 12 Inch |
|---|---|
| Material | Plastic |
| Brand | Orbit |
| Color | Black/Green |
| Item dimensions L x W x H | 20.75 x 15.5 x 12.25 inches |
| Connector Type | Cap |
| Thread Size | 2 inches |
| Exterior Finish | Granite Resin or Sandstone Resin |
| Thread Type | NPT |
| Item Weight | 134.4 Ounces, 8.4 pounds |
| Number of Pieces | 1 |
| Global Trade Identification Number | 00046878532120 |
| Manufacturer | Orbit |
| UPC | 046878530300 046878532120 |
| Product Dimensions | 20.75 x 15.5 x 12.25 inches |
| Department | Teak |
| Item model number | 53212 |
| Main Specification | |
|---|---|
| Item dimensions L x W x H | 20.75 X 15.5 X 12.25 Inches |
| Exterior Finish | Granite Resin Or Sandstone Resin |
| Brand | Orbit |
| Color | Black/Green |
| Thread Size | 2 Inches |
| Material | Plastic |
| Size | 12 Inch |
| Connector Type | Cap |
| Thread Type | Npt |
| Technical Details | |
| Item Weight | 134.4 Ounces |
| Others | |
| Product Type | Hose Pipe Fitting |
