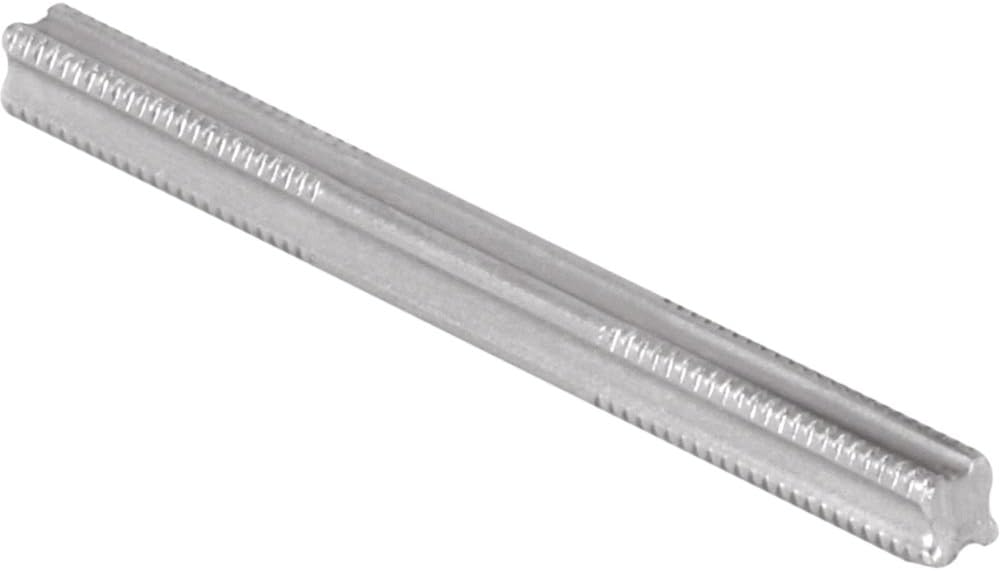

Prime-Line E 2459 Replacement Spindle, Square Drive System, 17/64 In. x 17/64 In. (2 Pack)
10 sold in last 24 hours
- These square drive spindles are used with vintage style door knobs and mortise lock systems
- Actual size is 17/64 inch x 17/64 inch x 3-1/2 inch (does not fit 1/4 inch)
- This item features 3/8 inch - 20 custom thread intended for door handles
- Zinc plated steel construction for durability

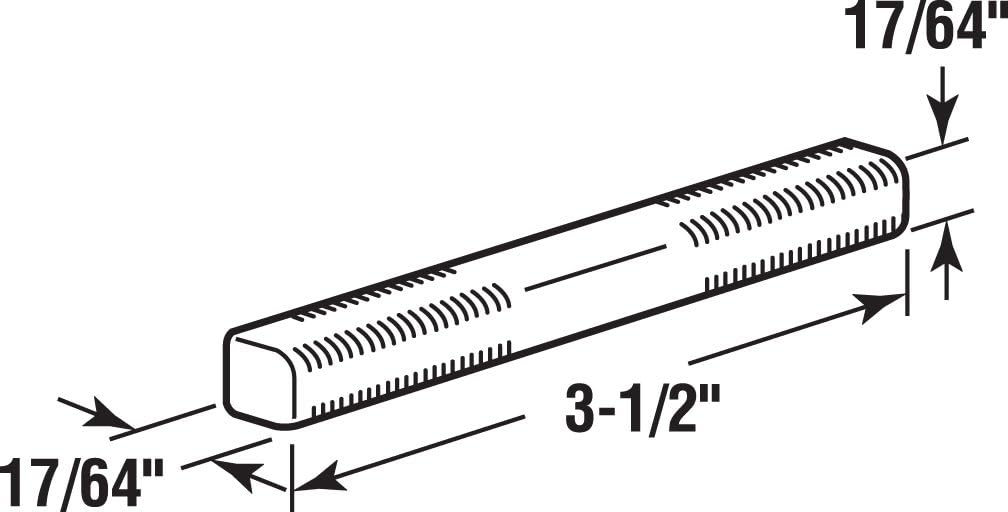

- Please refer to the line art drawing for dimensions and compare with your needs before ordering
- 1/4in. square drive
- Threaded shaft
These replacement spindles are used on vintage style door knob systems. They feature 3/8 inch–20 custom threading and come in a zinc plated finish. The nominal size of these shafts measure 1/4 inch x 1/4 inch x 3-1/2 inch, BUT their actual size is 17/64 inch x 17/64 inch x 3-1/2 inch. This square spindle fits 9/32 inch and 5/16 inch square openings, but it will NOT fit into 1/4 inch square drives. To ensure your handle secures to this spindle make sure to use a mid-grade adhesive on the tips of the threading to help "lock" the handle in place. Nominal size is 1/4 inch x 1/4 inch x 3-1/2 inch
| Main Specification | |
|---|---|
| Included Components | Hardware or Cabinet Hardware or Cabinet-And-Furniture-Knobs |
| Lock Type | Lock_type |
| Specific Uses For Product | Door |
| Exterior Finish | Zinc |
| Brand | Prime-Line |
| Product information | |
| Product Dimensions | 3.5"L X 3.5"W |
| Color | Zinc |
| Technical Details | |
| Special Feature | Easy To Install |
| Color | Zinc |
| Material | Alloy Steel |
| Others | |
| Product Type | Hardware Handle |
