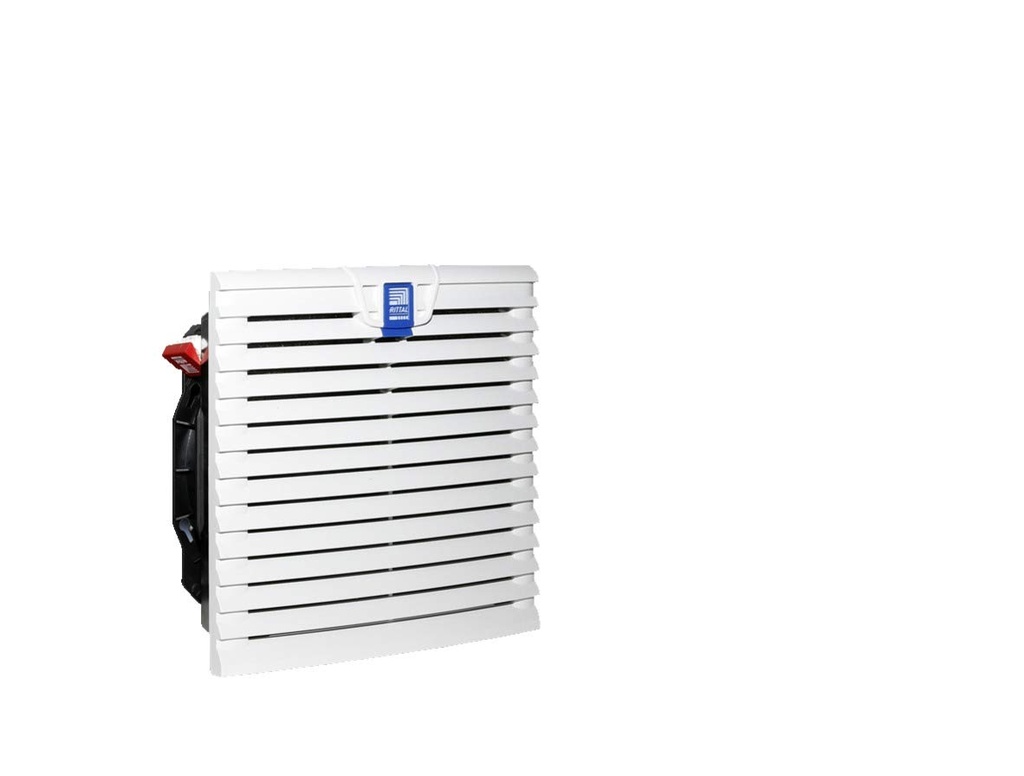

Rittal 3240110 Light Grey TopTherm Filter Fan, 10-1/32" Width x 10-1/32" Height x 5-3/16" Depth, 94 CFM, 115V

Filter Fan ready for installation, including drilling template, filter mat and assembly hardware. No tools required to mount Rittal TopTherm Filter Fans. Easy and tool-less reversal of the airflow direction by simply rotating the fan motor. Diagonal fan technology ensures greater pressure stability, constant airflow even with contaminated filter mat and flow optimized air-routing.Simple and tool-less filter mat replacement. Ratings: IP 54 (standard), IP 56 (when using a Type 3R Fan Shroud), NEMA 4/4X (when using a Type 3R Fan Shroud), NEMA 12 (standard), 115 Volt, 94 CFM, 10" Size. Air displacement, unimpeded air flow - 106/94 cfm. Air throughput with outlet filter - 1 x SK 3240.200: 81/71 cfm; 2 x SK 3240.200: 97/82 cfm; 1 x SK 3243.200: 97/82 cfm (165/140 m3/h). Diagonal fan - self-starting shaded pole motor. Rated current - 0.42 A/0.38 A. Power consumption - 35 W/34 W. Noise level - 51/46 dB (A). -22 degree F to 131 degree F Operating temperature. Light gray color. NEMA / IP Rating - IP 54 (NEMA 12) standard; IP 55 with additional fine filter mat; IP 56 (NEMA 4/4X) with additional hose-proof hood. Measures 10.04" width by 10.04" height by 5.20" depth. Certifications and approvals: CCC CCC 2003010401038566, CE CE 3527009, cUR E76083, UR E76083. Reference: ampere(A), cubic centimeter(cm3), watt(W), volt(V), hertz(Hz), British thermal unit(BTU), cubic foot per minute(cfm).

Product Dimensions

10.6 x 10.7 x 6.1 inches; 4.65 Pounds
