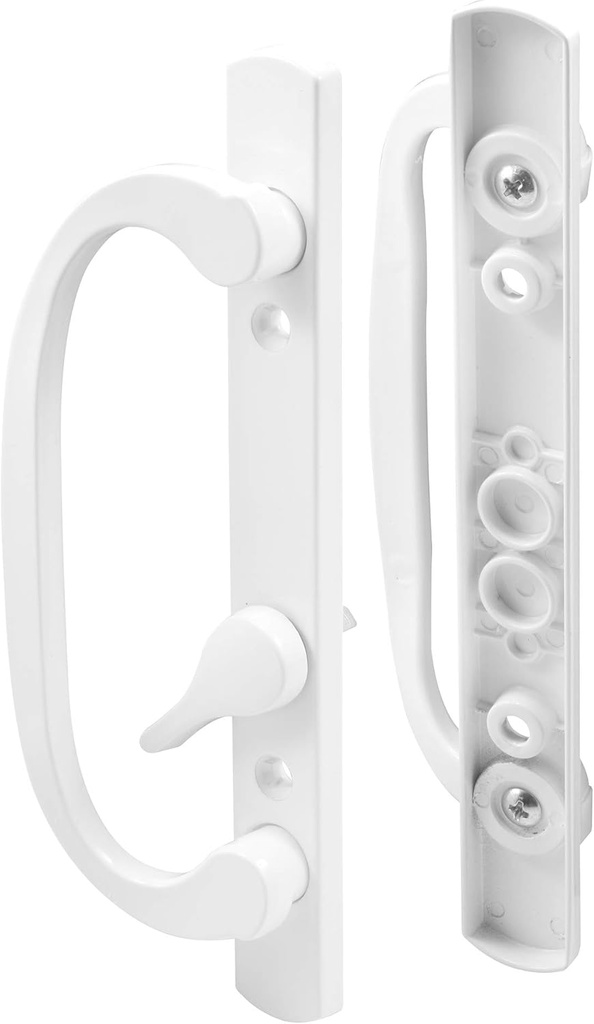

Slide-Co 144078 Diecast, White, Patio Door Handle, Offset Thumb turn (Single Pack)
4 sold in last 24 hours
- REPLACE OLD OR BROKEN DOOR HANDLES – When your door handle is broken, old or unsightly, don’t replace the door entirely, just get a new sliding patio door handle set! This handle is for mortise-style doors and features an offset thumbturn/lever.
- INCLUDES – The patio door handle set comes with matching inside and outside white diecast handles that fit on door thicknesses that range from 1-5/8 inch to 1-3/4 inch thick. Mounting hole centers are 3-15/16 inch.
- NON-HANDED CONSTRUCTION – The sliding door handles can be used on either right- or left-handed doors by reversing the handle on the mounting plate.
- EASY INSTALLATION – Installation is quick and easy with all hardware included. The white diecast lever operates various mortise latches installed in the door (mortise latch sold separately). The handle set is non-keyed, but a lock can be added.

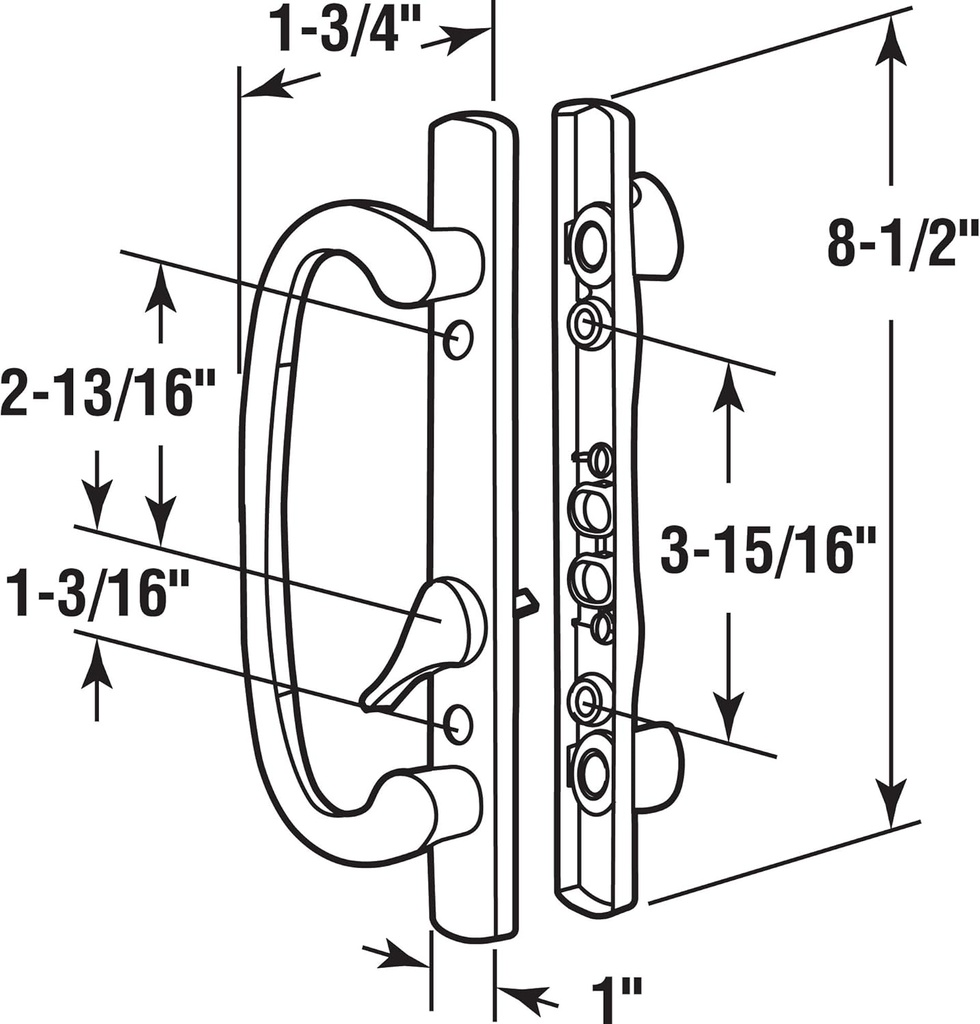

- Please refer to the line art drawing for dimensions and compare with your needs before ordering
Tags |
This patio door handle set has matching inside and outside pulls, with offset thumb turn/lever. Features a white finish that is non-handed and used by a variety of manufacturers. This is a low profile non-keyed handle set that can be keyed. Can be found on a variety of sliding patio doors across the nation. The white finish is easily cleaned. If you are looking for mortise latches to use with this patio door handle please reference the following items that Prime-Line provides (E 2009, E 2013, E 2014, E 2079, E 2473, E 2474 and E 2475).
Slide-Co 144078 White Sliding Patio Door Handle Set is a die cast inside and outside pull set. Fits most mortise lock systems. Non-handed with painted finish. Screw holes 3-15/16” apart.
| Main Specification | |
|---|---|
| Manufacturer | Tv Non-Branded Items (Home Improvement) |
| Unit Count | 1.0 Count |
| Lock Type | Key Lock |
| Handle Material | Metal |
| Exterior Finish | Chrome |
| Hand Orientation | Ambidextrous |
| Brand | Slide-Co |
| UPC | 078874440789 |
| Number of Items | 1 |
| Item Package Quantity | 1 |
| Item Depth | 1-2 Inches |
| Product information | |
| Item model number | 144078 |
| Is Discontinued By Manufacturer | No |
| Product Dimensions | 5"L X 4.75"W |
| Product Dimensions | 5"L X 4.75"W |
| Color | White |
| Size | 1 Pack |
| Customer Package Type | Standard Packaging |
| Technical Details | |
| Item Weight | 1.45 Pounds |
| Special Feature | Easy To Install |
| Part Number | 144078 |
| Finish | Plated |
| Number Of Pieces | 1 |
| Special Features | Easy To Install |
| Batteries Required? | No |
| Batteries Included? | No |
| Center To Center Spacing | 3.81 Inches |
| Handle Attachment Mechanism | Mortise Latch |
| Material | Alloy Steel |
| Material | Alloy Steel |
| Item details | |
| Included Components | Screw |
| Others | |
| Product Type | Hardware Handle |
