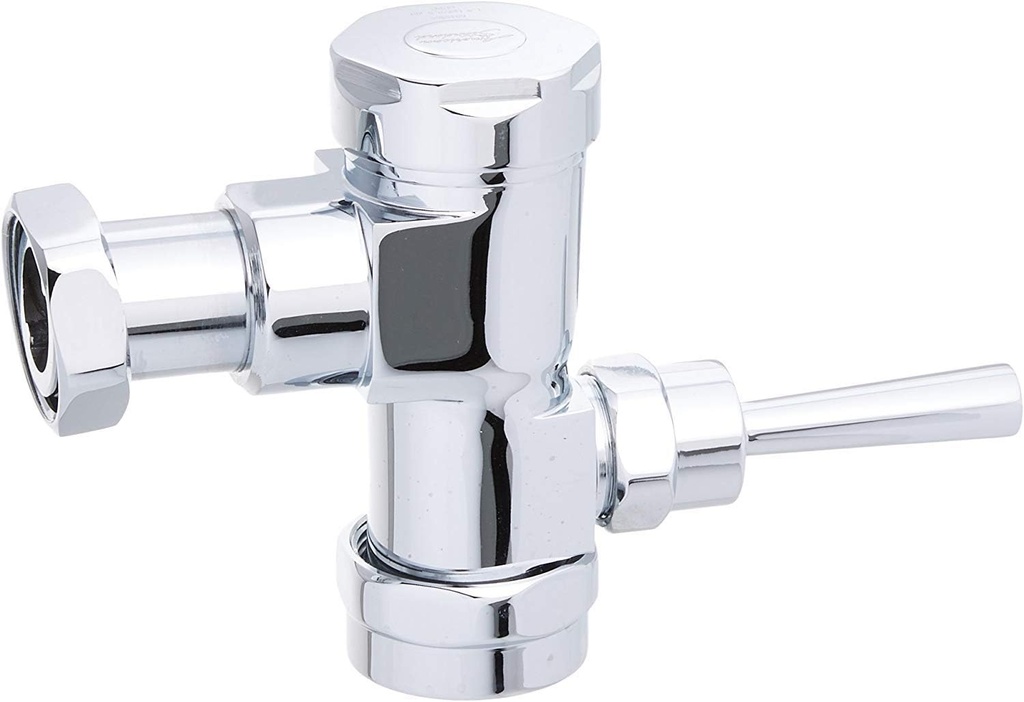

American Standard 6045.510.002 Exposed Manual Flowise 1.0 Gpf Urinal Flush Valve Only for Retrofit, Polished Chrome
5 sold in last 24 hours
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- Non-hold open handle
- Positive seal ensures leak-free performance
- ADA Compliant
Tags |
This American Standard urinal flush valve features a self-cleaning brass piston with integral wiper spring which prevents clogging and reduces maintenance. The piston operation delivers superior flush accuracy and repeatability. The piston valve remains closed and does not need to be reset after a loss of water pressure. The handle on this flush value does not need to be held in the open position for flushing. The American Standard flush valve is made of durable chrome-plated cast brass construction and is ideal for commercial applications. It also features Chloramine-resistant EPFM seals. It has a adjustable tailpiece for rough-in flexibility. ADA Compliant
This American Standard urinal flush valve features a self-cleaning brass piston with integral wiper spring which prevents clogging and reduces maintenance. The piston operation delivers superior flush accuracy and repeatability. The piston valve remains closed and does not need to be reset after a loss of water pressure. The handle on this flush value does not need to be held in the open position for flushing. The American Standard flush valve is made of durable chrome-plated cast brass construction and is ideal for commercial applications. It also features Chloramine-resistant EPFM seals. It has a adjustable tailpiece for rough-in flexibility. NOT INCLUDED: escutcheon, supply stop, cover tube, vacuum breaker
Technical Details
| Material | Synthetic Rubber |
|---|---|
| Brand | American Standard |
| Item dimensions L x W x H | 9 x 3.4 x 12.8 inches |
| Exterior Finish | Chrome,Polished |
| Inlet Connection Type | Female Iron Pipe |
| Outlet Connection Type | Female Iron Pipe |
| Number of Ports | 1 |
| Outlet Connection Size | 0.75 Inches |
| Specification Met | ADA |
| Global Trade Identification Number | 00012611471018 |
| Manufacturer | American Standard |
| UPC | 012611471018 |
| Part Number | 6045510.002 |
| Item Weight | 2.8 pounds |
| Product Dimensions | 9 x 3.4 x 12.8 inches |
| Item model number | 6045510.002 |
| Size | 3.4 x 9 x 12.8 inches |
| Color | Polished Chrome |
| Finish | Chrome |
| Installation Method | Urinal |
| Item Package Quantity | 1 |
| Water Consumption | 1 Gallons per Flush |
| Batteries Included? | No |
| Batteries Required? | No |
| Main Specification | |
|---|---|
| Exterior Finish | Chrome or Polished |
| Item dimensions L x W x H | 9 X 3.4 X 12.8 Inches |
| Inlet Connection Type | Female Iron Pipe |
| Outlet Connection Size | 0.75 Inches |
| Number of Ports | 1 |
| Specification Met | Ada |
| Brand | American Standard |
| Outlet Connection Type | Female Iron Pipe |
| Material | Synthetic Rubber |
| Global Trade Identification Number | 00012611471018 |
| Others | |
| Product Type | Valve |
