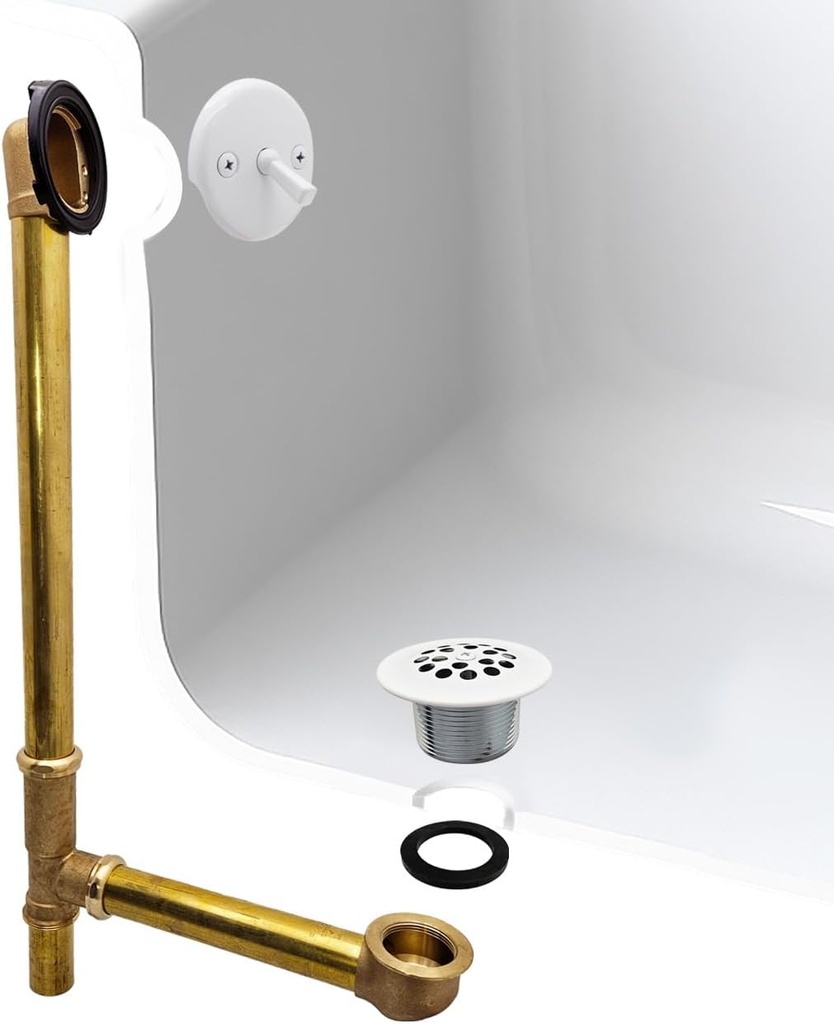

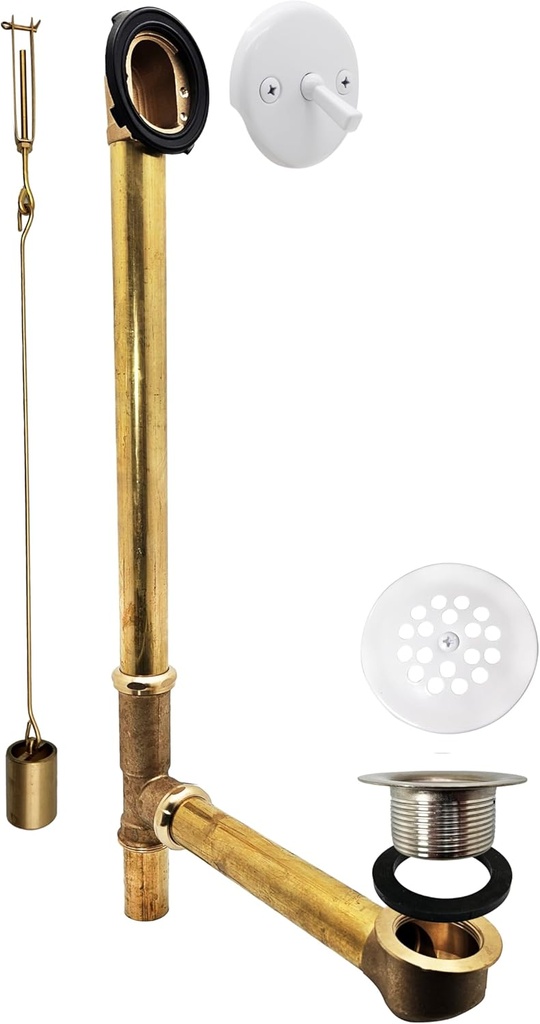

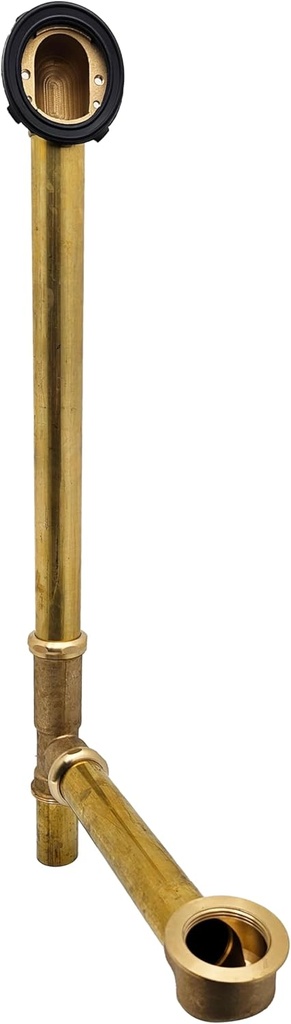

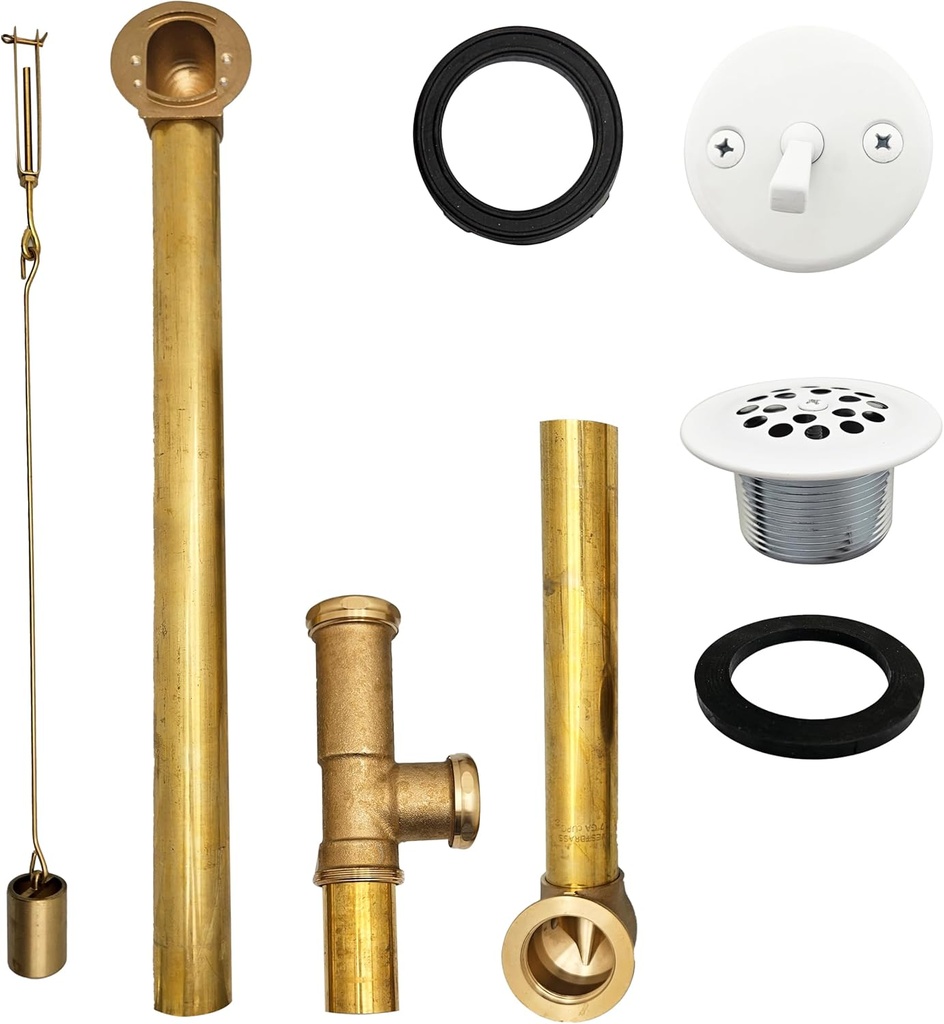

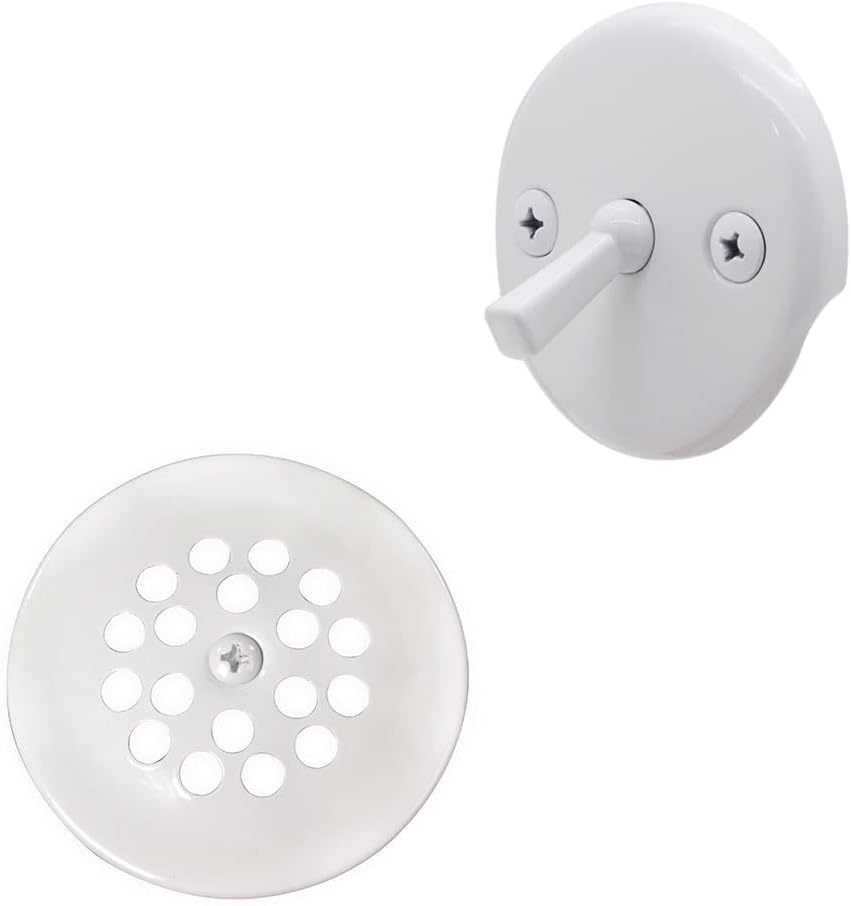

The Westbrass Beehive Grid Bath Waste Assembly combines traditional style with robust brass construction for long-lasting performance in residential and commercial bathroom installations. Designed with a 22-1/2 inch maximum make-up, this 1-1/2 inch brass tubular assembly uses 17 gauge tubing for exceptional strength and durability. The bathtub drain shoe features a raised beehive-style Gerber grid that promotes rapid water drainage while preventing debris from entering the pipe system. A two-hole trip lever faceplate is included, mounted using two plated brass screws for reliable overflow control. The set also comes complete with a two-hole top elbow, tee, and shoe, along with solid brass half-ferrules for leak-resistant connections. Ideal for upgrading existing drains or new installs, this all-metal solution delivers both functionality and classic appeal. Be sure to check out our other model styles and VISIT OUR WESTBASS STOREFRONT for more Kitchen and Bath items to stylize your home with convenient functionality and beauty.
Westbrass was founded in 1935 by two brothers, Jack and Aaron Kagan, to serve the needs of all plumbing wholesalers on the West Coast. The product lines at the time included items such as faucets, valves, malleable fittings, etc. After becoming the premier distributor of plumbing products, the company was bought in 1985 by Max Homami. Seeing a boom in the Home Improvement Industry, Mr. Homami had a vision to make Westbrass the leader in Kitchen & Bath Accessories.
The company currently manufactures its own products made of the highest quality materials. In order to ensure the excellence in the industry, these products are made to pass the highly stringent requirements of NSF, IAPMO, ADA and many other regulations. The Los Angeles-based company now sells a wide range of Plumbing Specialty Products, Bath Waste & Overflows, as well as Decorative Kitchen & Bath Accessories worldwide.
Westbrass holds several patented items including the Deep Soak Overflow designed for extra-deep soaking in most bathing-wells, the Closing Linear overflow and several other intellectual properties. The customer base includes kitchen & bath showrooms, plumbing wholesalers and supply houses, OEM and ODM companies, as well as several national home centers.
Technical Details
| Brand | Westbrass |
|---|
| Color | Powder Coat White |
|---|
| Material | Brass |
|---|
| Size | 1 Pack |
|---|
| Product Dimensions | 11"D x 1.5"W x 22.5"H |
|---|
| Style | Trip Lever |
|---|
| Installation Type | Professional |
|---|
| Finish Type | Powder Coat White |
|---|
| Shape | Round |
|---|
| Drain Type | Grid |
|---|
| Base Width | 1.5 Inches |
|---|
| Product Care Instructions | Wipe with Dry Cloth |
|---|
| UPC | 747028030489 |
|---|
| Global Trade Identification Number | 00747028030489 |
|---|
| Manufacturer | Westbrass |
|---|
| Part Number | D324-50 |
|---|
| Item Weight | 4.75 pounds |
|---|
| Item model number | D324-50 |
|---|
| Finish | Powder Coat White |
|---|
| Item Package Quantity | 1 |
|---|
| Handle Material | Brass |
|---|
| Included Components | (1) - Bath Waste & Overflow Assembly |
|---|
| Batteries Required? | No |
|---|
| Warranty Description | 1 Year Limited Warranty |
|---|
