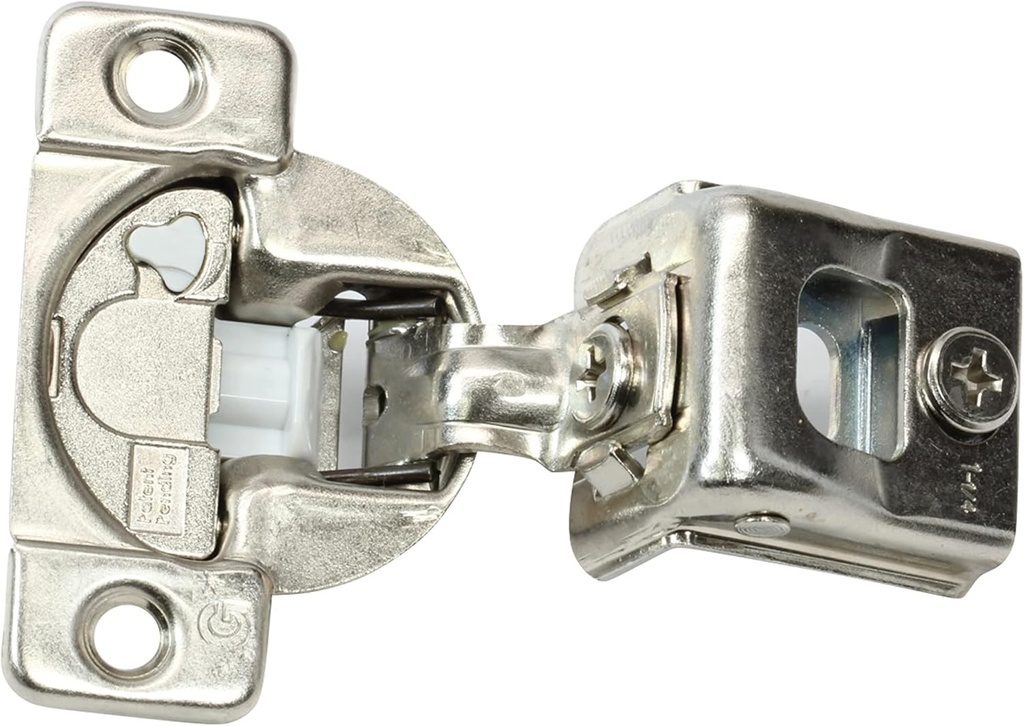

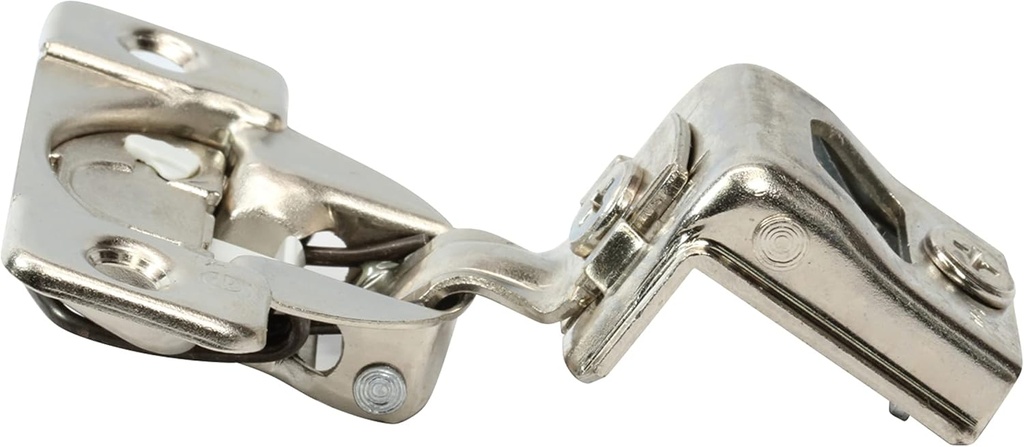

2 Pack Rok Hardware Grass TEC 864 108 Degree 1-1/4" Overlay 3 Level Soft Close Screw On Compact Cabinet Hinge 04547A-15 3-Way Adjustment 45mm Boring Pattern
5 sold in last 24 hours
- GRASS TEC 864 Soft Close Cabinet Hinge MADE IN THE USA

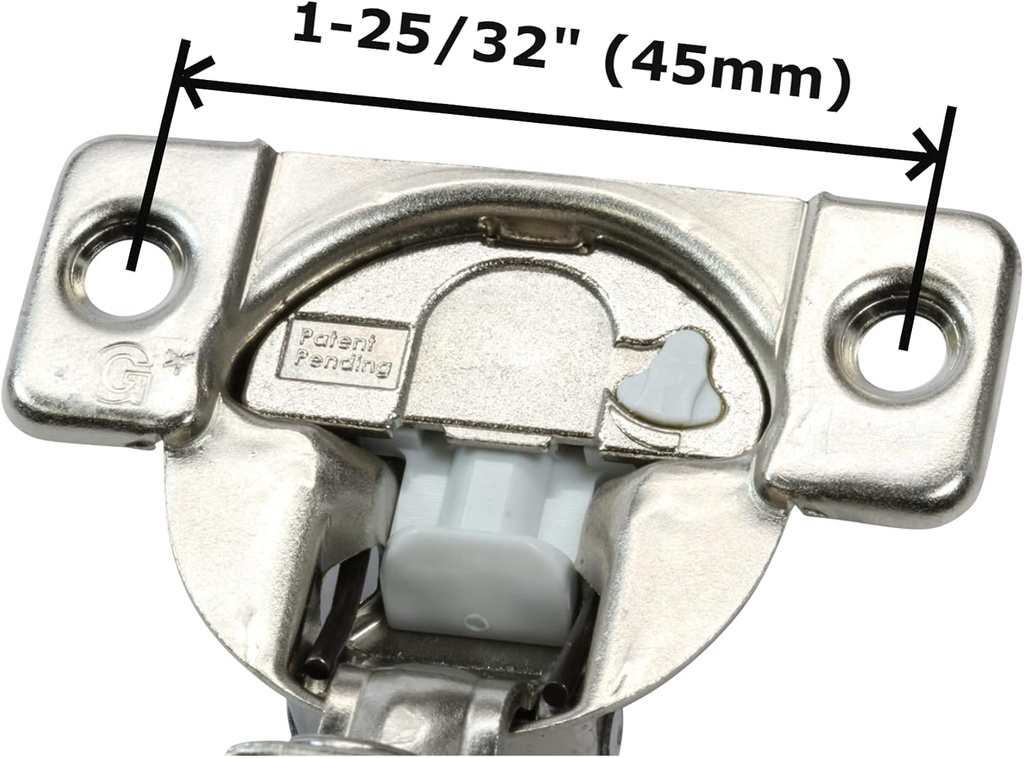

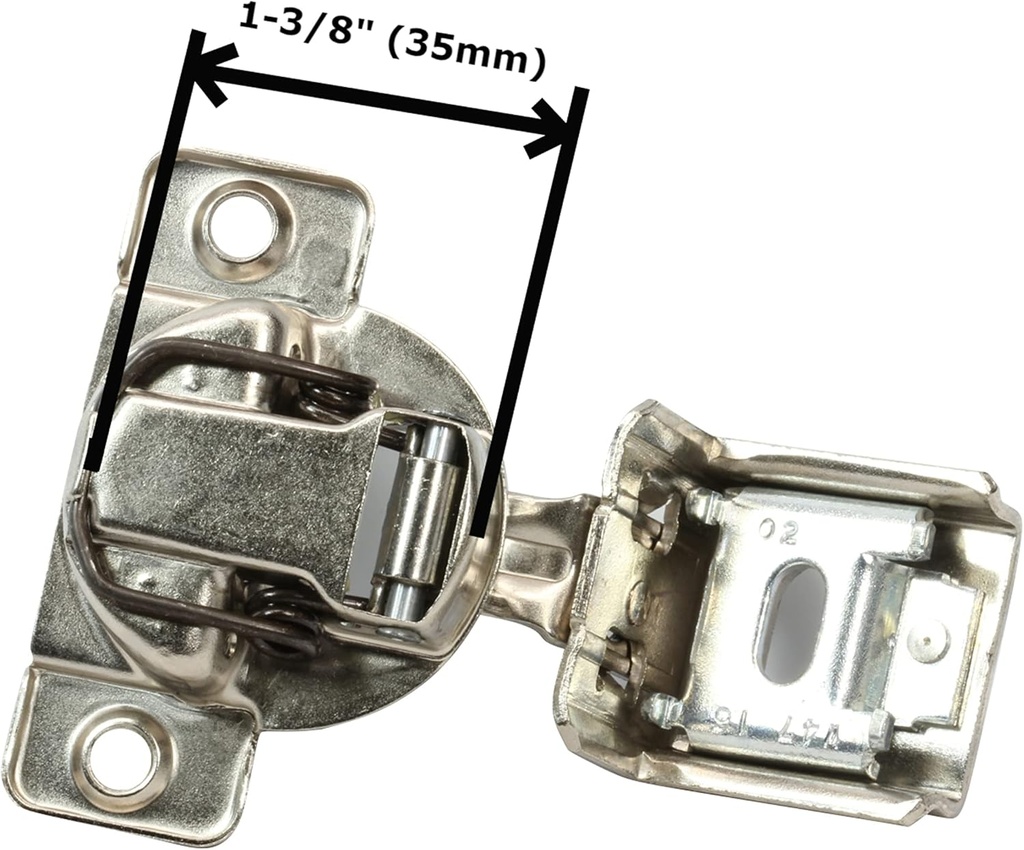

- 3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle; cup diameter: 1-3/8" (35mm) and screw hole distance: 1-25/32" (45mm)
- Screw on wrap around mount cabinet hinge Includes 2x #6 x 5/8" Wood Screws and 1x #10 x 3/4" Wood Screw
- 1-1/4 in overlay soft closing hinge with custom 3 level soft close strength switch

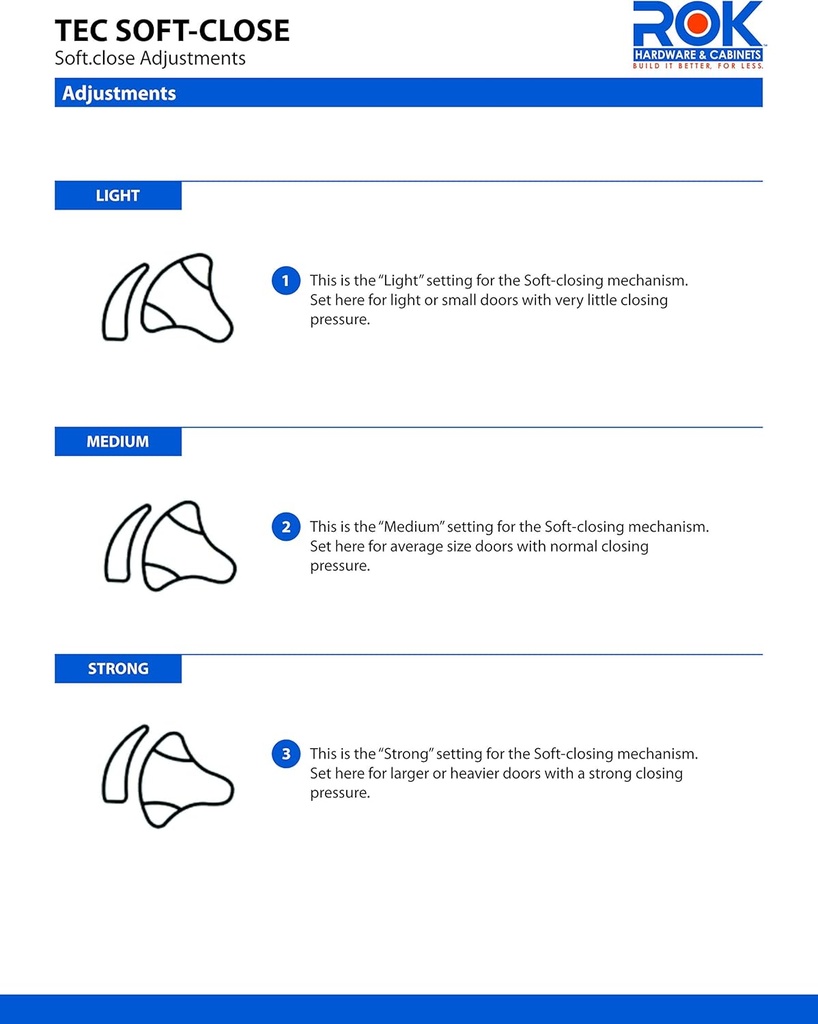

- 3 level soft close technology Off, Low and High. You choose the soft closing strength for your cabinet doors.
Tags |
MADE IN THE USA
Face Frame Hinge with integrated Soft-close
Soft-close damper is premounted in the hinge cup
Adjustment switch to regulate closing action
One piece hinge and base plate combination

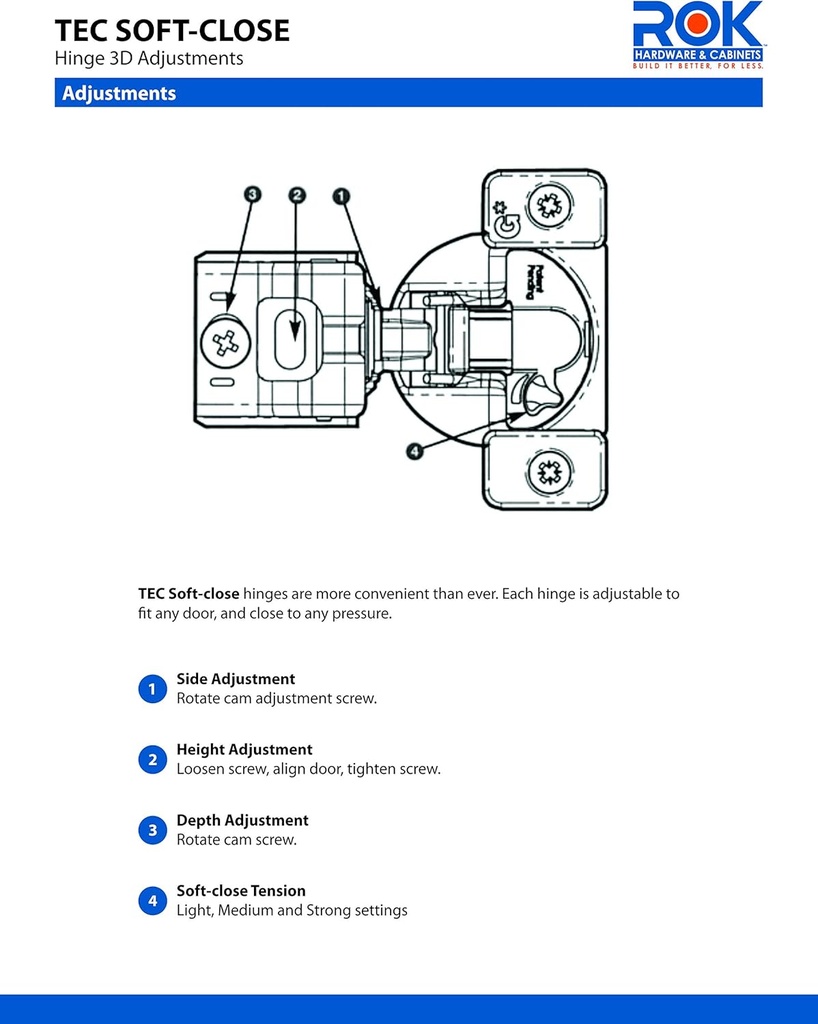

3 dimensional adjustment
11 mm (7/16”) cup drilling depth
Front locating tabs position hinge on face frame
Cam side adjustment
Cam depth adjustment
Height adjustment at mounting screw
Works with current Grass insertion machinery
Includes 2x #6 x 5/8" Wood Screws and 1x #10 x 3/4" Wood Screw
Replacement part for Blum 39C355C.20 39C355B.20
Technical Details
| Material | Metal |
|---|---|
| Brand | Rok |
| Finish Type | Unfinished |
| Mounting Type | Door Mount |
| Hole Count | 1 |
| Unit Count | 2.0 Count |
| Manufacturer | Grass |
| UPC | 600346749849 |
| Part Number | 04547A-15 |
| Item Weight | 3.68 ounces |
| Package Dimensions | 7.87 x 5.55 x 1.46 inches |
| Item model number | G04547A-15-2 |
| Is Discontinued By Manufacturer | No |
| Size | 1-1/4 Inch |
| Style | compact hinge |
| Finish | Unfinished |
| Pattern | soft close TEC 864 |
| Item Package Quantity | 2 |
| Number Of Pieces | 2 |
| Usage | cabinet |
| Batteries Included? | No |
| Batteries Required? | No |
| Main Specification | |
|---|---|
| Manufacturer | Grass |
| Unit Count | 2.0 Count |
| Hole Count | 1 |
| Brand | Rok |
| UPC | 600346749849 |
| Material | Metal |
| Finish Type | Unfinished |
| Mounting Type | Door Mount |
| Others | |
| Product Type | Hardware Hinge |
