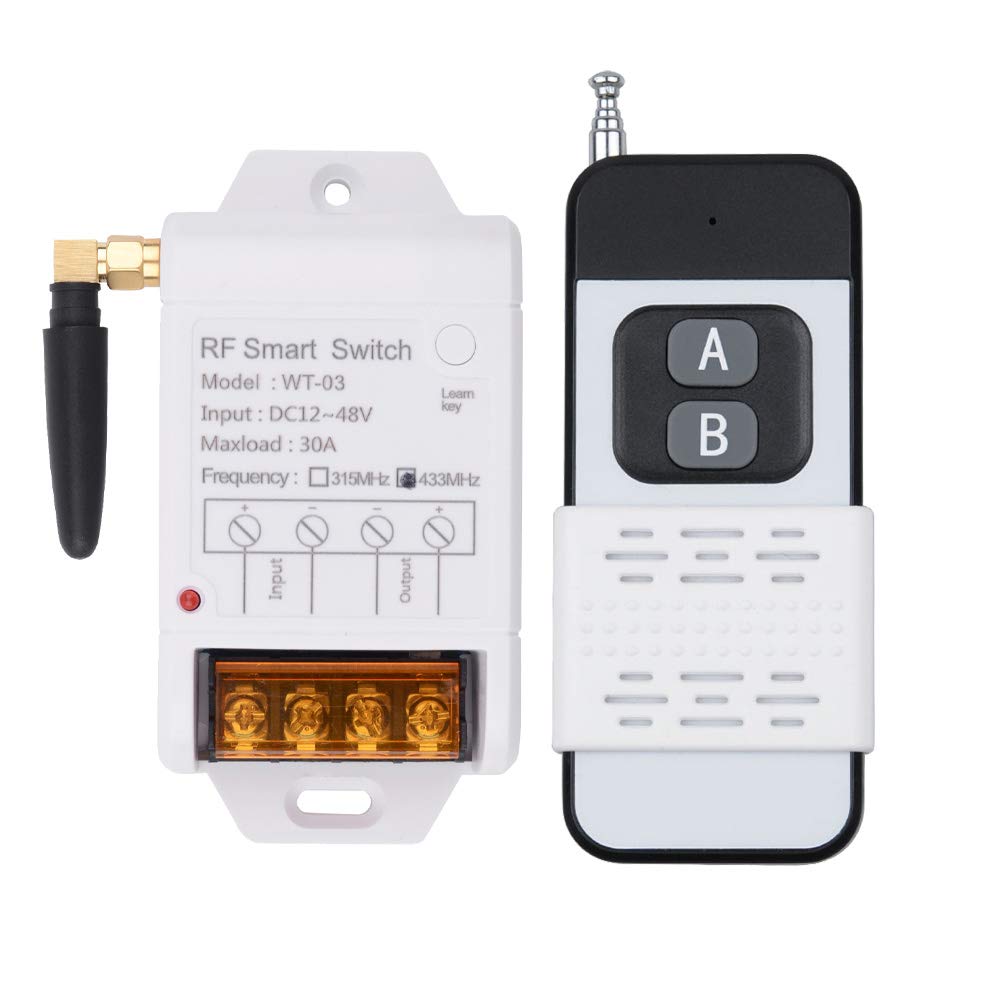

$ 39.98DC12V - 48V Wireless Remote Switch 30A 433Mhz Long Range Remote Relay, Universal 1 Channel Remote Transmitter with Receiver for Water Pump, Lights, Security Systems Garage Door etc.
11 sold in last 24 hours
- Working voltage: DC12V-48V; Output voltage: DC12V-48V; Working frequency: 433mhz; Max load current: 30A; about Receiver Size: 2.1*4.3*1.37 IN
- 【 Application】: It is mainly used in 12V-48V include Anti-Theft Alarms, Security Systems Roller Lind Door,Gate Barriers ,Household Appliances,Pump,Lights Ceiling and Electrical Equipment ,Water Pump, Lamp, Security Systems Garage Door，industrial control and security industry and other fields
- 【EASY to USE】We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
- 【SIGNAL Stability】The RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is 20-150Meters with no obstacle.
- 【Working Mode】：we send latched mode default，You can change the working mode yourself（Momentary；Toggle；Latched；Delay time (5seconds)；Delay time (10seconds)；Delay time (15seconds)；Delay time (20seconds)） . Customer satisfaction is our goal，so If you encounter any problems in use, please feel free to contact us any time, we will be happy to serve you, thank you very much
Tags |
About Receiver:
Model No.: WT-03
Working voltage: DC12V-48V
Receiver sensitivity: more than -114dBm（RXB8 receiver module ）
Output voltage: DC12V-48V
Size: 55*110*35mm
Max load current: 30A
Applications: Water Pump, Motor ,Lamp etc
About Working way:
Momentary: jumper doesn't connect any two pins.
Relay: Press and hold -> On; Release -> Off.
Toggle: jumper connects the pin T and pin S.
Relay: Press -> On; Press same button again -> Off·
Latched: jumper connects the pin L and pin S.
Relay: Press -> On; Press other button -> Off.
Delay time :Press remote control button, the corresponding relay actuates and keeps working until the time out.
Learn method：Input 12V for the Receiver ,
Momentary: Long press the Learning Button until Led indicator flash 1 time. Then press transmitter, the Led indicator flash for 5times, it mean learning successfully.
Toggle: Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 2 times again ,and press transmitter, the Led indicator flash for 5 times, it mean learning successfully.
Latched: Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 1 times again , press transmitter A button,the Led indicator flash for 3 times ,Then press transmitter B button,the Led indicator flash for 3 times again,it mean learning successfully.
Delay time (5S): Long press the Learning Button until Led indicator flash 1 time. Then press Learning button 3 times again ,and press transmitter, the Led indicator flash, it mean learning successfully.
Clearing method :Press the Learning button.Until the receiver Led indicator flash for 3 times and OFF, it mean Clearing Code
About Transmitter: 2 Buttons; Working Voltage:DC12V (1PCS 23A); Remote Distance: 20 -150M; Operating Current: 13 mAh; Encode: Fixed code / EV1527 code
Package Include:
1 x Receiver
1 x Transmitter
Product Dimensions
5 x 3 x 1.5 inches; 5.61 ounces
| Main Specification | |
|---|---|
| Brand | Fushionsea |
| Others | |
| Product Type | Relay |
