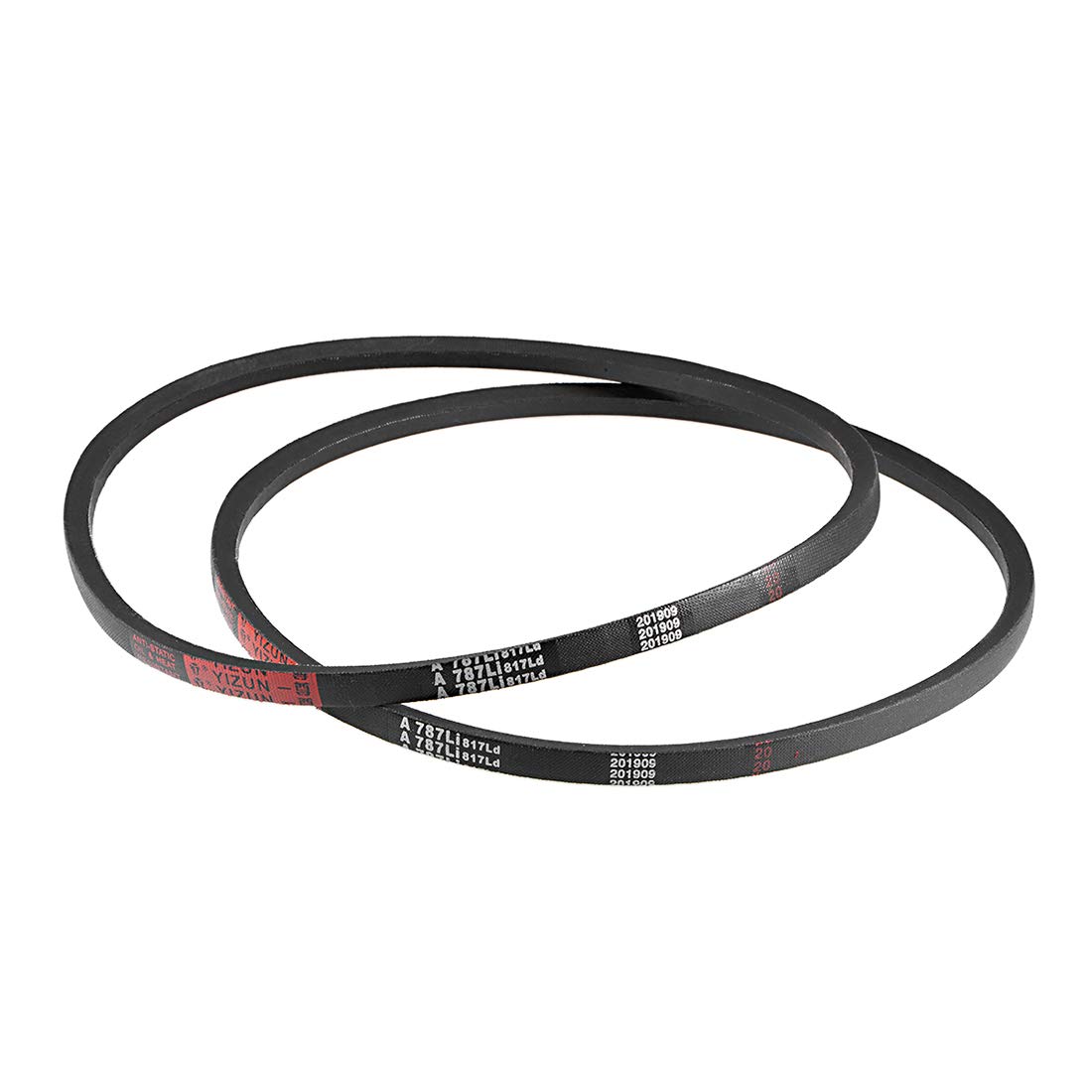

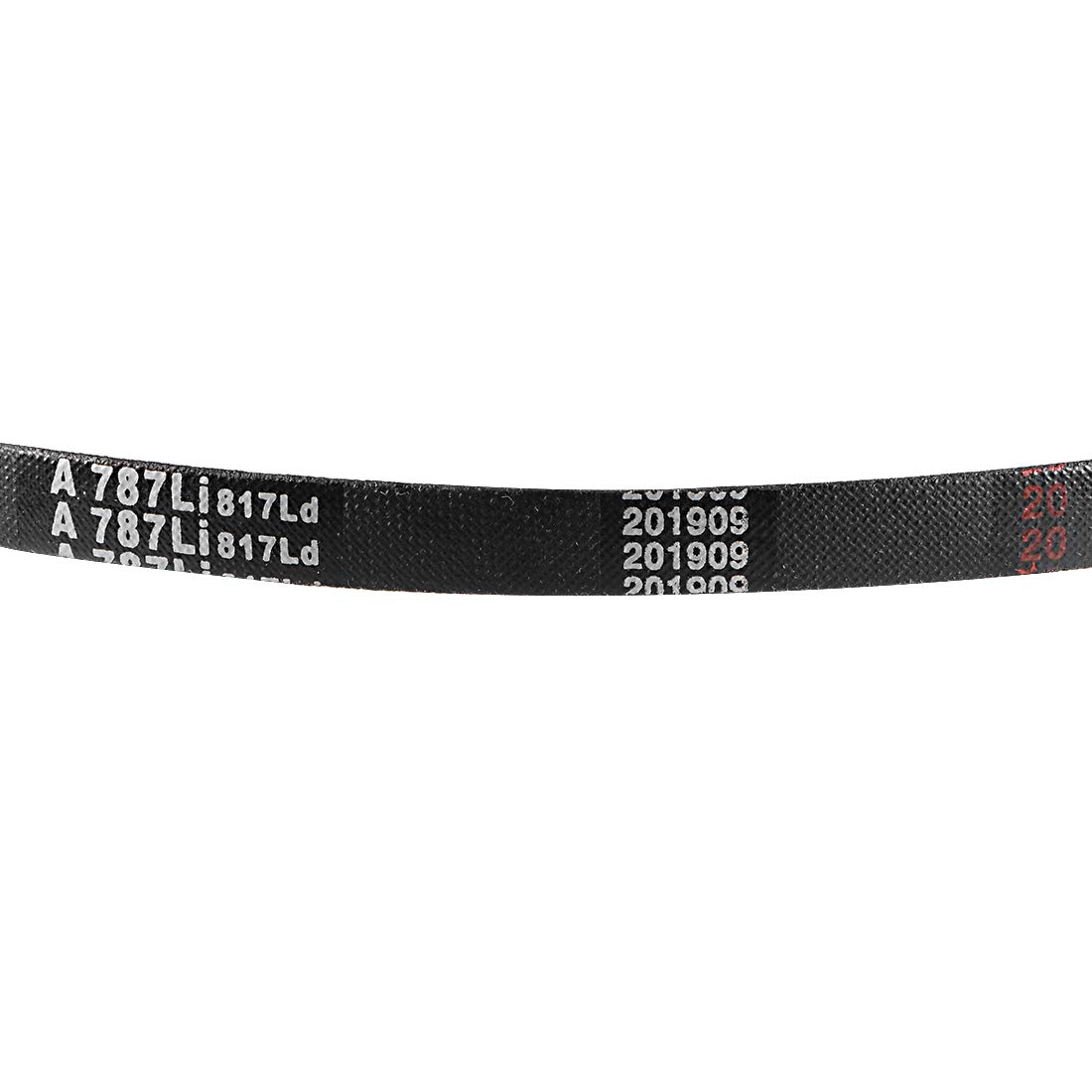

uxcell A787 V-Belts 787mm Inner Girth 13mm Top Width 8mm Thickness A-Section Rubber Drive Transmission Belt 2pcs

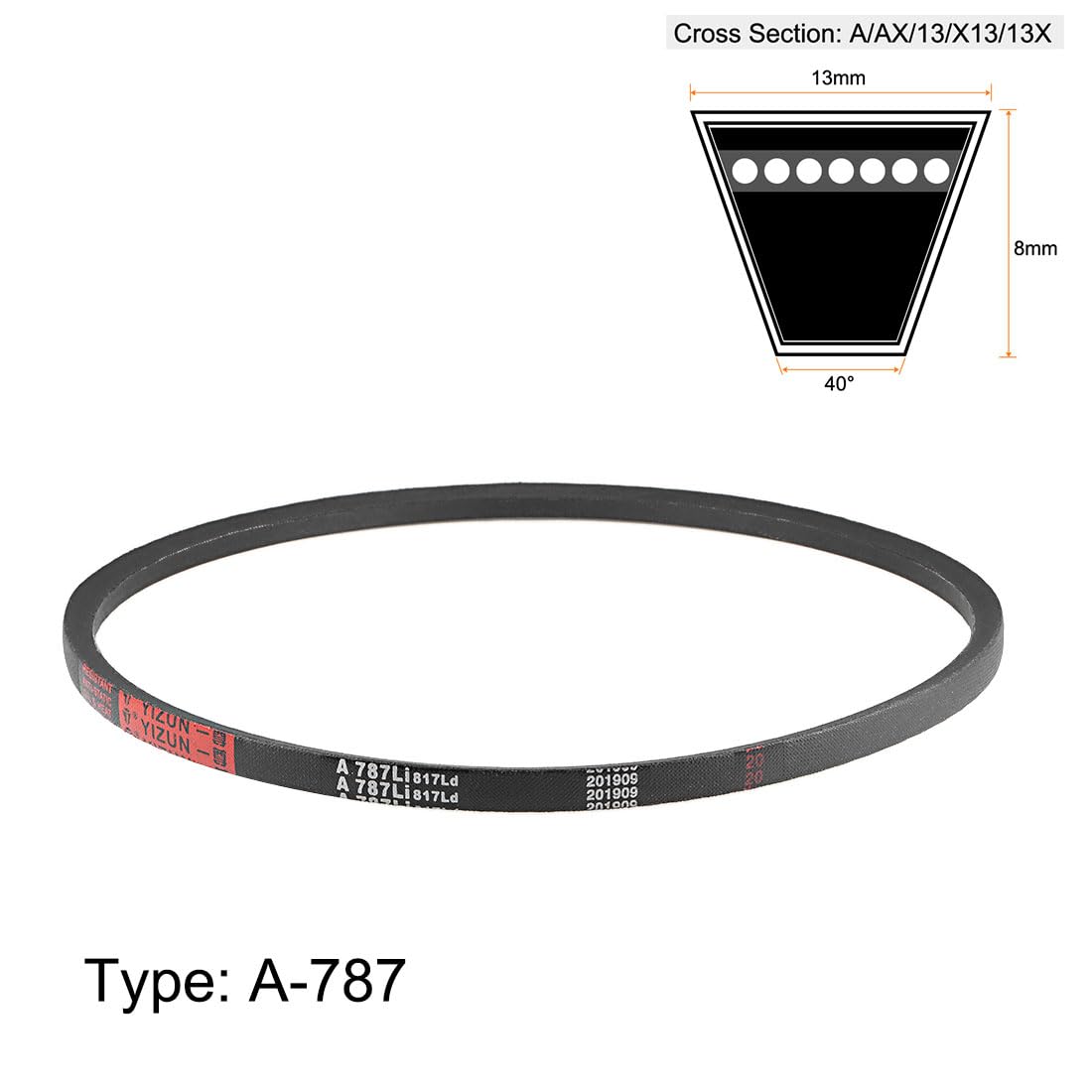

- Size: Model: A787; Inner Girth: 787mm; Top Width: 13mm;Thickness: 8mm; Angle: 40 degree
- Material: It is made of neoprene rubber for resistance to oils, water, and some solvents. High-density double-layer blend cover, polyester core, which has high strength, and high toughness.
- Function: To link two or more rotating shafts to transmit power in a drive system. Even load distribution on belt drives and good wear resistance.
- Feature: The trapezoidal shape of the belt cross section wedges into the groove of a similarly shaped sheave or pulley to provide traction and alignment.
- Applications: Used for drive systems in the automotive, lawn mower, textile, printing, bandsaw, snow blower, drill press, industrial fan, tractor, etc.
| Manufacturer | Uxcell |
| Brand | Uxcell |
| Belt Style | V Belt |
| Number of Items | 2 |
| Product Dimensions | 31"L x 0.51"W |
| Compatible Devices | Lawn Mower |
| Item Weight | 0.2 kg |
| Part Number | a19111100ux1738 |
| Product Type | V-Belts |
| Item Dimensions L x W | 31"L x 0.51"W |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWYFIDDN7AEGT7 |
Category |
Power Transmission Products , Belts , V-Belts |
Tags |
Estimated shipping
Select a product to estimate shipping.How to measure the length of the required belt:
Wrap the rope around the two pulleys
Make a mark
Place the marked rope on a flat surface and use a tape measure to measure the distance between the two marks, which is the inner circumference of the belt
To accurately measure the length of the v-belt, use a belt measuring tool or a soft ruler, not a steel ruler.
The width and thickness of the belt should also be measured to confirm the type of belt.
Installation:
First, loosen the tensioning device, then press the v-belt into the pulley groove by hand, and finally tighten it again.
Notice:
Pay attention to the wear of the belt groove of the v-belt pulley.
Check whether the centerline of the two pulley shafts is parallel, whether the corresponding pulley slots are aligned, and whether there is any skewing phenomenon.
When one v-belt is badly worn and cannot be used, replace all the v-belts at the same time, with the same type and equal length, so that each belt has the same tension.
Maintenance:
Regularly check the v-belt tension, after adjustment still can not meet the specified requirements, must be replaced with a new v-belt.
In use, the operating temperature of the v-belt should not exceed 140°F, do not apply belt grease casually.
Various types of v-belt, should not be coated with rosin or sticky substances, but also to prevent v-belt from oil, butter and gasoline, otherwise, it will corrode the v-belt, and shorten the service life.
V-belt should be stored at a relatively low temperature, with no direct sunlight and no oil and corrosive fumes place.
Application
Lawn Care Equipment
Repair lawn equipment, snow removal machine
General Purpose
Repair band saw, box fan, drilling machine, trimmer
Automotive Repair
Replace the automotive belt
