RATTMMOTOR EBX1605 400mm CNC Linear Stage Actuator+Nema23 Stepper Motor

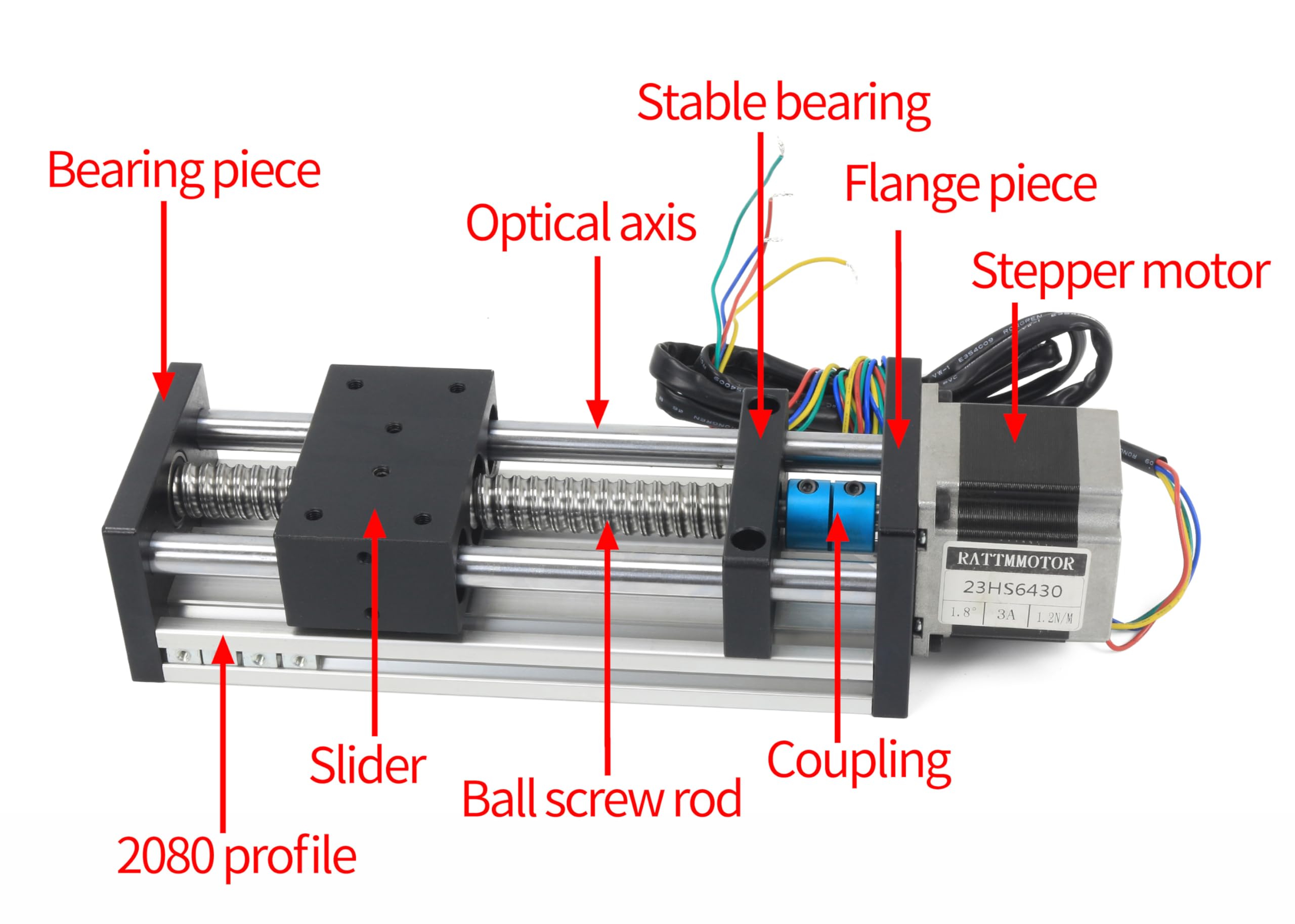

- 【Compact Structure】The base is 2080 profile, the tail end bearing piece, front end is equipped with Nema23 stepper motor and the flange piece connecting the motor, with the load-bearing slide table, the 1605 lead screw and the coupling, adding a stable bearing, and the double optical axis design. Working Length: 400mm/15.75inch.
- 【Flexible Installation】80mm aluminum profile base, M4 movable nut at the bottom, side mounting groove for easy fixing, M3 nut can be installed with limit, easy to install. This linear stage can be used in combination with multi-axis, horizontal cross, gantry type, three-axis type, four-axis type, etc.
- 【Stable Operation】 Stable bearings are added at the motor end to better maintain accuracy and improve operation stability. 80*50mm slider, embedded with linear bearing to ensure uniform axial force and ensure running positioning accuracy.
- 【High Precision】1605 ball screw, C7 grade screw accuracy, screw reciprocating accuracy of 0.01mm, repeat positioning accuracy of ±0.03mm, accurate positioning, good hardness, quiet operation, and long service life.
- 【Strong Load Capacity】Two 12mm optical shaft transmission, double shaft support load is larger, the horizontal load is 50KG/110.23Ib, and the vertical load is 10KG/22.05Ib. It is suitable for lathes, CNC machine tools, machining, mechanical equipment, automation devices and other industrial automation fields.
| Manufacturer | RTM |
| Brand | Rattmmotor |
| Item Package Quantity | 1 |
| Material | Aluminum |
| Colour | 400mm |
| Item Weight | 8.83 pounds |
| Package Dimensions | 24 x 6.08 x 3.02 inches |
| Item model number | EBX1605J |
| Part Number | EBX1605J |
| Date First Available | 2020, September 3 |
| Product Type | Linear Motion Guides |
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Washington
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
USD |
BRSWYGQKCJYRUCDO |
Category |
Power Transmission Products , Linear Motion Products , Linear Motion Guides |
Tags |
Estimated shipping
Select a product to estimate shipping.Nema23 Stepper Motor
Step angle: 1.8 degree
Motor flange size: 57mm
Motor length: 56mm
Holding torque: 1.2N.m
Current: 3A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor Inertia: 440g.cm
Lead wire: 4pcs
Wiring---- Red: A+ Green: A- Yellow: B+ Blue: B-

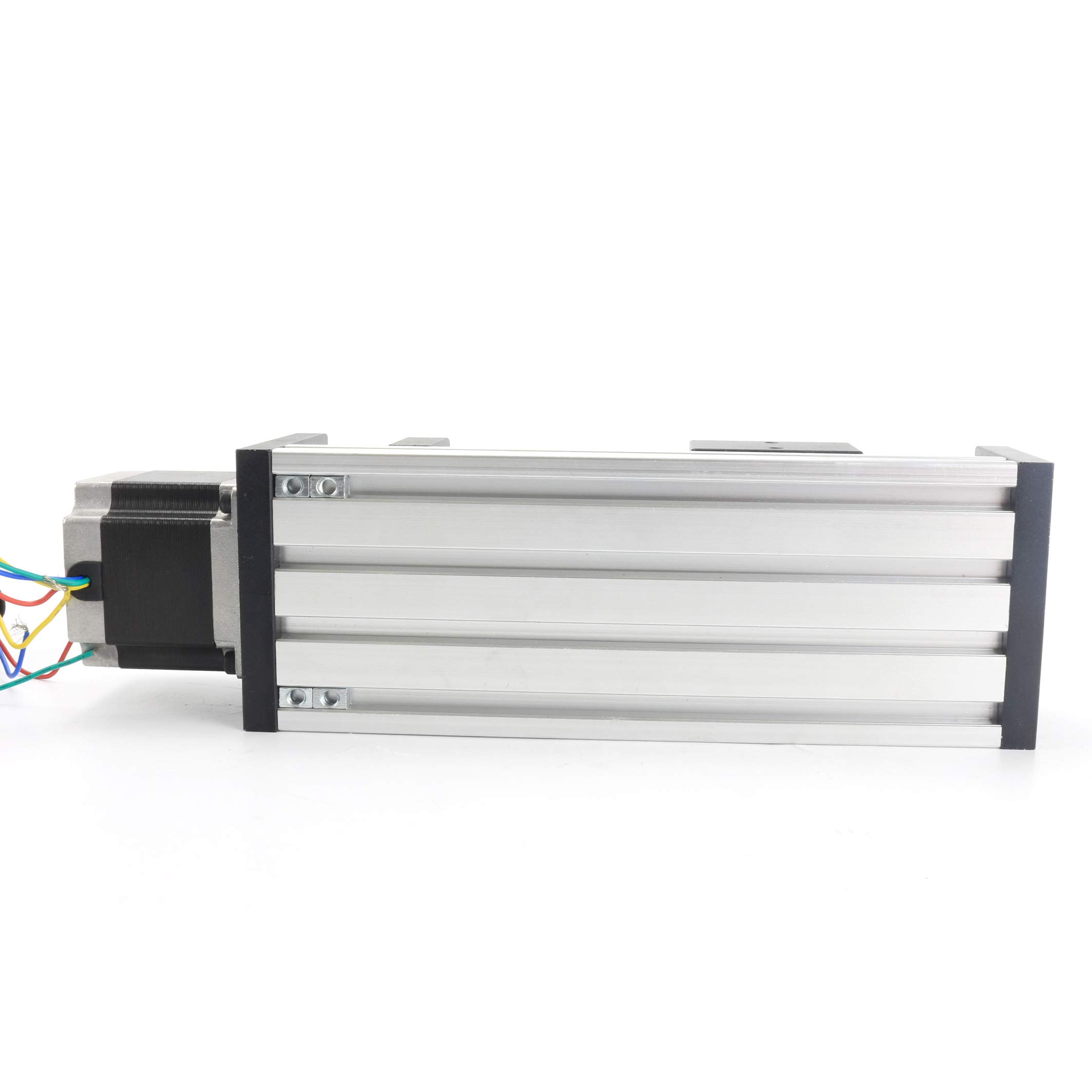

Aluminum Profile Base
The base is made of 2080 aluminum profiles, and the embedded mold design is used, which makes the sliding table more compact and compact.
Movable Nuts
Movable nuts on the back and sides for easy fixing and installation of limit switches

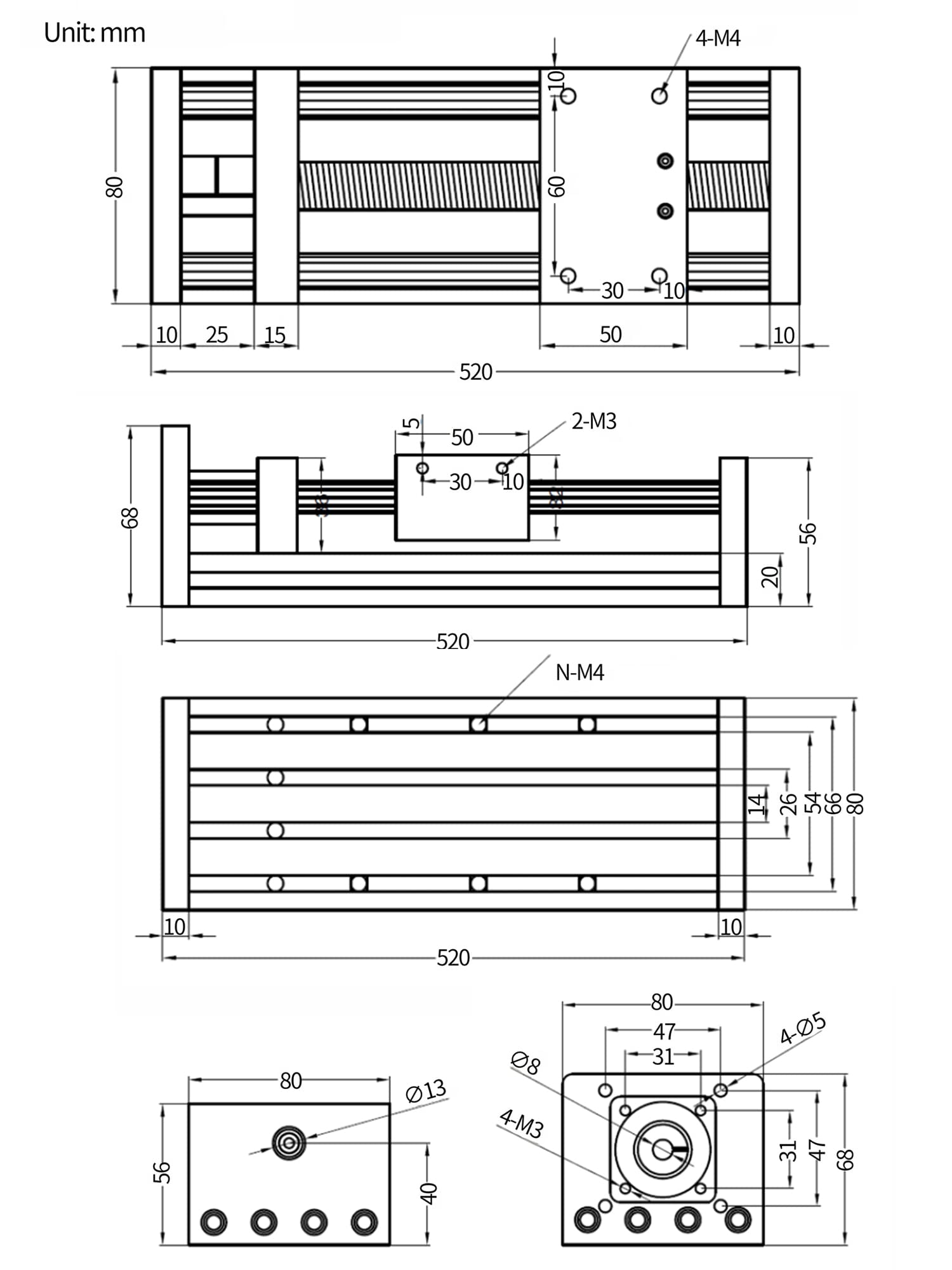

EBX1605-400mm Linear Stage Actuator
Effective stroke: 400mm / 15.75in
Total length: 577mm / 22.72in
Width: 80mm / 3.15in
Bearing Seat

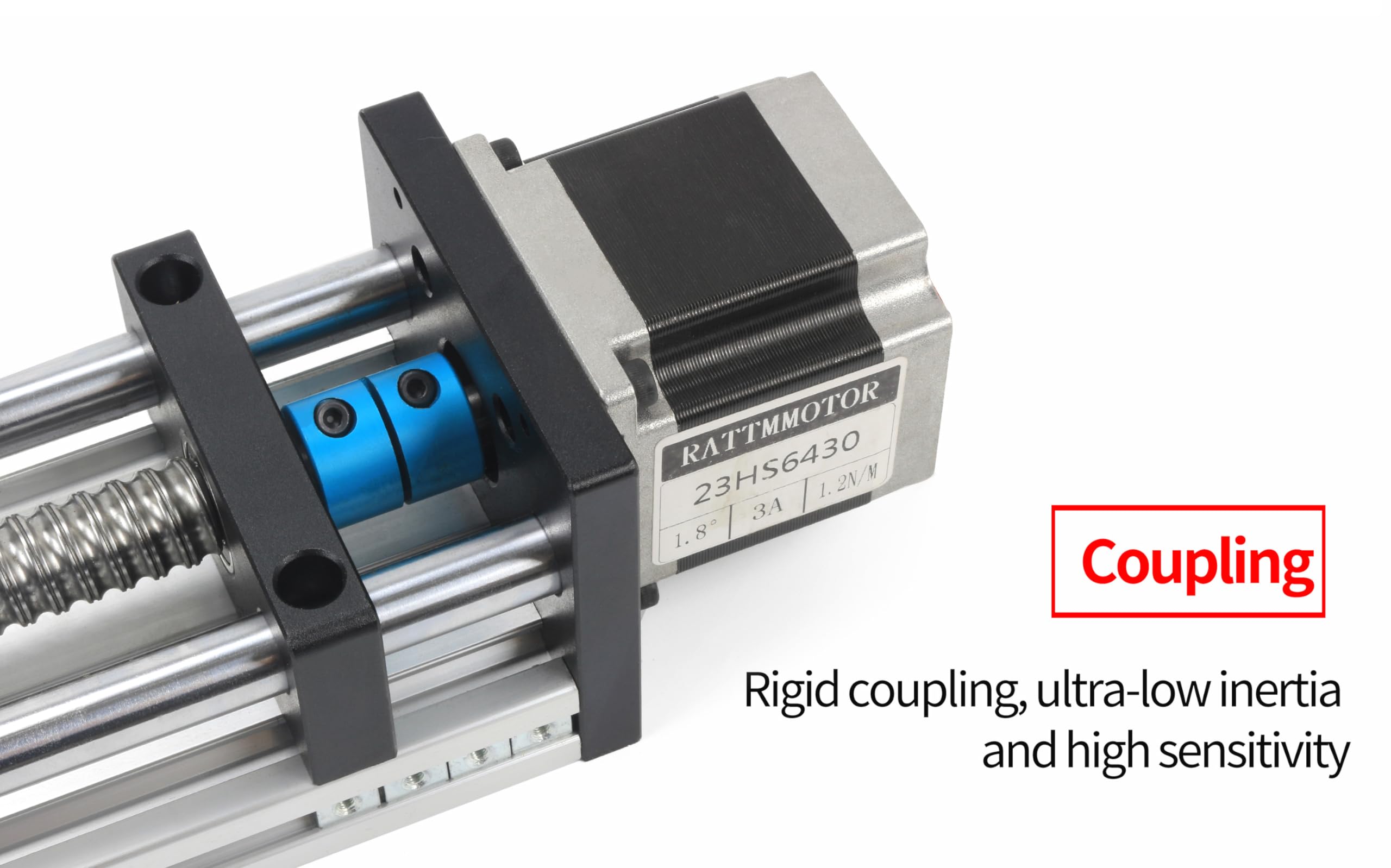

Reinforced bearing design and added stable bearing seat at the motor end can better maintain accuracy and improve running stability.
Load Force
Two 12mm double optical axis, with slicer and precision ball screw, horizontal load 50KG / 110.23Ib, vertical load 10KG / 22.05Ib. Linear guides are used as guides to ensure straight running and load capacity
1605 Ball Screw
High-precision 1605 type ball screw, with flange screw nut, the accuracy can reach 0.03mm, it can be used under high speed and large load, and the operation is very stable.
