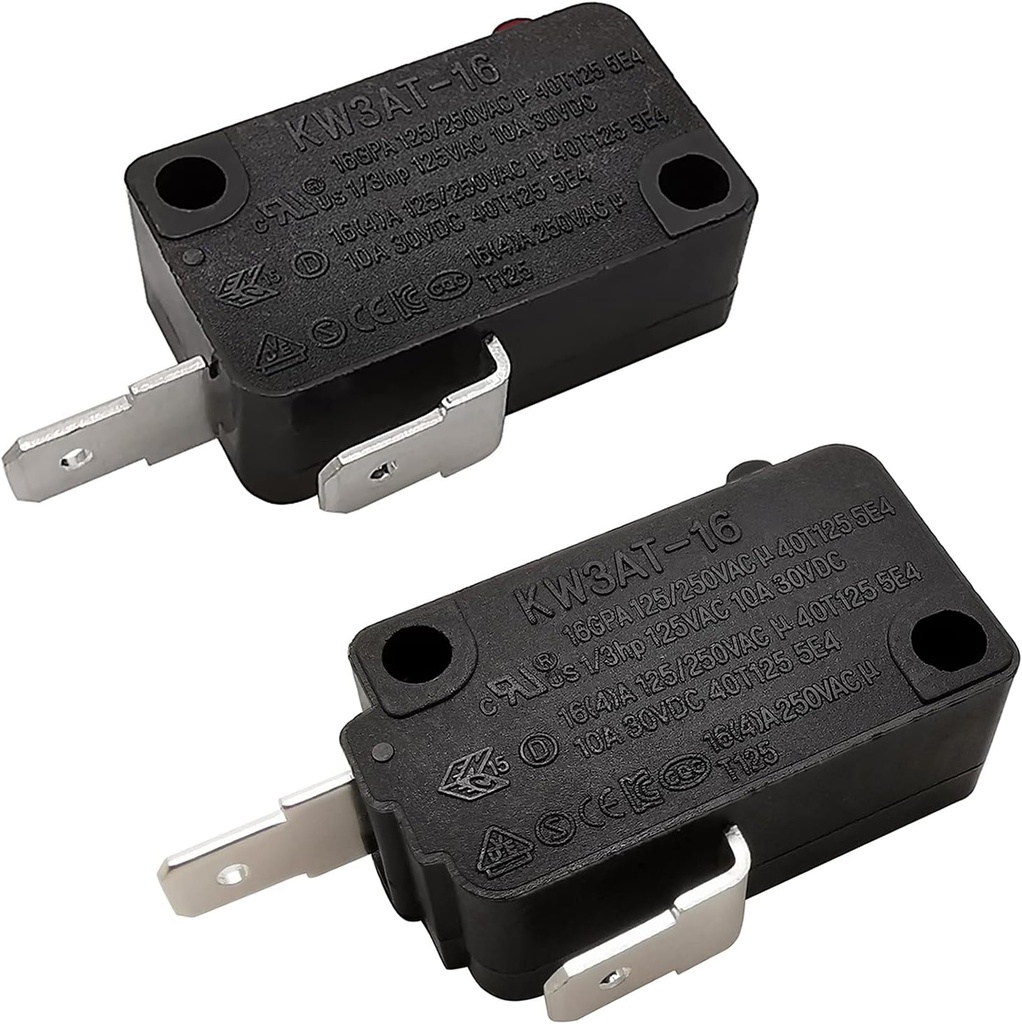

$ 1,409.99Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3AT-16 (Downward Compatible with KW3A-16), Normally Open + Normally Closed
13 sold in last 24 hours
- 【Normally Open Switch】Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Flat Terminal, Character: Normally Open (Normal time Terminal COM connect to Terminal NC, the Circuit is Open; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Closed)
- 【Normally Closed Switch】Model: KW3AT-16; Specifications: 16(4)A 125/250VAC u, 10A 30VDC, 40T125, 5E4; Outline Characteristic: Basic Form, Character: Normally Closed (Normal time Terminal COM connect to Terminal NC, the Circuit is Closed; When pressed the button, Terminal COM connect to Terminal NO, the Circuit is Open)
- 【How to Distinguish】Normally Open Switch is Flat Terminal, Relatively Short; Normally Closed Switch is Basic Form, Relatively Long
- KW3AT-16 has a maximum temperature resistance is 125 ℃ and KW3A-16 has a maximum temperature resistance is 105 ℃, Other electrical performances are the same, so KW3AT-16 is an upgraded version of KW3A-16, which is more competent in harsh working environments than KW3A-16
- 【Compatible with Most of Microwave Oven】If the microwave will not turn or heat properly, there could be an issue with the door switch, a new switch can return the microwave oven to normal operation
- 【Package Includes】1x Normally Open Switch + 1x Normally Closed Switch
| Main Specification | |
|---|---|
| Manufacturer | Hiqltyla |
| Unit Count | 1.0 Count |
| Item dimensions L x W x H | 1.09 X 0.63 X 0.41 Inches |
| Control Method | Touch |
| Contact Material | Plastic |
| Contact Type | Break |
| Current Rating | 16 Amps |
| Operating Voltage | 250 Volts |
| Terminal | Quick Connect |
| Circuit Type | 2-Way |
| Actuator Type | Push Button |
| Brand | Hiqltyla |
| Number of Items | 2 |
| Product information | |
| Item model number | 1x Normally Open + 1x Normally Closed |
| Operation Mode | Manual |
| Product Dimensions | 1.09 X 0.63 X 0.41 Inches |
| Color | 1x Normally Open + 1x Normally Closed |
| Connector Type | Quick Connect |
| Mounting Type | Door Mount |
| Technical Details | |
| Item Weight | 0.317 Ounces |
| Part Number | Kw3at-16 No + Kw3at-16 Nc |
| Batteries Required? | No |
| Batteries Included? | No |
| International Protection Rating | Ip54 |
| Number of Positions | 2 |
| Wattage | 4e+3 |
| Connectivity Protocol | X-10 |
| Others | |
| Product Type | Electronic Switch |
